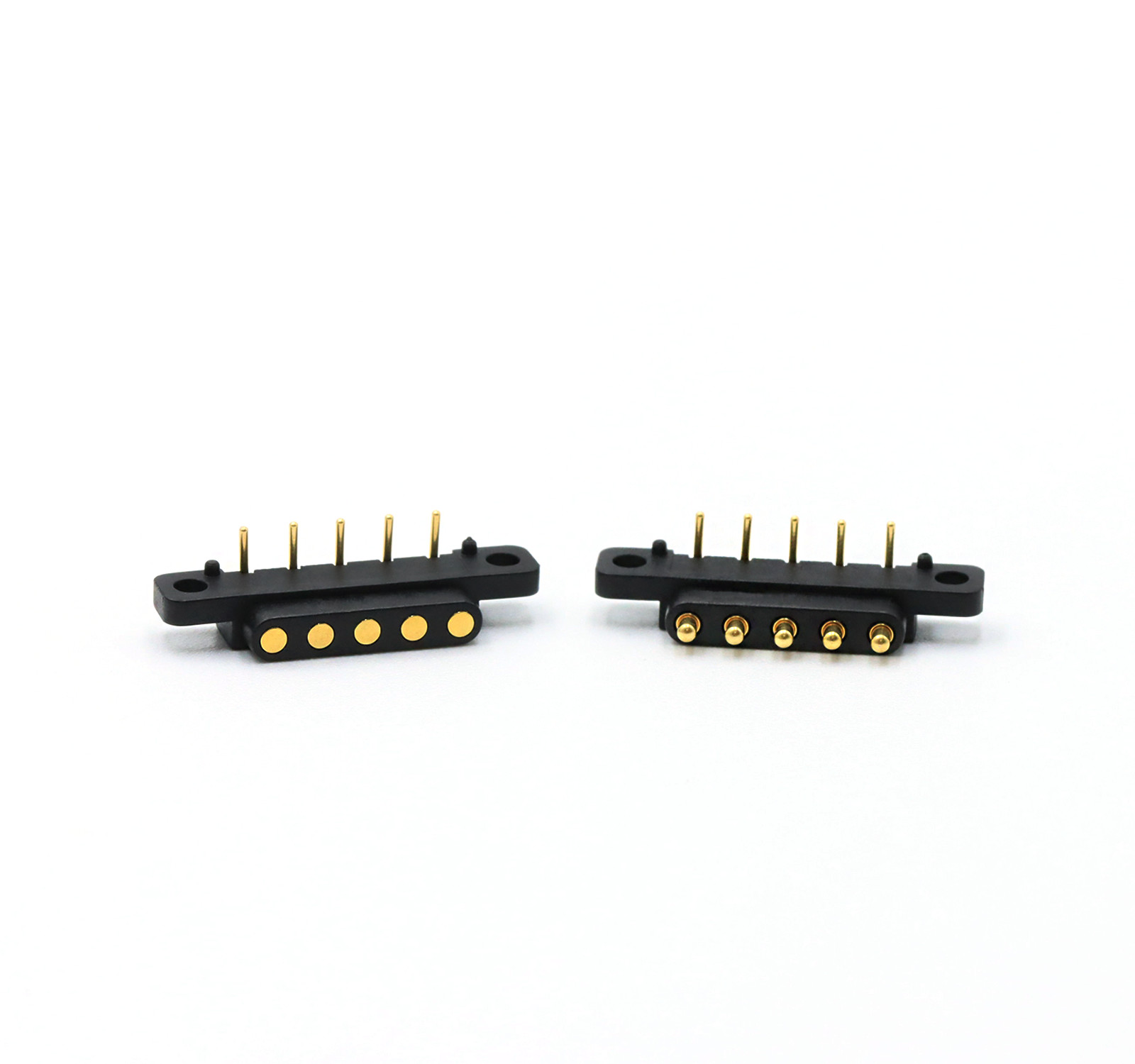

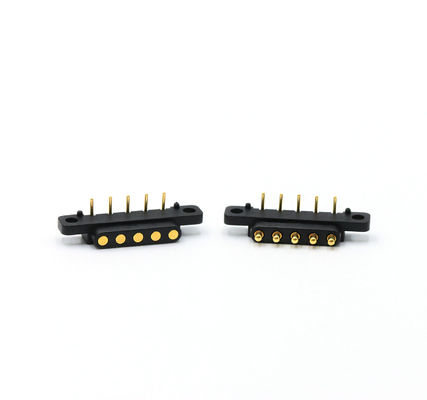

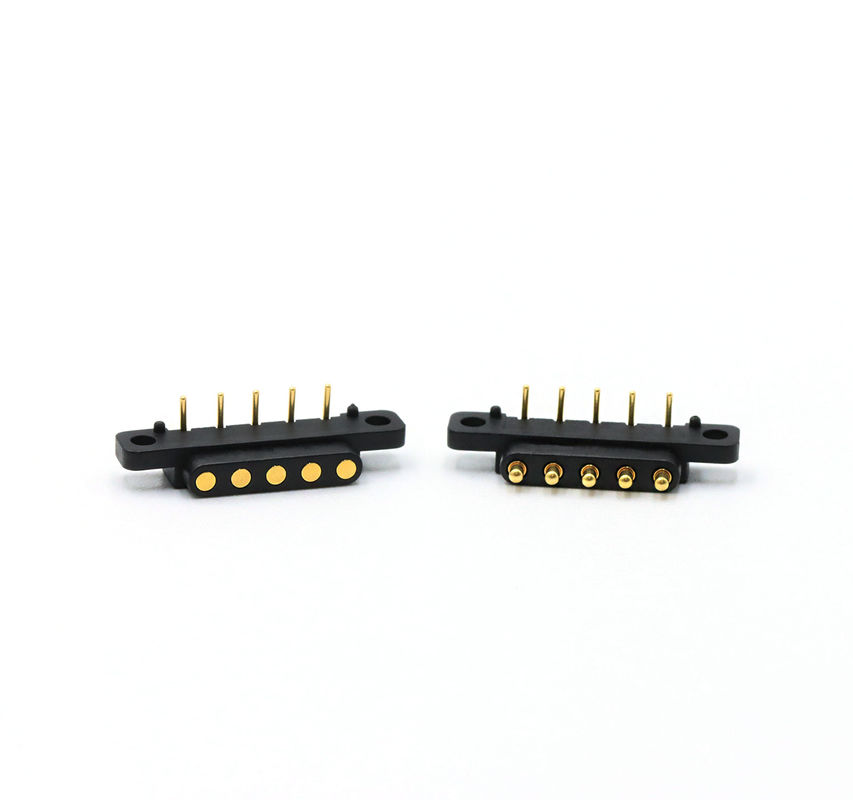

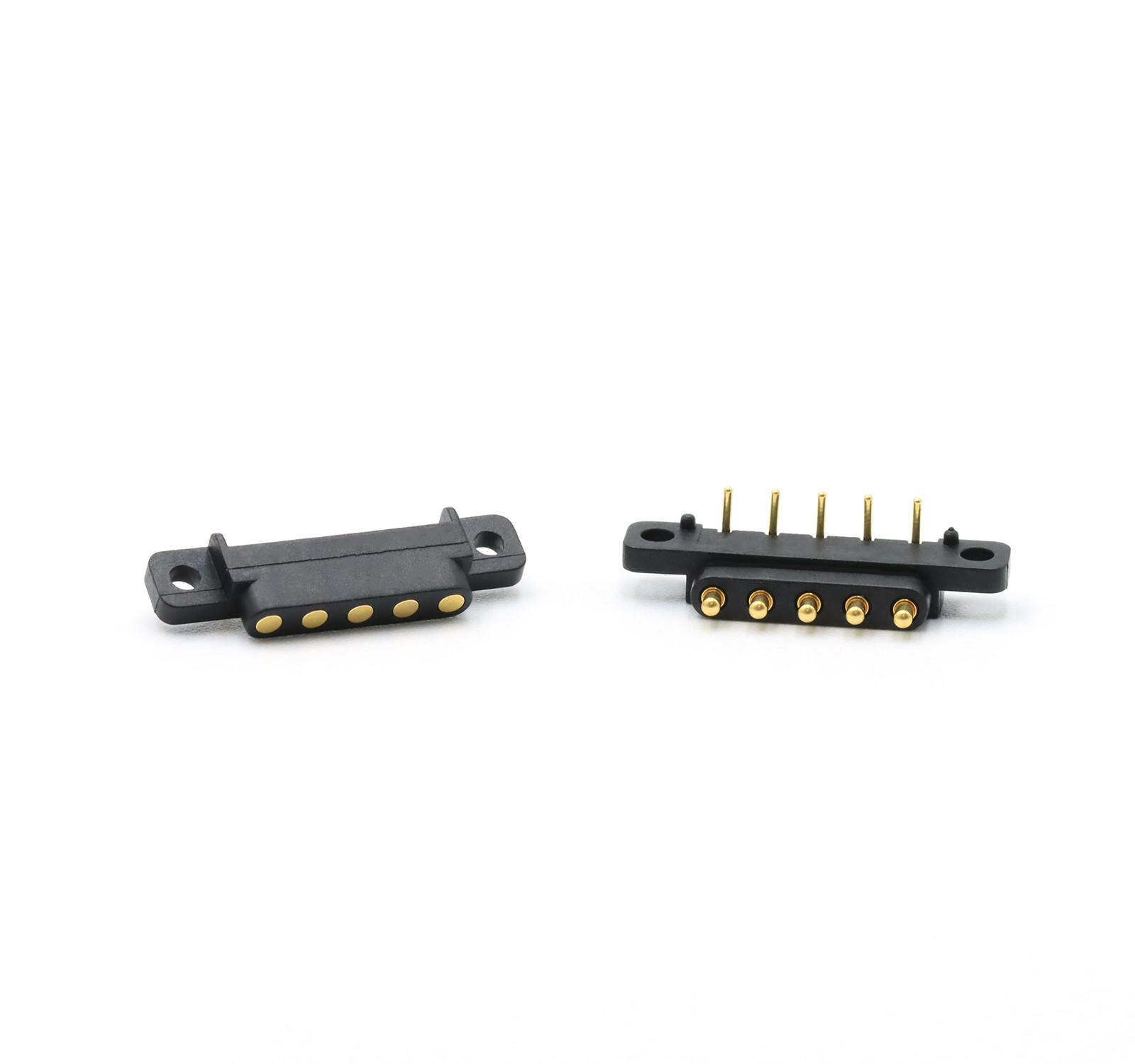

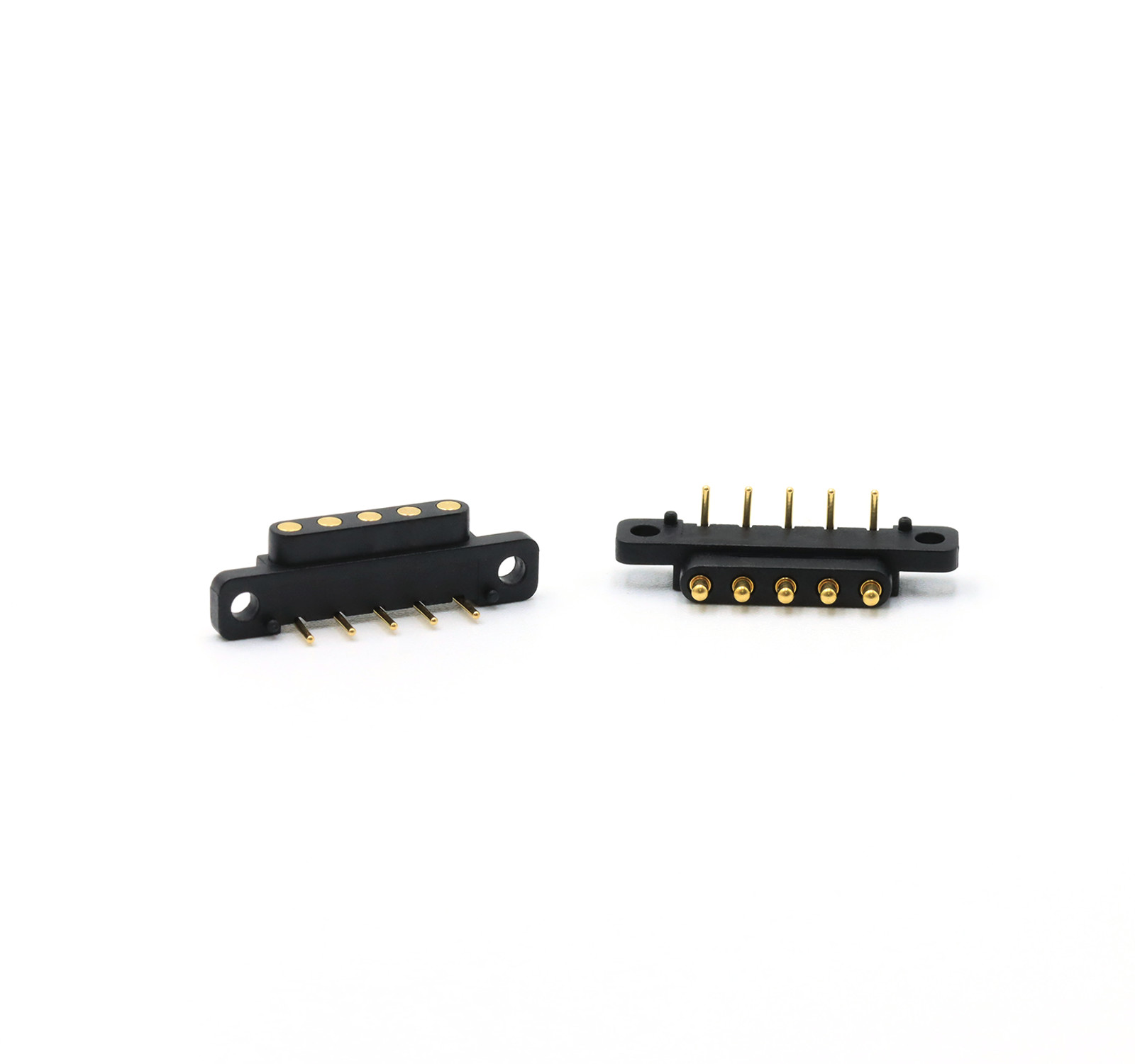

2.54mm pitch 5pin Bended Spring Loaded Pogo Pin Connector Right Angle SUS304.
Union Precision Electronic LIMITED(UPE) is professional custom manufacturer in connector including POGO PIN, POGO PIN connector with housing, It is one of the most competitive company in the field of spring loaded connector in China.
We provide many series of spring-loaded connectors Spring loaded pin, the spring-loaded connector is a special type of contact technology . This reliable technology has been used by many world-class customers and applied for many kinds of electronic products, such as cell phones, GPS, notebooks PC, hearing aids, smartwatch
Our products are mainly exported to Europe, the United States, Canada, Asian developed countries and regions.
Pogo Pin Connector consists of 6 parts:Plunger,Barrel,Spring,Ceramic beads,housing,Cap
Note:
|
Product Name
|
Pogo Pin Connector
|
|
Pin
|
5Pin
|
|
Type
|
Right Angle
|
|
Material
|
Lead-free C6801,Brass C3602,SUS304,Black HTN
|
| Finish |
Au plating, Ni plating
|
|
Spring force
|
80g+/-20g at working storke
|
|
Working torke
|
1.2mm
|
|
Full storke
|
1.4mm
|
|
Voltage
|
12V
|
|
Current
|
3.0A Max.
|
|
Contact resistance
|
50mΩ Max (PIN).
|
|
Salt spray test
|
48 H
|
|
Package
|
PE bag inside, carton outside or per our customers needs
|
Male Pogo Pin Connector Drawing Size:
Female Pogo Pin Connector Drawing Size:
Pogo Pin Connector Parameter Performance
|
Name of Parts
|
Parameter performance table
|
|
Barrel Materia
|
Brass
|
Beryllium copper
|
Phosphor Bronze
|
|
|
Plunger Material
|
Brass
|
Beryllium copper
|
Phosphor Bronze
|
Stainless steel
|
|
Spring options
|
Stainle
|
Music wire
|
|
|
|
Plating requirements
|
Gold-Au
|
Silver-Ag
|
Palladium-Nickel
(Pd-Ni)
|
|
|
Rated Current
|
1A, 2A, 3A ,5A,15A or 30A (different structures)
|
|
Rated Voltage
|
DC 12V 24V
|
|
Contact Resistance
|
30mΩ 50mΩ Max. (stillness)
|
|
Life test
|
50,000 cycles Min. 1000,000 cycles Max
|
|
Reflow Temp.
|
265°, 4~5sec
|
|
POGO PIN Reliability Test
|
|
Retention Force
|
At rated cycling of 500±50 per hour,50,000 cycles minimum
|
|
Humidity
|
EIA-364-31,Test method II, Condition A Subject mated connectors to relative humidity of 90% to 95%RH and a temperature of 40℃ ± 2℃ relative humidity for 96 hour.
|
|
Resistance to Solder Heat
|
EIA-364-56,Procedure 5,Level 2 265℃+10/-0℃for 30 to 35 seconds
|
|
Salt Spray
|
EIA-364-26,Test condition B Subject mated connectors to 5±1% salt-solution
concentration, 35+1℃/-2℃ for 48 hours.
|
|
Spring force test
|
Normal Force Test Procedure,100g±20g at working height
|
|
Temperature Life
|
EIA-364-17,Test method A,condition 4,Test time condition A Subject mated
connectors to 85℃± 2℃ for 96 hours.
|
|
Solderability
|
EIA-364-52 Dip into the 265±5℃, 60/40±5% Sn/pb solder for 4.0~5.0 second
|
|
Contact Resistance
|
EIA-364-23 Measure the contact resistance with a test current of 100 mA maximum and 20 mV voltage maximum
|
Avantages of UPE Spring-Loaded Connectors:
Spring-loaded connectors, commonly known as spring pins or pogo pins, offer several advantages:
Reliability: UPE Pogo pins using CLIP Technology provide a consistent and reliable electrical connection, even in environments subject to vibration and mechanical shock.
Compact Design: Their small size allows them to fit into tight spaces, which is ideal for modern, compact electronic devices.
Flexibility: Pogo pins can adapt to surface variations, ensuring a stable connection even if the mating surfaces are not perfectly aligned.
Ease of Use: They are user-friendly, with straightforward installation and maintenance.
Durability: They are designed to withstand numerous cycles of connection and disconnection, making them highly durable
Our Advantage and your choice:
.UPE professional customized high current Pogo Pin with 15A-30A series, it has been mass produced.
.UPE developed 2.54mm pitch standard male and female 2pin-40pin Pogo pin connector with SMT / DIP / Right Angle / Solder Cup.
.Pogo Pin Life test up to 1000,000 cycles.
.All products can pass HF, RoHS REACH standard.
.100% electrical test provided report before delivery the goods.
.Custom of various shapes is available, small structure and high current.
Why do customers choose UPE?
1. Professional customization service
2. Fast sample production capability
3. Strict quality control system
4. Processing with imported components
5. High-precision test equipment
6. Reasonable cost control procedures
Some of customized Pogo Pin Connectors for reference:
Product application field:
Pakaging & shipping
