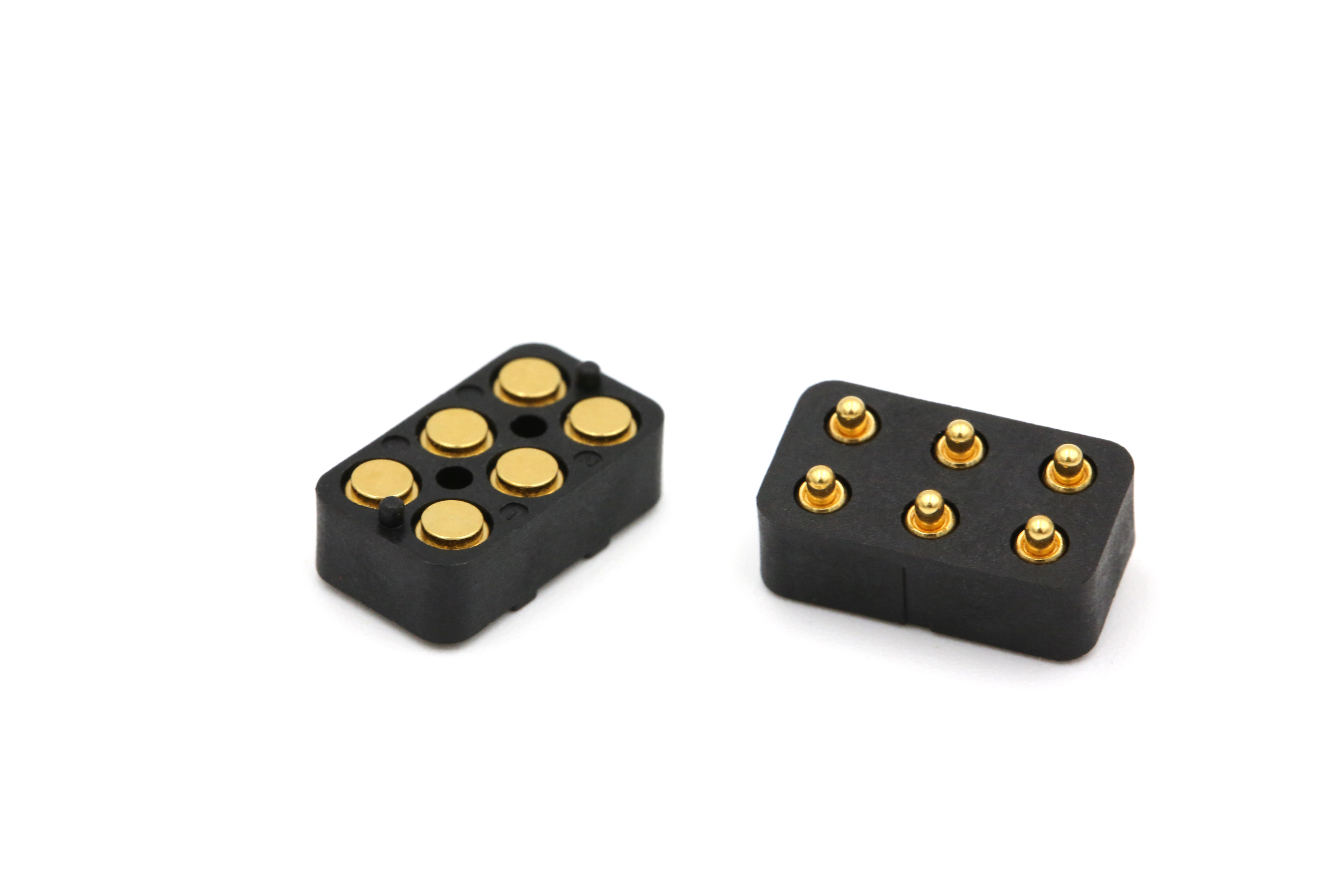

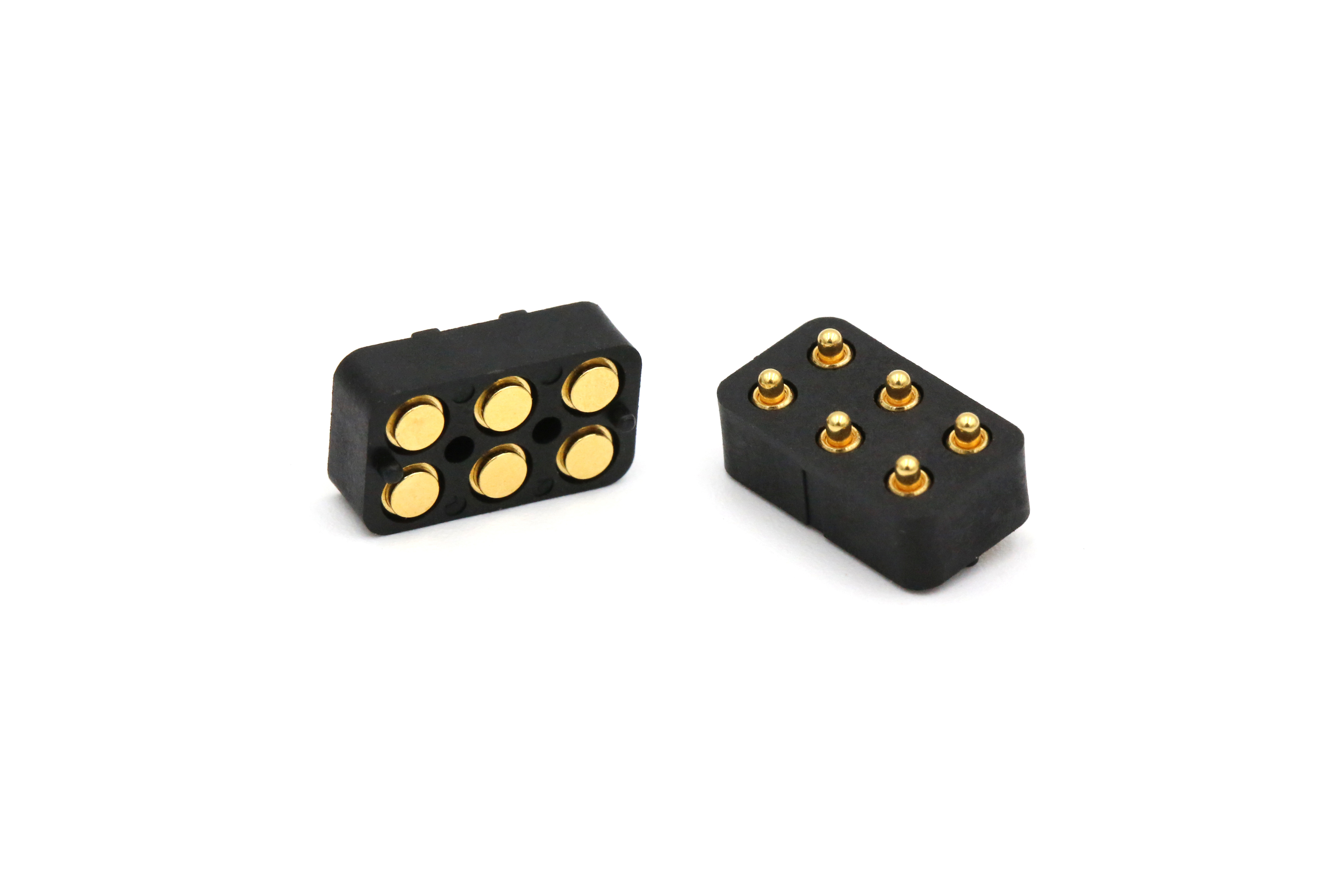

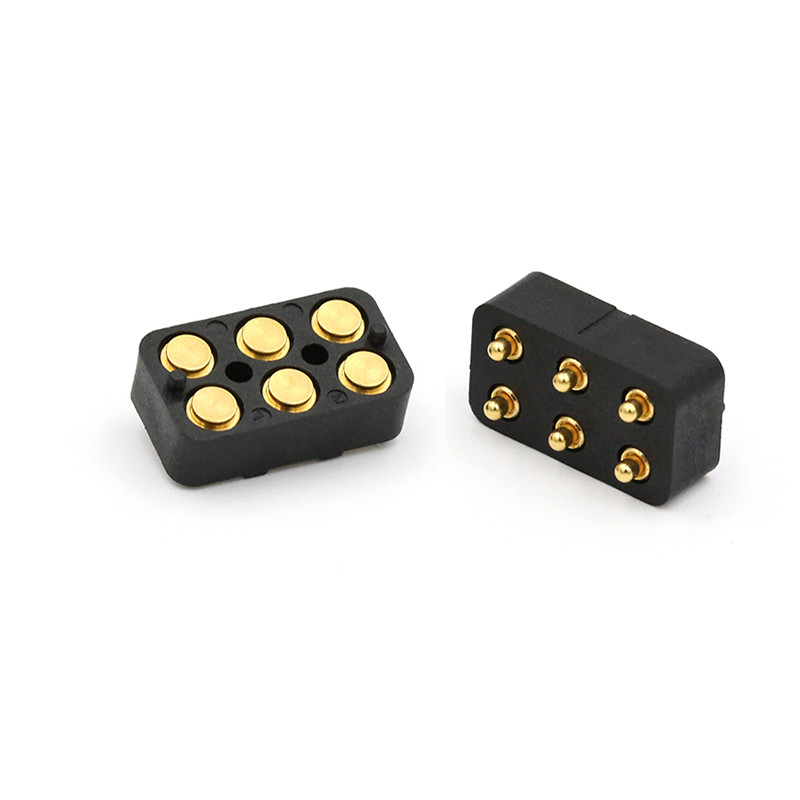

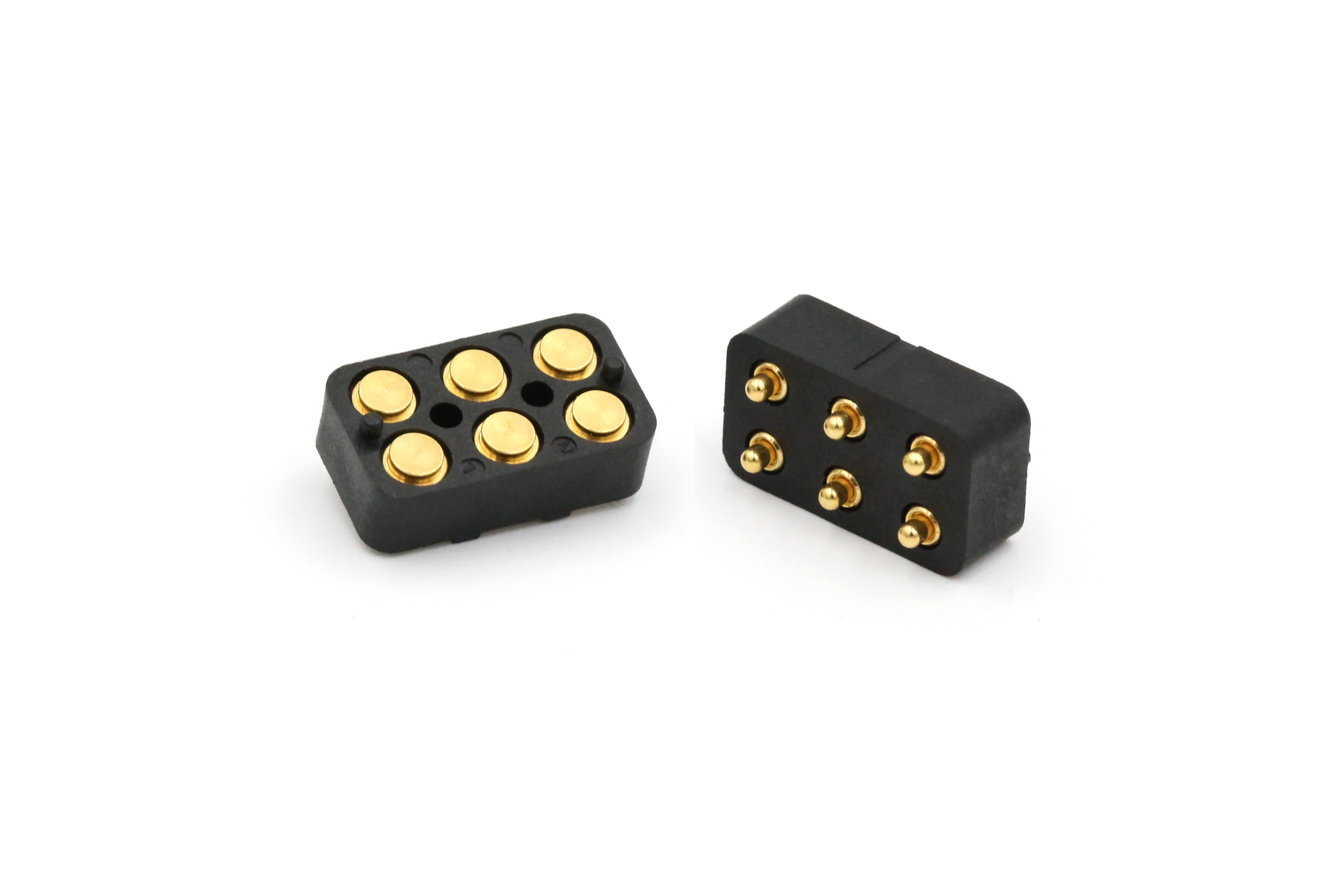

Customized 6pin male and female spring pogo pin connector for medica product.
Union Precision Electronic Limited (UPE) is a professional custom manufacturer specializing in Pogo Pins and Pogo Pin connectors with housings. The company is recognized as one of the most competitive suppliers in the spring-loaded connector industry in China, catering to a wide range of high-tech applications.
UPE has grown into a leading manufacturer of Pogo Pins and spring-loaded connectors, leveraging advanced production technology and strict quality control to serve global industries.
We aim to meet customer needs with safe and reliable products. We also provide customized services and as we have many experienced designers in POGO PIN, we can quickly customize the sample of stable quality to meet customer design needs with a short product development cycle.
Avantages of UPE Spring-Loaded Connectors:
Spring-loaded connectors, commonly known as spring pins or pogo pins, offer several advantages:
Reliability: UPE Pogo pins using CLIP Technology provide a consistent and reliable electrical connection, even in environments subject to vibration and mechanical shock.
Compact Design: Their small size allows them to fit into tight spaces, which is ideal for modern, compact electronic devices.
Flexibility: Pogo pins can adapt to surface variations, ensuring a stable connection even if the mating surfaces are not perfectly aligned.
Ease of Use: They are user-friendly, with straightforward installation and maintenance.
Durability: They are designed to withstand numerous cycles of connection and disconnection, making them highly durable
Our Advantage and your choice:
.UPE professional customized high current Pogo Pin with 15A-30A series, it has been mass produced.
.UPE developed 2.54mm pitch standard male and female 2pin-40pin Pogo pin connector with SMT / DIP / Right Angle / Solder Cup.
.Pogo Pin Life test up to 1000,000 cycles.
.All products can pass HF, RoHS REACH standard.
.100% electrical test provided report before delivery the goods.
.Custom of various shapes is available, small structure and high current.
Why do customers choose UPE?
✔ High Precision Manufacturing – Ensures consistent quality and durability
✔ Customization Capabilities – Tailored solutions for unique design requirements
✔ Competitive Pricing – Cost-effective without compromising performance
✔ Strong R&D Focus – Innovative designs for emerging tech applications
Spring-Loaded Pogo Pin Connector parameter performance
|
Name of Parts
|
Parameter performance table
|
|
Barrel Materia
|
Brass
|
Beryllium copper
|
Phosphor Bronze
|
|
|
Plunger Material
|
Brass
|
Beryllium copper
|
Phosphor Bronze
|
Stainless steel
|
|
Spring options
|
Stainle
|
Music wire
|
|
|
|
Plating requirements
|
Gold-Au
|
Silver-Ag
|
Palladium-Nickel
(Pd-Ni)
|
|
|
Rated Current
|
1A, 2A, 3A ,5A,15A or 30A (different structures)
|
|
Rated Voltage
|
DC 12V 24V
|
|
Contact Resistance
|
30mΩ 50mΩ Max. (stillness)
|
|
Life test
|
50,000 cycles Min. 1000,000 cycles Max
|
|
Reflow Temp.
|
265°, 4~5sec
|
|
POGO PIN Reliability Test
|
|
Retention Force
|
At rated cycling of 500±50 per hour,50,000 cycles minimum
|
|
Humidity
|
EIA-364-31,Test method II, Condition A Subject mated connectors to relative humidity of 90% to 95%RH and a temperature of 40℃ ± 2℃ relative humidity for 96 hour.
|
|
Resistance to Solder Heat
|
EIA-364-56,Procedure 5,Level 2 265℃+10/-0℃for 30 to 35 seconds
|
|
Salt Spray
|
EIA-364-26,Test condition B Subject mated connectors to 5±1% salt-solution
concentration, 35+1℃/-2℃ for 48 hours.
|
|
Spring force test
|
Normal Force Test Procedure,100g±20g at working height
|
|
Temperature Life
|
EIA-364-17,Test method A,condition 4,Test time condition A Subject mated
connectors to 85℃± 2℃ for 96 hours.
|
|
Solderability
|
EIA-364-52 Dip into the 265±5℃, 60/40±5% Sn/pb solder for 4.0~5.0 second
|
|
Contact Resistance
|
EIA-364-23 Measure the contact resistance with a test current of 100 mA maximum and 20 mV voltage maximum
|
Pogo Pin Connector consists of 6 parts:Plunger,Barrel,Spring,Ceramic beads,housing,Cap
