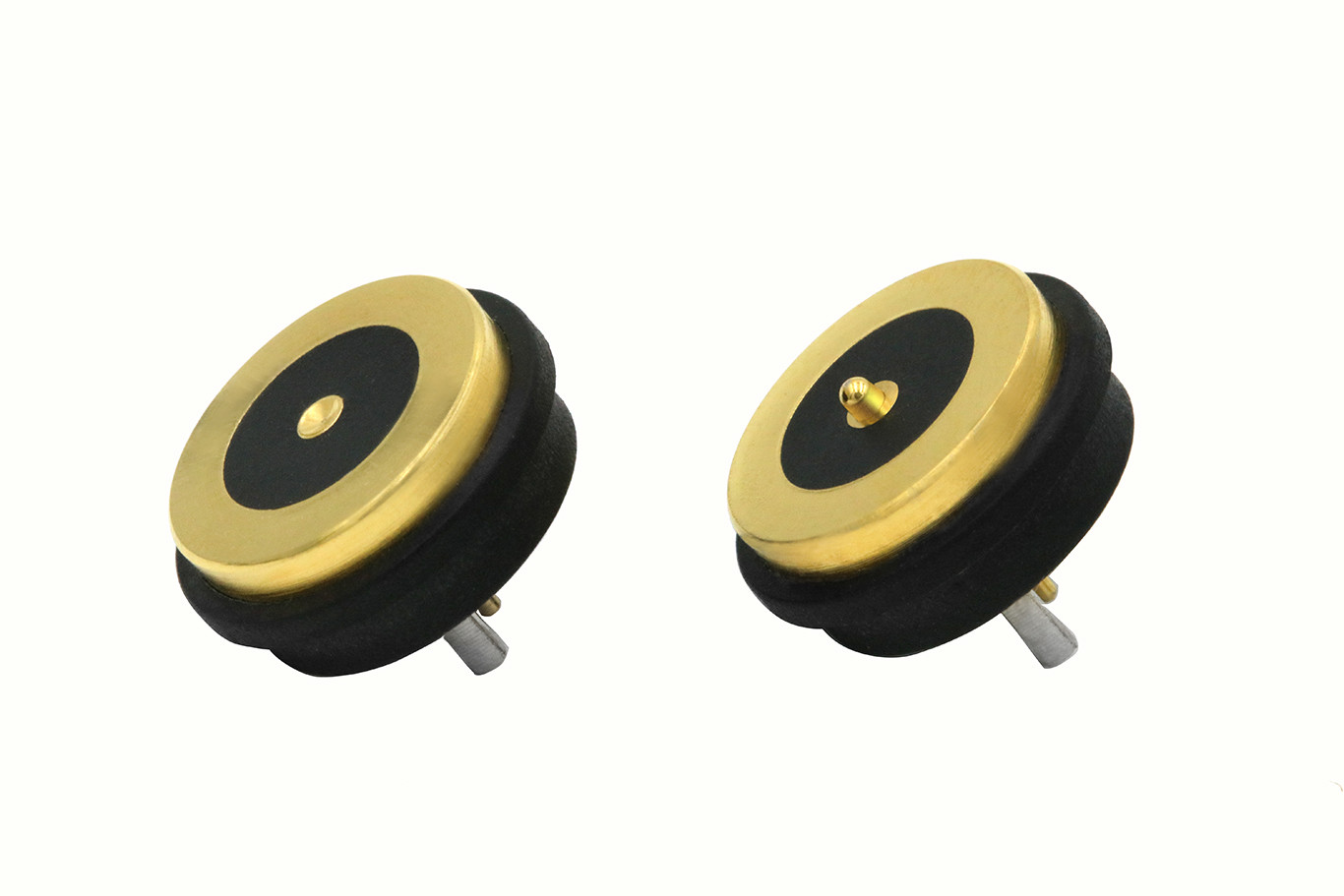

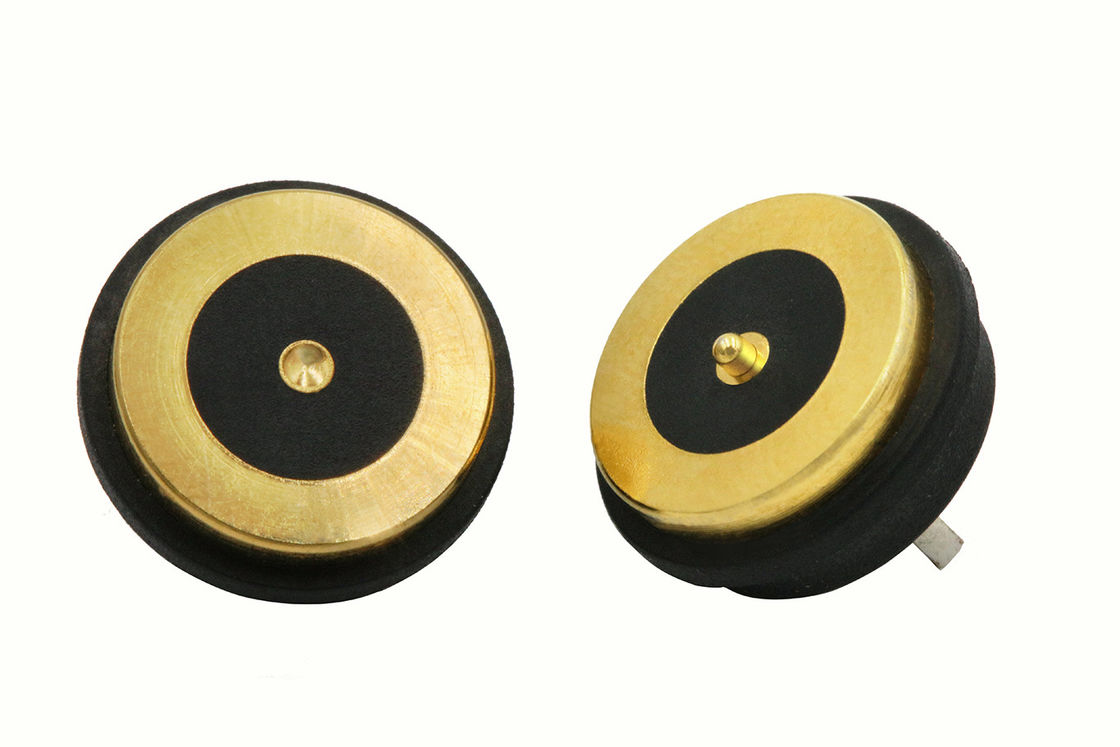

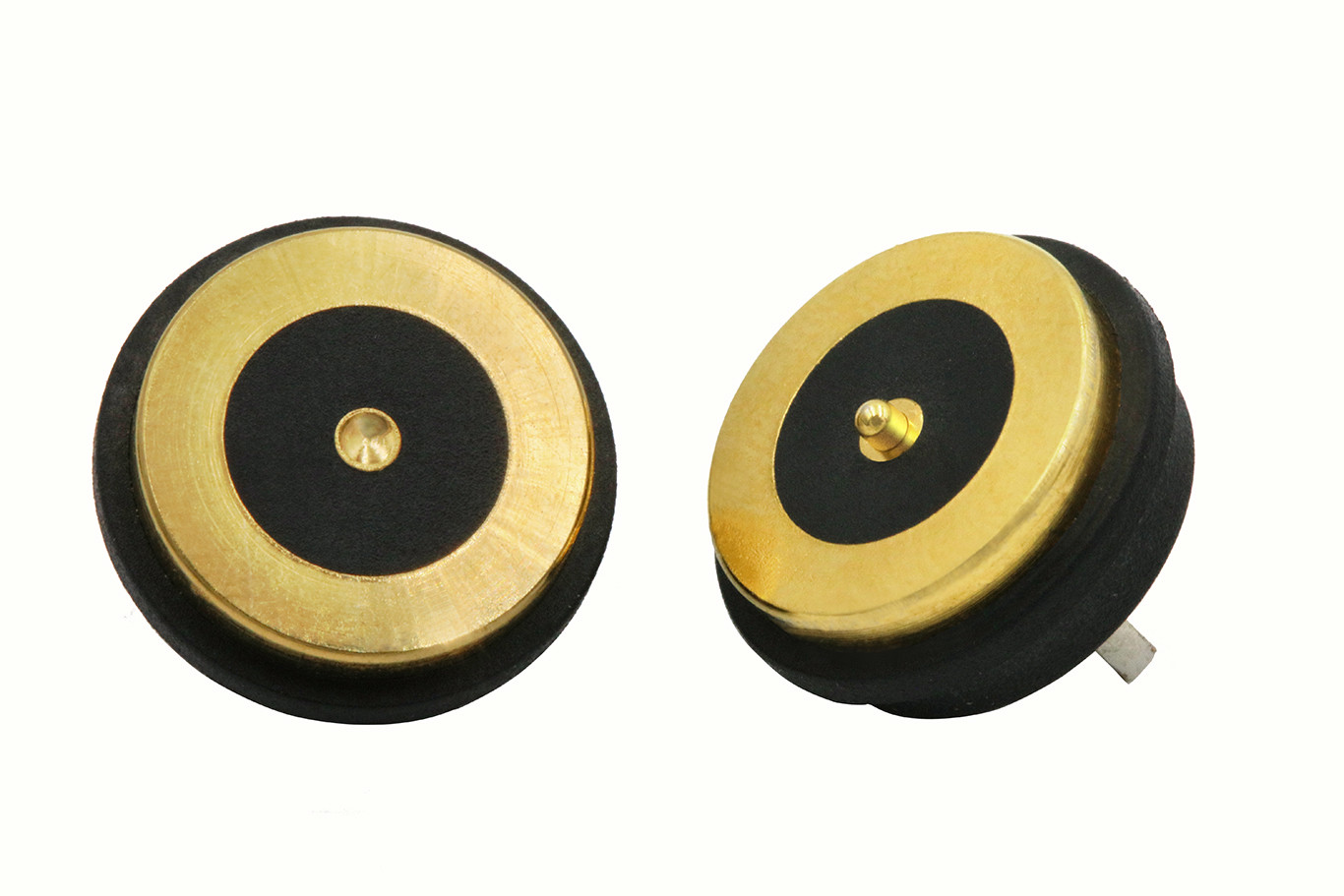

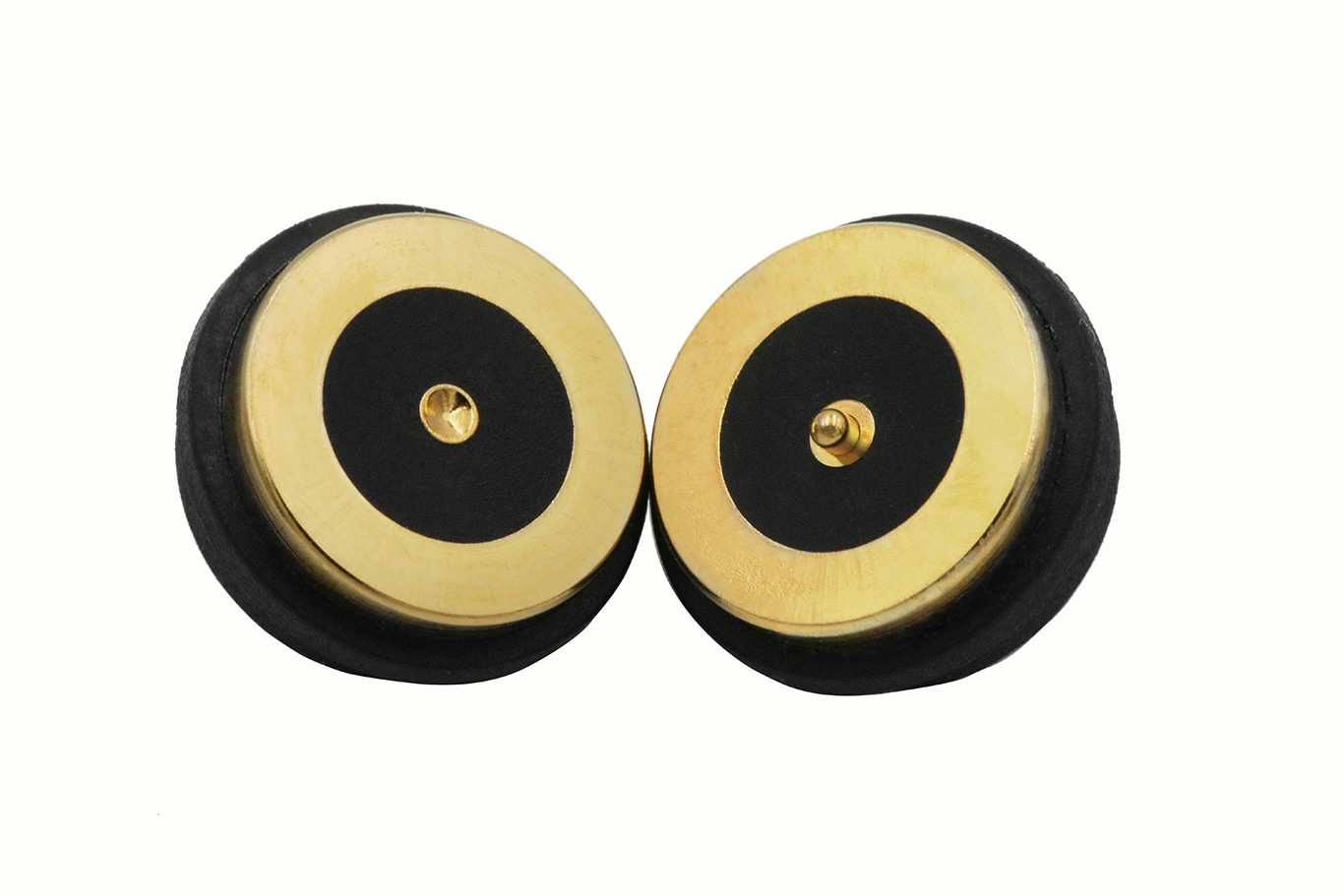

Gold Plating Waterproof Connectors Male And Female Magnetic DC Power Connector

Waterproof gold plating male and female DC power pogo pin magnetic connector.

UPE company is a professional manufacturer of waterproof magnetic connector,the magnetic connector is composed of Pogo Pin, Female Pin, Spring, Housing, Shell, Magnet.

Materials & Construction:

Pogo pin: Brass C3604,plating: 5μ" Min Au over 60~100μ" Ni (Gold over nickel for corrosion resistance).

Female pin: Same plating as pogo pin.

Spring: SUS 304 Stainless Steel + Au plating,ensures durability and conductivity.

Housing: Black HTN (High-Temperature Nylon) + 30% GF, UL94 V-0 flame retardant, high-temperature resistant.

Shell: Brass (Au plating) or SUS304 Stainless Steel, corrosion-resistant, with optional gold plating for conductivity.
Magnet: NdFeB N52 (Nickel-plated),high-strength neodymium magnet with Ni coating for environmental protection.

Mechanical:

Spring force: 80g±20g,at 1.0mm working storke.

Full storke: 1.2mm,maximum compression distance.

Mechanical life:50000 cycle Min..

Electrical:

Voltage:12 V.

Current: 3.0 A.

Contact resistance:50mΩ Max (PIN) .

Product Description:

ROHS or REACH compliant product, free from hazardous substances.

Sale spray test: 48H

UPE Company appears to be a professional manufacturer specializing in waterproof magnetic connectors, which are widely used in applications requiring reliable, secure, and water-resistant electrical connections. These connectors are popular in industries such as:

Key Features of UPE’s Waterproof Magnetic Connectors:
✔ Waterproof & Dustproof (IP67/IP68 rated) – Suitable for harsh environments.
✔ Magnetic Coupling – Ensures easy, secure, and quick connections.
✔ High Durability – Resistant to corrosion, vibration, and wear.
✔ High Current/Data Transmission – Supports power delivery and signal transfer.
✔ Versatile Applications – Used in consumer electronics, medical devices, marine equipment, and industrial machinery.

Potential Applications:
✔Consumer Electronics (smartphones, wearables, wireless charging)

✔Medical Devices (waterproof medical sensors, portable equipment)

✔Automotive & Marine (charging ports, LED lighting, underwater connectors)

✔Industrial & Robotics (waterproof machinery, drones, automation systems)

Male Magnetic Connector Size:

Waterproof FeMale Magnetic Connector Size:

Waterproof Magnetic Connector Parameter:

Advantages of Magnetic Connector:

●Humanize design of automatic adsorption connection experience;

●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;

●Life time: up to 100,000-200,000cycle;

●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);

●Fast charging time: 5A-10A magnet connector design withstands large current transmission;

●The appearance of the magnetic connector can be matched according to the design of the customer's  application device;

●Product anti-short circuit structure design and foolproof;

●Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission

FAQ

1.Why choose us ?
With 100% sincerity,our company will provide the best service for you whatever products or after sales.We will provide the most reasonable quotation and design high quality samples according to your drawings or requirements.We provide guarantee for every customer after sale.

2.Can you customize products for us?
We are very pleased to customize for you or design for you. Please provide us your drawing or samples, and tell us your special requirements about the products. We can customize as soon as possible according to your requirements.

3.How much will the sample cost?
If stock items, we provide samples to customers free of charge, but you should bear the freight.
If customize iterms, we will charge for properly cost and refund reasonable proportion of sample fee when you have order for us!

4.What about your delivery time?
The delivery time depends on the quantity and difficulty of the customer's order.Usually, the stock goods delivery within 3 days while customized products delivered within 2 week.

5.How bout your company quality control?
We will test and inspect the products to ensure the quality of the products to obtain your satisfaction.Quality is the most important in our company, from material to delivery, all will be double checked and company get IS09001 to ensure this.

Magnetic Connector Application:

How to place the magnetic cable connector order

* You send us drawing or sample

* We carry through project assessment

* We make the sample and send it to you

* You think the sample is good then place an order and pay us 30% deposit

* We start to make the product

* When the goods is done, we take photoes for your check and you then pay the balance

* We deliver the products to courier company

Payment Term: T/T,50% Deposit,50% Balance

Payment method: T/T,PayPal,OCBC

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable

Shipping
