IP68 Waterproof Magnetic Connector 12V 3A Magnetic Power Cable Connector For Medical Equipment

Brand Name:	UPE
Model Number:	LBX0020A / LBX0020B
MOQ:	5000
Price:	$1-$5
Packaging Details:	PE
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9002

Document:

LBX0020A(8.5mm）(1).pdf

Name:

Waterproof Magnetic Connector

Material:

PVC, NdFeB N52, Brass

Spring Force:

80g±20g,at 1.0mm Working Stroke

Mechanical Life:

10000 Cycle Min.

Volatge:

12V

Current:

Color:

Black

Cable Length:

1000mm

Contact Resistance:

50mΩ Max (PIN)

Salt Spray Test:

48H

Supply Ability:

5KPCS/Day

Highlight:

IP68 Waterproof Magnetic Connector

Waterproof Magnetic Connector 12V

3A Magnetic Power Cable Connector

Product Description

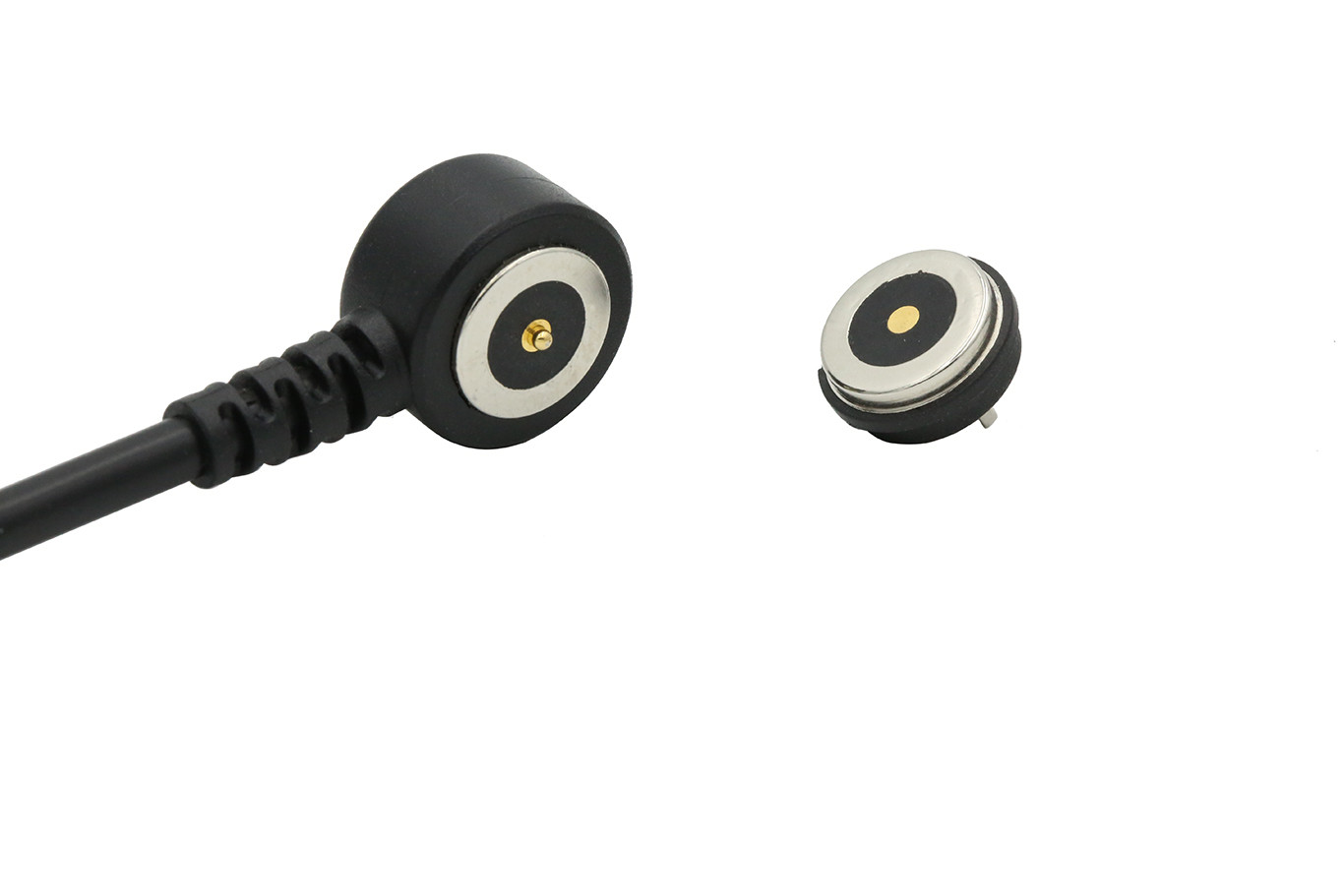

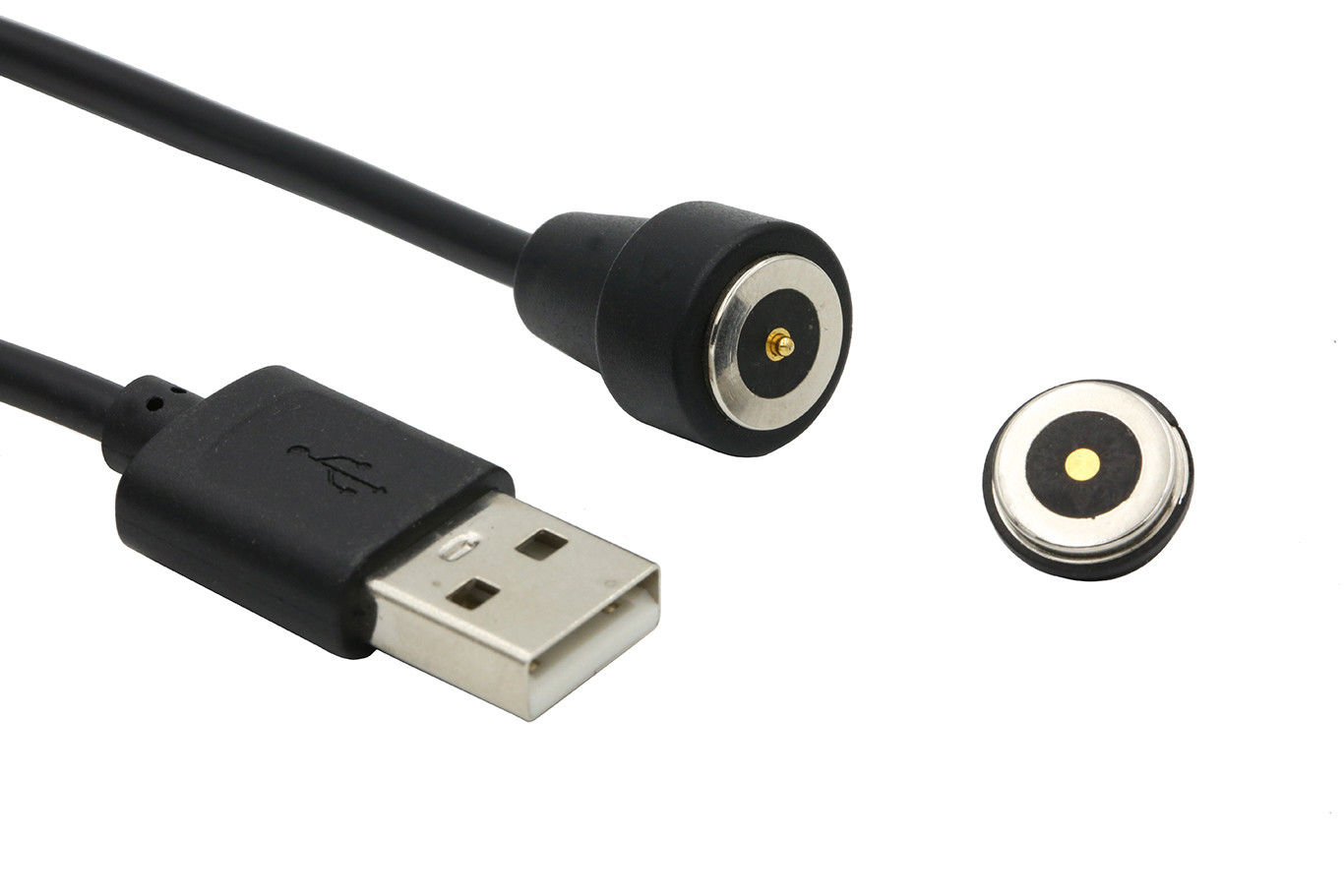

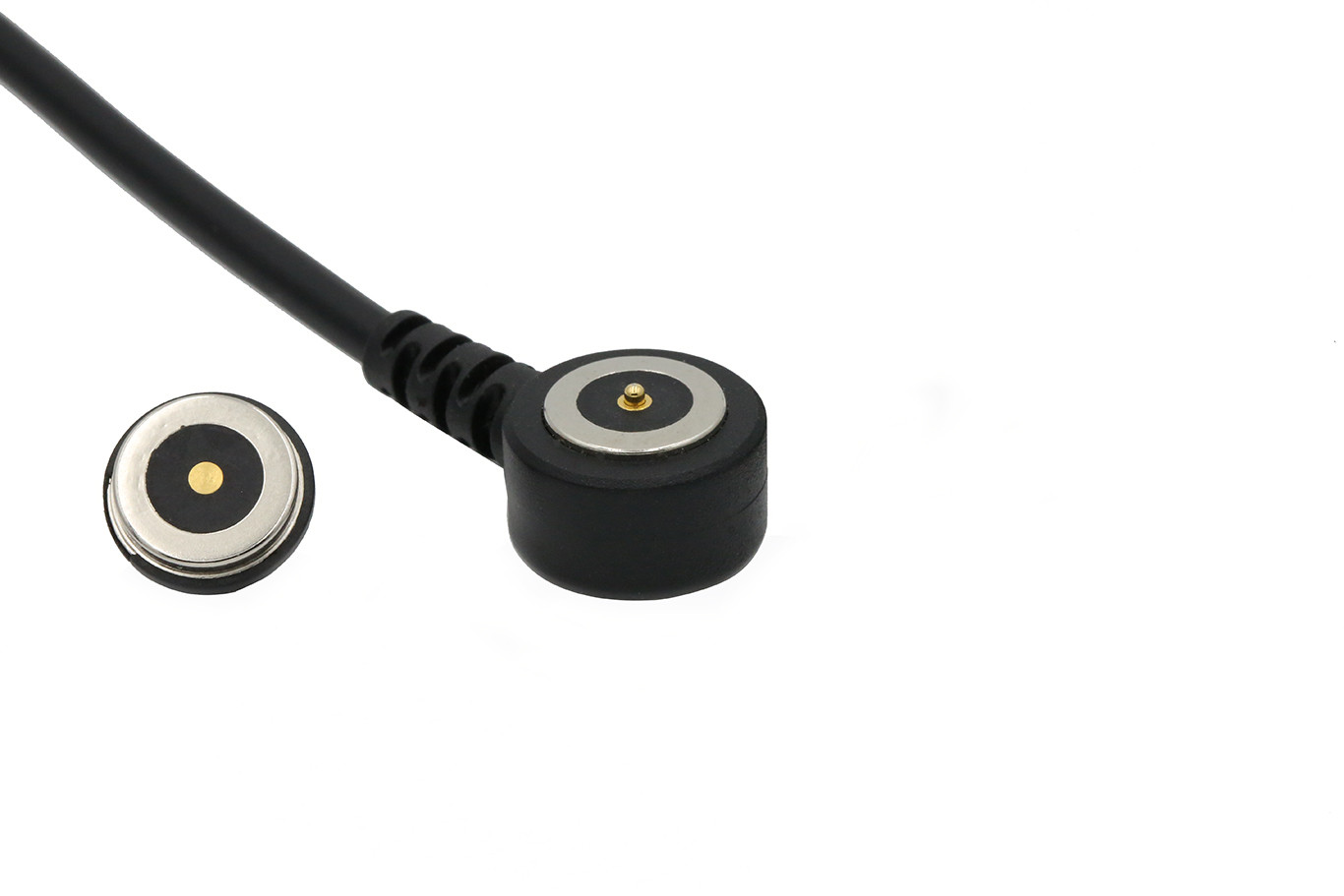

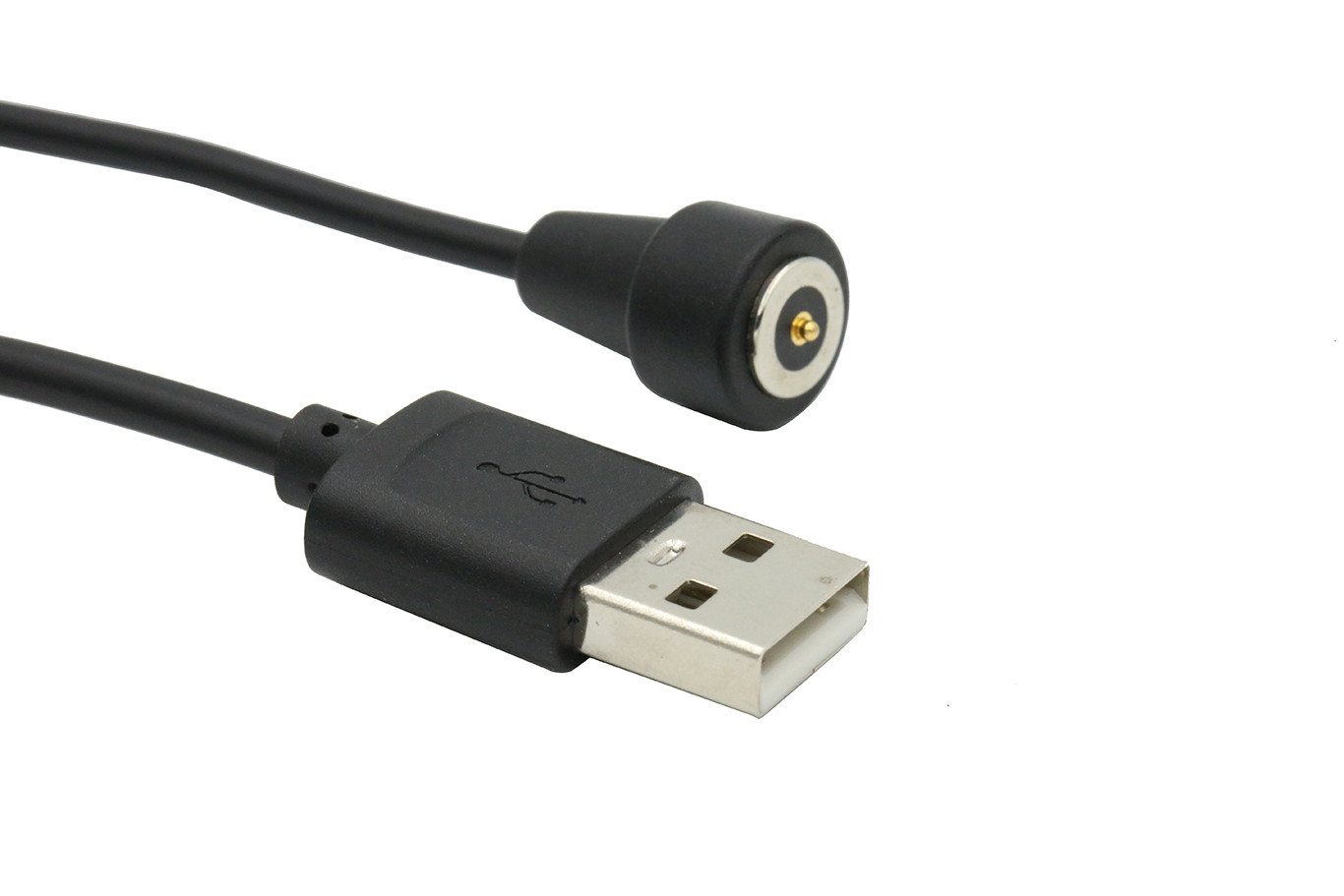

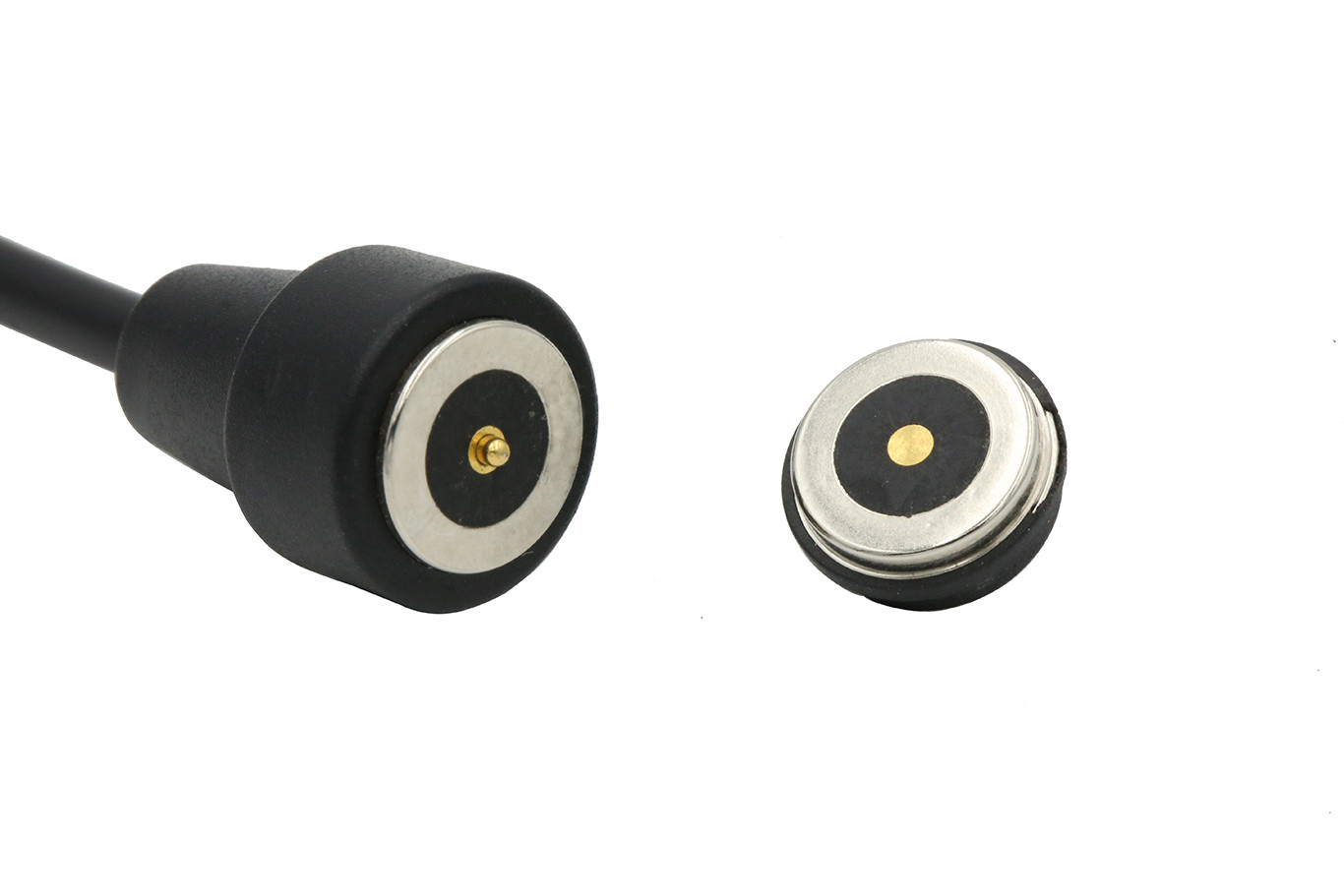

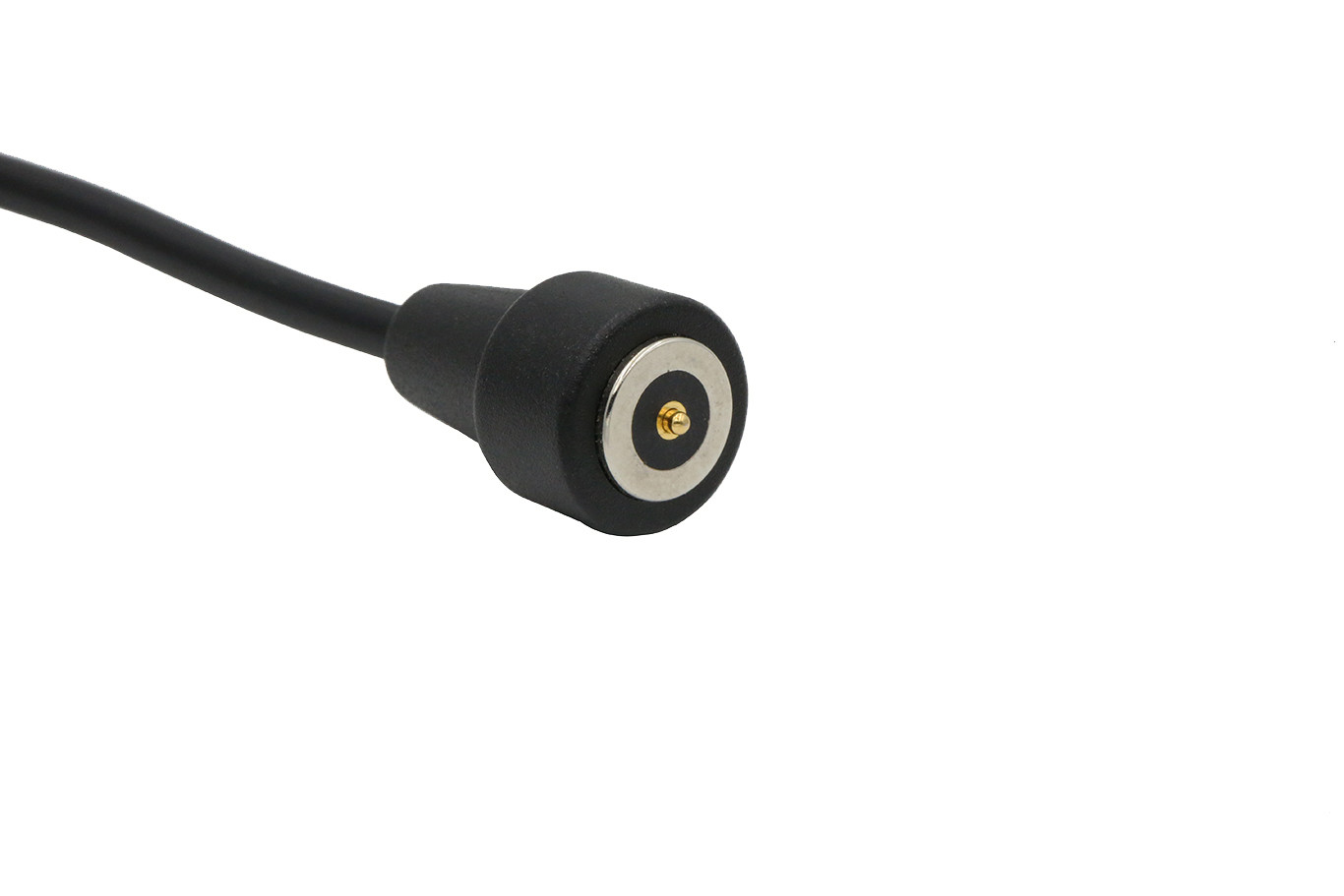

Waterproof IP68 Magnetic Power Cable Connector For Medical Equipment

Powerful 2 pogo pin magnetic circular cable connector,3A magnetic cable connector use for medical equipment

Waterproof magnetic cable connector size:

IP68 Waterproof Magnetic Connector 12V 3A Magnetic Power Cable Connector For Medical Equipment 0

IP68 Waterproof Magnetic Connector 12V 3A Magnetic Power Cable Connector For Medical Equipment 1

Advantages of Magnetic Connector:

●Humanize design of automatic adsorption connection experience;

●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;

●Life time: up to 100,000-200,000cycle;

●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);

●Fast charging time: 5A-10A magnet connector design withstands large current transmission;

●The appearance of the magnetic connector can be matched according to the design of the customer's application device;

●Product anti-short circuit structure design and foolproof;

●Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission

DC 1Pin Magnetic Connector Application:

IP68 Waterproof Magnetic Connector 12V 3A Magnetic Power Cable Connector For Medical Equipment 2

Why do customers choose UNION?

1. Professional customization service

Different products and solutions can be designed according to different customer needs

2. Fast sample production capability

Standard product 2-3 days sample, new custom sample 7 working days, mold opening product 12 days

3. Strict quality control system

The concept of quality first runs through the entire production and inspection process, and strictly controls each process to ensure the quality of customer satisfaction.

4. Processing with imported components

A small number of needle shafts are machined from imported precision lathes,
and most of the needle shafts are made of imported cold stamping for higher stability.

5. High-precision test equipment

Provide accurate and precise testing to continuously improve product quality

6. Reasonable cost control procedures

Save costs, eliminate waste, optimize processes, and highlight cost competitiveness

7. Product environmental standards

The product meets the EU ROHS standard and meets halogen

Any question, please send to union@upetech.net
