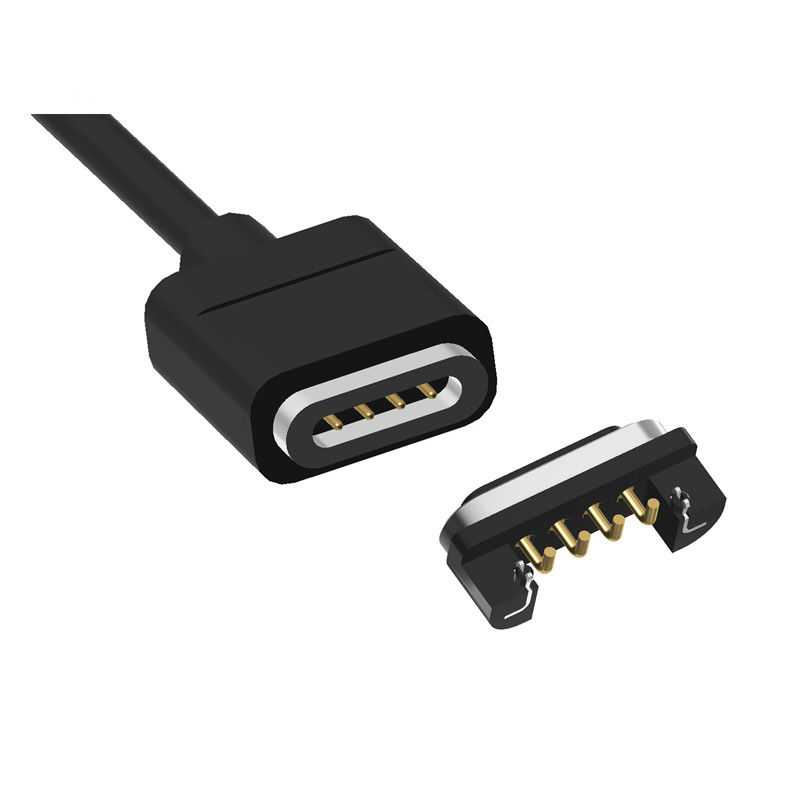

4pin right angle female magnetic connector male magnetic cable connector
-Materil and coating conform to ROHS and REACH standards
Mechanical:
-Contact force:80g±20g at 0.8mm working storke
-Life test:10,000cycle
Electrical:
-Rated voltage:DC5V;Rated voltage:3AMax.
-Contact resistance of spring pin:50milliohm Max.
Environmental performance:
-Operation Temperature:-25℃ to +80℃
SaltSpray:24H
USB2.0: USB/AM Integrated type (with overload and short-circuit protection of 5V 2A)
Inner mold material: PE
Over molding:PVC Black
Cable Tie:Black PVC Metal elliptic cable tie
Wire:OD3.5 4C 2C 22AWG 2C 28AWG B1ack PVC
Magnet Plug: Magnetic Male Plug
4Pin Male Female Magnetic Connectors Parameter:
|
Name
|
5Pin Magnetic Cable Connector
|
|
Type
|
Male/Female
|
|
Pin
|
5pin or customized
|
|
Wire
|
PVC
|
|
Cable length
|
1050mm
|
|
Color
|
Black
|
|
Pogo pin
|
Brass
|
|
Magnet
|
NdFeB N52 Plating Ni
|
|
Spring force
|
80g±20g,at 0.8mm working storke.
|
|
Mechanical life
|
10000 cycle Min..
|
|
Current
|
3AMax
|
|
Voltage
|
DC 5V
|
|
Contact resistance
|
50mΩ Max (PIN).
|
|
Operation Temperature
|
25℃to +80℃
|
|
Salt spray test
|
24H
|
|
Certification
|
ROHS or REACH compliant product
|
|
Test
|
100% open and short test
|
4Pin Magnetic Cable Connector Technical Drawing
4Pin Right Angle Female Magnetic Connector Technical Drawing
Decompose the view of female magnetic connector
4Pin Magnetic Cable Connector Mnode of Connection
Packaging view:
Advantages of Magnetic Connector:
●Humanize design of automatic adsorption connection experience;
●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;
●Life time: up to 100,000-200,000cycle;
●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);
●Fast charging time: 5A-10A magnet connector design withstands large current transmission;
●The appearance of the magnetic connector can be matched according to the design of the customer's application device;
●Product anti-short circuit structure design and foolproof;
●Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission
Magnetic connector products application:
1.Wearable devices, intelligent positioning equipment, children's smart wristbands, smart watches, wearable mobile phones,Bluetooth headsets, etc.) data cable, charging cable, magnetic strip wire end connection
2.Medical equipment,wireless equipment,data communications equipment,telecommunication equipment,Automation and industrial equipment,audio-visual equipment
3.Aviation ,aerospace electronic,military communication
4.Automotive,car navigation,test and measurement equipment
5.Consumer Electronics(mobile phones,tablet computers,Bluetooth headsets,camera,watch,portable consumer electronic products and many other electronic fields.)
