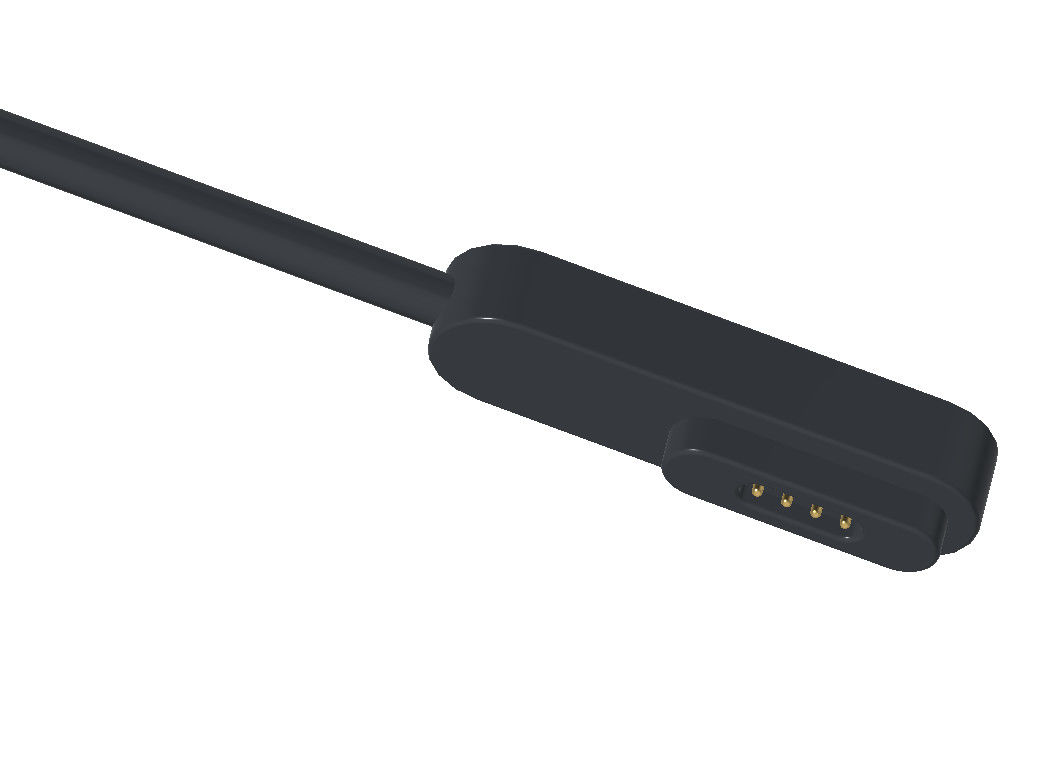

Rectangle Magnetic USB Connector Male Magnetic Connector 4 Pin With OD3.0 PVC cable

Rectangle 4pin male pogo pin magnetic cable usb connector with OD3.0 PVC cable

1.Resistance value test (AT:20C):

a. The resistance value between the solder joint and the copper nail is less than 50mΩ

b. The resistance value of 1 piece of product wire is less than 60mΩ.

2. Withstand voltage test :100V AC for 1 minute, 5mA Max

3. Insulation resistance :50mΩ Min(500V DC 1 minute)

4.Plug Swing test: Lifting weight 300g, Angle ±70°, frequency 30 times per minute, 3000 times per minute
The disconnection rate is less than 100%.

5.A male head swing test: Load 300g, Angle ±70°, frequency 30 times per minute, 3000 times per minute, break
The line is less than 100%.

6.A male head, magnetic head (part testing), salt spray test: Temperature 35±1° C, humidity 85%, 5% NACL
There was no corrosion phenomenon after 24 hours.

7.Plug and SR lifting capacity test: Vertical lifting capacity of Plug and SR :5kg/ min, must not be damaged, and the displacement should be less than 3mm.

8. Humidity test: Temperature 40℃, humidity 95%, 48 hours, meeting the requirements of items 2 and 3 in Note.

9. Thermal cycling test: Place at -31℃ for 30 minutes, then at 60℃ for another 30 minutes, and repeat this cycle 5 times.
Meet the requirements of Note 2 and 3.

10. This product must comply with ROHS requirements.

11. All places with dimensions on the drawing must be inspected 100% and recorded.

12. Packaging method: The outer box should be affixed with shipping label paper.

4Pin Magnetic Cable Connectors Parameter:

4Pin Magnetic  Cable Connector Technical Drawing

4Pin Magnetic Cable Connector Mnode of Connection

Packaging view:

Advantages of Magnetic Connector:

●Humanize design of automatic adsorption connection experience;

●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;

●Life time: up to 100,000-200,000cycle;

●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);

●Fast charging time: 5A-10A magnet connector design withstands large current transmission;

●The appearance of the magnetic connector can be matched according to the design of the customer's  application device;

●Product anti-short circuit structure design and foolproof;

●Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission

Magnetic connector products application:

1.Wearable devices, intelligent positioning equipment, children's smart wristbands, smart watches, wearable mobile phones,Bluetooth headsets, etc.) data cable, charging cable, magnetic strip wire end connection

2.Medical equipment,wireless equipment,data communications equipment,telecommunication equipment,Automation and industrial equipment,audio-visual equipment

3.Aviation ,aerospace electronic,military communication

4.Automotive,car navigation,test and measurement equipment

5.Consumer Electronics(mobile phones,tablet computers,Bluetooth headsets,camera,watch,portable consumer electronic products and many other electronic fields.)

Why UPE shall be your partner?

● Reliability and durability

● Rapid design and delivery

● Reliable and honest partnership

How to place the magnetic cable connector order
* Identify Your Requirements(Type of Connector,Quantity Needed,Customized requirements,Technical Specifications)

*Negotiate pricing & terms (bulk discounts may apply).

*Confirm order details (connector type, quantity, customization).

*Make payment (via PayPal, bank transfer, or other secure methods).

*Shipping & Quality Check
*Track the shipment.

*Inspect the product upon arrival to ensure quality.

Payment Term: T/T,50% Deposit,50% Balance

Payment method: T/T,PayPal,OCBC

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
