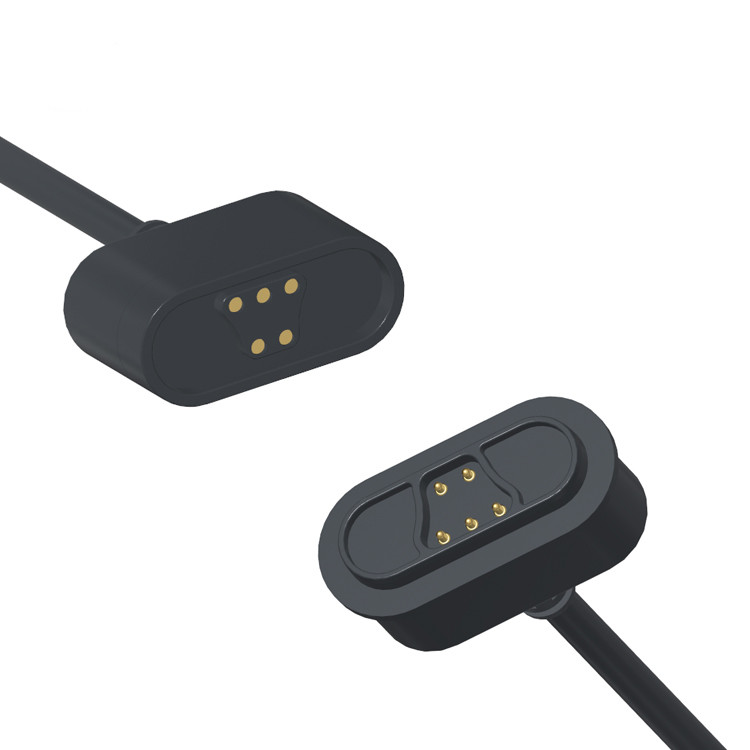

Customized double row 5pin male and female magnetic power cable connector
Mechanical:
Pin1/3:
-Contact force:80g±20g at 1. 1mm working storke
-Life test: 10,000 cycles
Pin2/4/5:
-Contact force:80g±20g at 0.8mm working storke
-Life test:10,000 cycles
Electrical:
-Rated voltage:DC 12V ; Rated voltage: 5A Max.
-Contact resistance of spring pin:50 milliohm Max.
Environmental performance:
-Operation Temperature:-25℃to +80℃
-Salt Spray:24H
RoHS & REACH Compliance:
RoHS (Restriction of Hazardous Substances): Ensures the materials are free from restricted substances like lead, cadmium, mercury, etc.
REACH (Registration, Evaluation, Authorization of Chemicals): Confirms all chemical substances are registered and safe for use in the EU.
Implementation: All materials (brass, gold plating, HTN housing, PVC, magnets) and their coatings must be verified for compliance through material declarations or lab testing.
100% Short & Open Circuit Testing:
Production Requirement: Every unit undergoes electrical verification:
Short Circuit Test: Confirms no unintended connections between pins
Open Circuit Test: Verifies continuity in all intended signal/power paths
Test Method: Typically performed with automated test equipment during final assembly
Quality Assurance: Eliminates risk of miswired or defective units reaching customers
5Pin Male and Female Magnetic Cable Connectors Parameter:
|
Name
|
5Pin Magnetic Cable Connector
|
|
Type
|
Male and female
|
|
Pin
|
5pin or customized
|
|
Male/Female Part Cable
|
TPE
|
|
Male/Female Part Cable length
|
70mm
|
|
Color
|
Black
|
|
Pogo pin/Turning parts
|
Brass
|
|
Magnet
|
NdFeB N52 Plating Ni
|
|
Spring force
|
80g±20g,at 0.8mm working storke.
|
|
Mechanical life
|
10000 cycle Min..
|
|
Current
|
5.0AMax
|
|
Voltage
|
DC 12V
|
|
Contact resistance
|
50mΩ Max (PIN).
|
|
Operation Temperature
|
25℃to +80℃
|
|
Salt spray test
|
24H
|
|
Certification
|
ROHS or REACH compliant product
|
|
Test
|
100% open and short test
|
5Pin Male Magnetic Cable Connector Technical Drawing
5Pin Female Magnetic Cable Connector Technical Drawing
Male Magnetic Cable Connector Mnode of Connection
Female Magnetic Cable Connector Mnode of Connection
Packaging view:
Advantages of Magnetic Connector:
●Humanize design of automatic adsorption connection experience;
●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;
●Life time: up to 100,000-200,000cycle;
●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);
●Fast charging time: 5A-10A magnet connector design withstands large current transmission;
●The appearance of the magnetic connector can be matched according to the design of the customer's application device;
●Product anti-short circuit structure design and foolproof;
●Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission
Magnetic connector products application:
1.Wearable devices, intelligent positioning equipment, children's smart wristbands, smart watches, wearable mobile phones,Bluetooth headsets, etc.) data cable, charging cable, magnetic strip wire end connection
2.Medical equipment,wireless equipment,data communications equipment,telecommunication equipment,Automation and industrial equipment,audio-visual equipment
3.Aviation ,aerospace electronic,military communication
4.Automotive,car navigation,test and measurement equipment
5.Consumer Electronics(mobile phones,tablet computers,Bluetooth headsets,camera,watch,portable consumer electronic products and many other electronic fields.)
