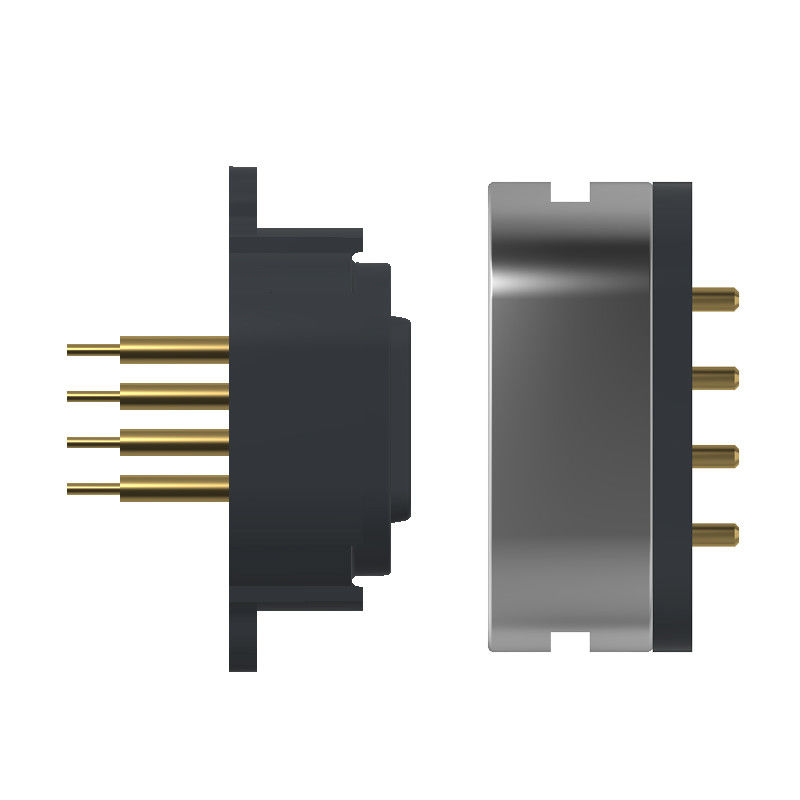

2.0mm Pitch 4pin DIP Male Female Magnetic Power Connector With N52 Magnet
Material and coating conform to ROHS and REACH standards
100% short and open circuit test
Material
Pogo Pin/Turning Parts: Brass plating Au 0.125um
Housing: Black HTN UL94 V-0
Magnet: N52 NdFeB Plating Ni Cu Ni
Mechanical:
Contact force: 70g±20g,at 0.8mm working storke.
Life test: 10000 cycle Min..
Adsorption force test:The female docking adsorption is 600g±20%
Electrical:
Ratedv Voltage:12 V.
Ratedv Current:2.0 A max
Contact resistance of spring pin: 50mΩ Max
Environmental performance:
Operation Temperature: -25℃to +80℃
SaltSpray: 24H
4Pin Magnetic Cable Connectors Parameter:
|
Name
|
4Pin Magnetic Connector
|
|
Type
|
DIP
|
|
Pin
|
4pin or customized
|
|
Pitch
|
3.0mm
|
|
Color
|
Black
|
|
Pogo pin/Turning parts
|
Brass
|
|
Housing
|
Black HTN
|
|
Magnet
|
NdFeB N52 Plating Ni
|
|
Spring force
|
80g±20g,at 0.8mm working storke.
|
|
Mechanical life
|
10000 cycle Min..
|
|
Current
|
2.0A
|
|
Voltage
|
DC 12V
|
|
Contact resistance
|
50mΩ Max (PIN).
|
|
High voltage test
|
AC1000 V0.5mA 3SEC / DC 1000V 0.5mA 3 SEC.
|
|
Salt spray test
|
24H
|
|
Certification
|
ROHS or REACH compliant product
|
|
Test
|
100% open and short test
|
4Pin Male Magnetic Connector Drawing Size
4Pin Female Magnetic Connector Drawing Size
Male Magnetic Connector Exploded View
Female Magnetic Connector Exploded View
Recommended pcb layout:
Magnetic connector products application:
1.Wearable devices, intelligent positioning equipment, children's smart wristbands, smart watches, wearable mobile phones,Bluetooth headsets, etc.) data cable, charging cable, magnetic strip wire end connection
2.Medical equipment,wireless equipment,data communications equipment,telecommunication equipment,Automation and industrial equipment,audio-visual equipment
3.Aviation ,aerospace electronic,military communication
4.Automotive,car navigation,test and measurement equipment
5.Consumer Electronics(mobile phones,tablet computers,Bluetooth headsets,camera,watch,portable consumer electronic products and many other electronic fields.)
