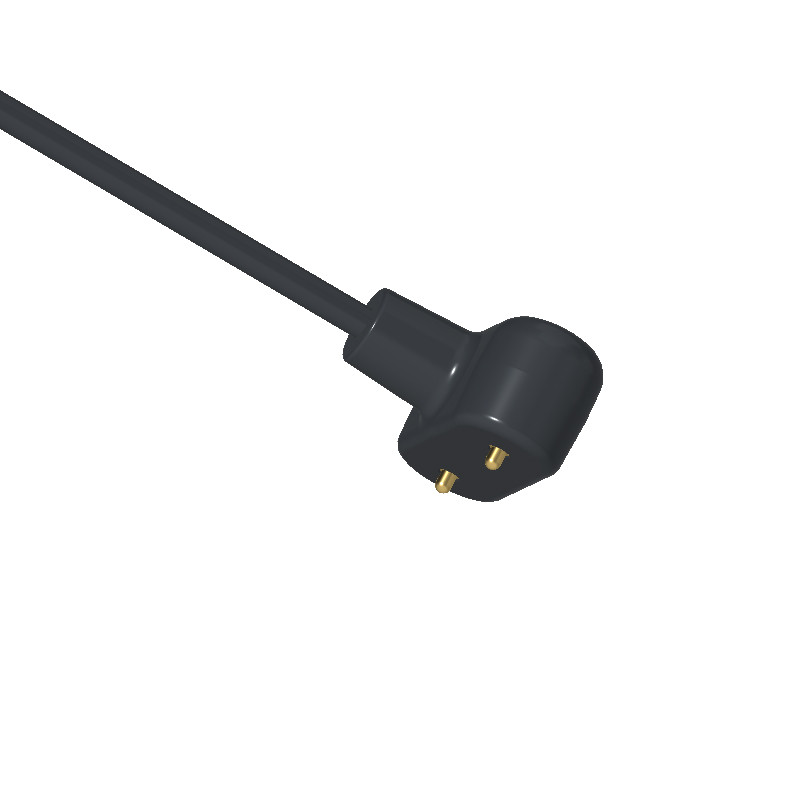

10.0mm pitch 2pin pogo pin magnetic USB cable connector for burglar alarm
Material
Pogo Pin: Brass C6801 plating Au 0.125um
Housing: ABS black
Magnet: N52 NdFeB Plating Ni Cu Ni
PCB: Polyester resin glass fiber
Wire: OD2.0 2C 28AWG Black TPE
Cable Tie: Black PVC Metal elliptic cabletie
Internal Molding: TPE black
Over molding:Aluminum alloy sandblasted bright black anode
Mechanical:
Contact force: 40g±20g,at 1.0mm working storke.
Life test: 10000 cycle Min..
Electrical:
Ratedv Voltage:12 V.
Ratedv Current:1.0 A max
Contact resistance of spring pin: 50mΩ Max
Environmental performance:
Operation Temperature: -25℃to +80℃
SaltSpray: 24H
2Pin Magnetic Cable Connectors Parameter:
|
Name
|
2Pin Magnetic Cable Connector
|
|
Type
|
DIP
|
|
Pin
|
2pin or customized
|
|
Pitch
|
10.0mm
|
|
Cable
|
TPE
|
|
Cable length
|
800m
|
|
Color
|
Black
|
|
Pogo pin
|
Brass C6801
|
|
Housing
|
ABS Black
|
|
Magnet
|
NdFeB N52 Plating Ni
|
|
PCB
|
Polyester resin glass fiber
|
|
Spring force
|
40g±20g,at 1.0mm working storke.
|
|
Mechanical life
|
10000 cycle Min..
|
|
Current
|
1.0A
|
|
Voltage
|
DC 12V
|
|
Contact resistance
|
50mΩ Max (PIN).
|
|
High voltage test
|
AC1000 V0.5mA 3SEC / DC 1000V 0.5mA 3 SEC.
|
|
Salt spray test
|
24H
|
|
Certification
|
ROHS or REACH compliant product
|
|
Test
|
100% open and short test
|
2Pin Male Cable Connector Technical Drawing
Packaging view:
Magnetic connector products application:
Why UPE shall be your partner?
● Reliability and durability
● Rapid design and delivery
● Reliable and honest partnership
How to place the magnetic cable connector order
* Identify Your Requirements(Type of Connector,Quantity Needed,Customized requirements,Technical Specifications)
*Negotiate pricing & terms (bulk discounts may apply).
*Confirm order details (connector type, quantity, customization).
*Make payment (via PayPal, bank transfer, or other secure methods).
*Shipping & Quality Check
*Track the shipment.
*Inspect the product upon arrival to ensure quality.
Payment Term: T/T,50% Deposit,50% Balance
Payment method: T/T,PayPal,OCBC
Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day
Production Lead Time:10-15Working day
Made For: America,Europe,Asia,South African
Trade Term: EXW
Freight: Air,Sea,Express
Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
