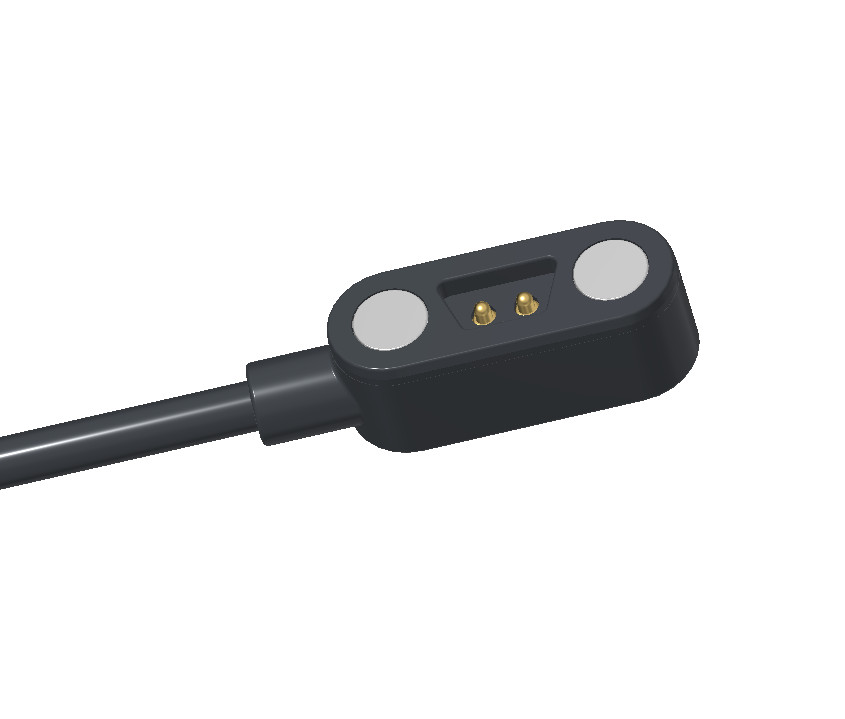

2.54mm pitch 2pin magnetic cable connector fo special shaped LED lights
Material and coating conform to ROHS and REACH standards
Materials
Contact :2 P Magnetic Suction Male
Wire:OD3.0 2C 24AWG covered by black PVC
External Model:Black PVC 45P
Internal Model:Lucency PE
Usb :Salt Spray 48 Hours
Mechanical
Contact force: 70±20g at 1.0mm working storke
Life test: 50,000cycles
Electrical
Rated voltage:DC12V ; Rated voltage: 2AMax.
Contact resistance of spring pin :50 milliohm Max.
2Pin Magnetic Cable Connectors Parameter:
|
Name
|
2Pin Magnetic Cable Connector
|
|
Type
|
DIP
|
|
Pin
|
2pin or customized
|
|
Pitch
|
2.54mm
|
|
Cable
|
PVC
|
|
Cable length
|
800m
|
|
Color
|
Black
|
|
Pogo pin
|
Brass
|
|
Housing
|
Black HTN+30%GF UL94 V-0
|
|
Magnet
|
NdFeB N52 Plating Ni
|
|
Spring force
|
70g±20g,at 1.0mm working storke.
|
|
Mechanical life
|
50000 cycle Min..
|
|
Current
|
2.0A
|
|
Voltage
|
DC 12V
|
|
Contact resistance
|
50mΩ Max (PIN).
|
|
High voltage test
|
AC1000 V0.5mA 3SEC / DC 1000V 0.5mA 3 SEC.
|
|
Salt spray test
|
48H
|
|
Certification
|
ROHS or REACH compliant product
|
|
Test
|
100% open and short test
|
2Pin Male Cable Connector Technical Drawing (Key Dimensions):
Magnetic connector products application:
1.Wearable devices, intelligent positioning equipment, children's smart wristbands, smart watches, wearable mobile phones,Bluetooth headsets, etc.) data cable, charging cable, magnetic strip wire end connection
2.Medical equipment,wireless equipment,data communications equipment,telecommunication equipment,Automation and industrial equipment,audio-visual equipment
3.Aviation ,aerospace electronic,military communication
4.Automotive,car navigation,test and measurement equipment
5.Consumer Electronics(mobile phones,tablet computers,Bluetooth headsets,camera,watch,portable consumer electronic products and many other electronic fields.)
