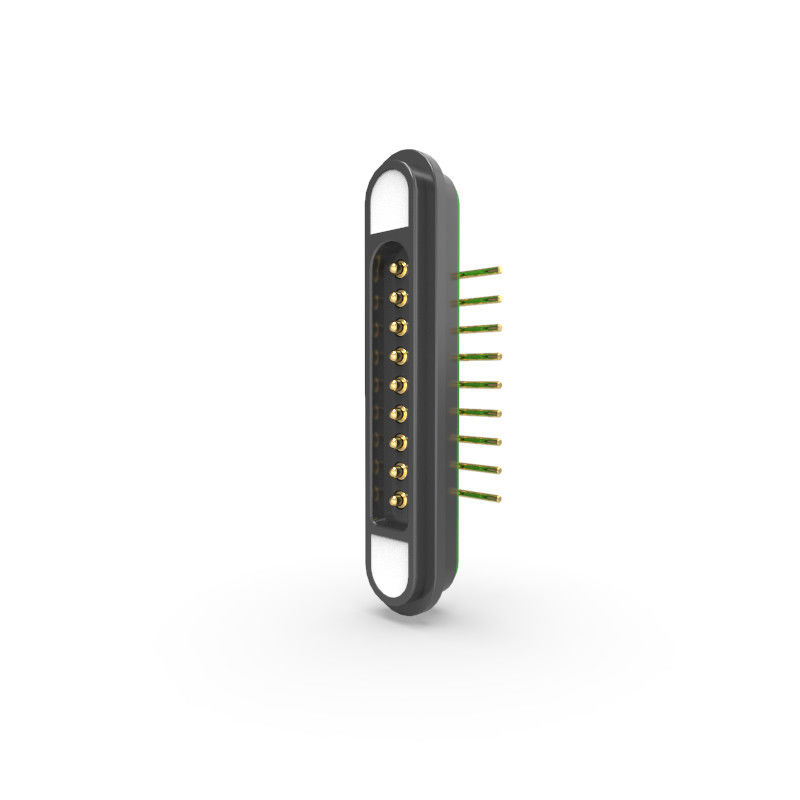

2.2mm pitch 9pin magnetic absorption male female pogo pin connector with 5A.
UPE is professional magnetic connector & magnetic cable connector manufacturer.
We have our own professional designers to meet any of your requirements and provide magnetic connector customization service. Different magnetic pogo pin connector products and solutions can be designed according to different customer needs.
Materials
Pogo Pin:
Material: Brass (Plunger & Barrel)
Plating: Gold (Au) over Nickel (Ni)
Housing:
Material: HTN (High-Temperature Nylon) + 30% Glass Fiber (GF)
Color: Black
Flammability Rating: UL94 V-0
Magnet:
Type: NdFeB (Neodymium Iron Boron)
Grade: N52
Plating: Nickel (Ni)
Electrical Specifications
Operating Voltage: 12V DC
Operating Current: 5.0A
Contact Resistance (PIN): ≤50mΩ (Max)
High Voltage Test
AC: 1000V, 0.5mA, 3 seconds
DC: 1000V, 0.5mA, 3 seconds
Product Features
Compliance: ROHS & REACH compliant
Magnetic Force: ≥450g
Safety Design: Anti-short circuit protection
9pin magnetic connectors parameter:
|
Name
|
9Pin Magnetic connectors
|
|
Pin
|
9pin or customized
|
|
Pitch
|
2.20mm
|
|
Type
|
Right angle
|
|
Pogo pin
|
Brass
|
|
Housing
|
Black HTN+30%GF UL94 V-0
|
|
Magnet
|
Neodymium iron boron
|
|
Magnet grade
|
N52(As requirement)
|
|
Magetic force
|
450G
|
|
Spring force
|
80g±20g,at 1.0mm working storke.
|
|
Mechanical life
|
5000 cycle Min..
|
|
Current
|
5.0A
|
|
Voltage
|
DC 12V
|
|
Contact resistance
|
50mΩ Max (PIN).
|
|
High voltage test
|
AC1000 V0.5mA 3SEC / DC 1000V 0.5mA 3 SEC.
|
|
Salt spray test
|
48H
|
|
Certification
|
ROHS or REACH compliant product
|
|
Test
|
100% open and short test
|
9pin male magnetic connectors:
9pin female magnetic connectors:
Recommended pcb layout:
Layout tolerance:±0.05mm
Key Advantages of Magnetic Connectors
1. Superior Convenience & User Experience
Quick Connect/Disconnect – Effortless one-handed operation with auto-alignment.
Blind Mating – No need for precise alignment; ideal for tight spaces.
Reduced Wear & Tear – Eliminates plugging friction, extending device lifespan.
2. Enhanced Durability & Reliability
50,000+ Mating Cycles – Withstands frequent use (vs. ~5,000 cycles for traditional connectors).
Water/Dust Resistance – Sealed designs available (IP67/IP68) for harsh environments.
Vibration/Shock Proof – Maintains connection in automotive/industrial applications.
3. Advanced Safety Features
Spark-Free – Prevents arcing in flammable environments (medical/chemical).
Anti-Short Circuit – Built-in protection for power applications.
Polarity Control – Customizable designs prevent reverse connections.
4. High-Performance Electrical Properties
Low Contact Resistance (≤50mΩ) – Gold-plated pins ensure stable power/signal transfer.
5A+ Current Rating – Supports fast charging and high-power devices.
EMI Shielding Options – Critical for sensitive electronics.
5. Space & Cost Efficiency
Compact Design – Saves 30-50% space vs. traditional connectors.
Reduced Maintenance – No broken pins or loose sockets.
Modular Customization – Mix power/data pins in one connector.
Magnetic Connector Applications
UPE’s high-performance magnetic connectors are engineered for reliability across diverse industries. Our solutions ensure secure, efficient, and durable connections for a wide range of applications:
1. Electronics & PCB Integration (such as PCB Board Connections / Digital Cameras/ Printers & Cartridges)
2. Industrial & Automotive (Electric Vehicles (EVs) / Golf Handle Sensors / Telephony Equipment)
3. Medical & Safety-Critical Devices (Cardiac Defibrillators – Fail-safe connections for life-saving medical equipment/
Medical Diagnostics – Sterilizable and reliable signal/power transfer)
4. Consumer & Smart Devices
. Laptops/Tablets/PCs – Fast-charging docks with anti-short circuit protection.
. LED Lighting – Flat luminaries, flashlights, and modular fixtures.
. Power Banks – Spark-free, high-efficiency charging terminals.
5. Home & IoT Applications
. Small Household Appliances – Air purifiers, smart mirrors, and kitchen gadgets.
. Signal Transmission Products – Audio/video equipment, sensors, and IoT modules.
UPE Company’s Competitive Advantages:
1. High-Technology Production
Utilizes advanced manufacturing techniques for superior product quality.
2. Systematic Management System
Streamlined processes ensure efficiency and consistency in production.
3. ISO 9001 Certification
Demonstrates commitment to international quality management standards.
4. RoHS Compliance
All products meet Restriction of Hazardous Substances (RoHS) regulations, ensuring environmental and safety standards.
5.Short Development Lead Time
Faster prototyping and production cycles, enabling quicker market delivery.
6. Competitive Pricing & Stable Quality
Cost-effective solutions without compromising on reliability.
Why Choose UPE?
. Customization Expertise: We design magnetic pogo pin connectors and other solutions tailored to your unique needs.
. End-to-End Support: From concept to production, we provide comprehensive R&D and manufacturing services.
. Diverse Applications: Our connectors are optimized for durability, efficiency, and seamless connectivity across industries.
. Partner with UPE for cutting-edge magnetic connector solutions that combine precision, performance, and flexibility
Payment method: T/T,PayPal,OCBC
Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day
Production Lead Time:10-15Working day
Made For: America,Europe,Asia,South African
Trade Term: EXW
Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
Pakaging & shipping
Customization Available – Contact us for tailored solutions!
