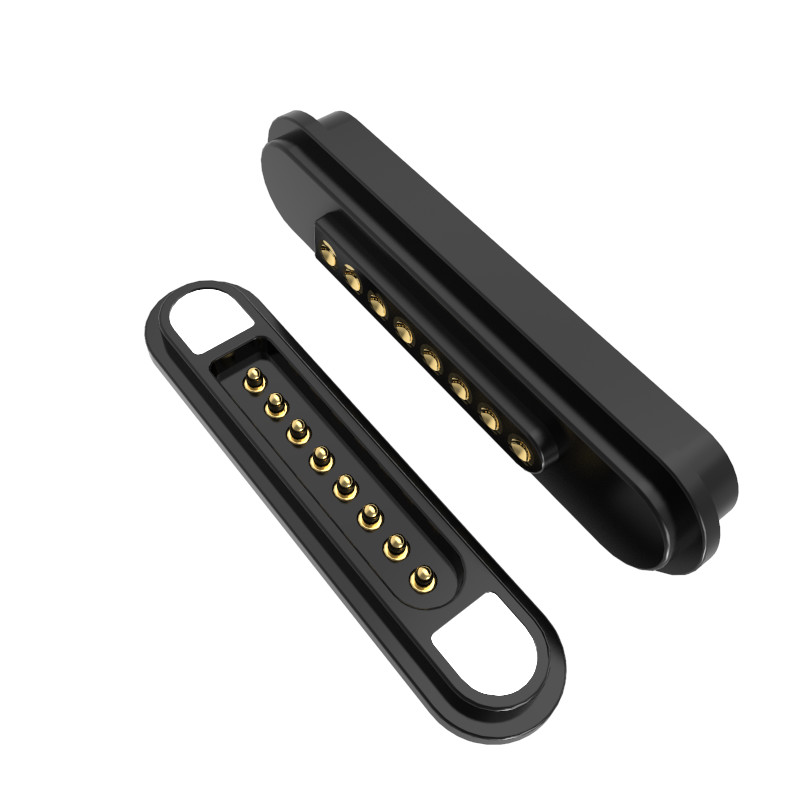

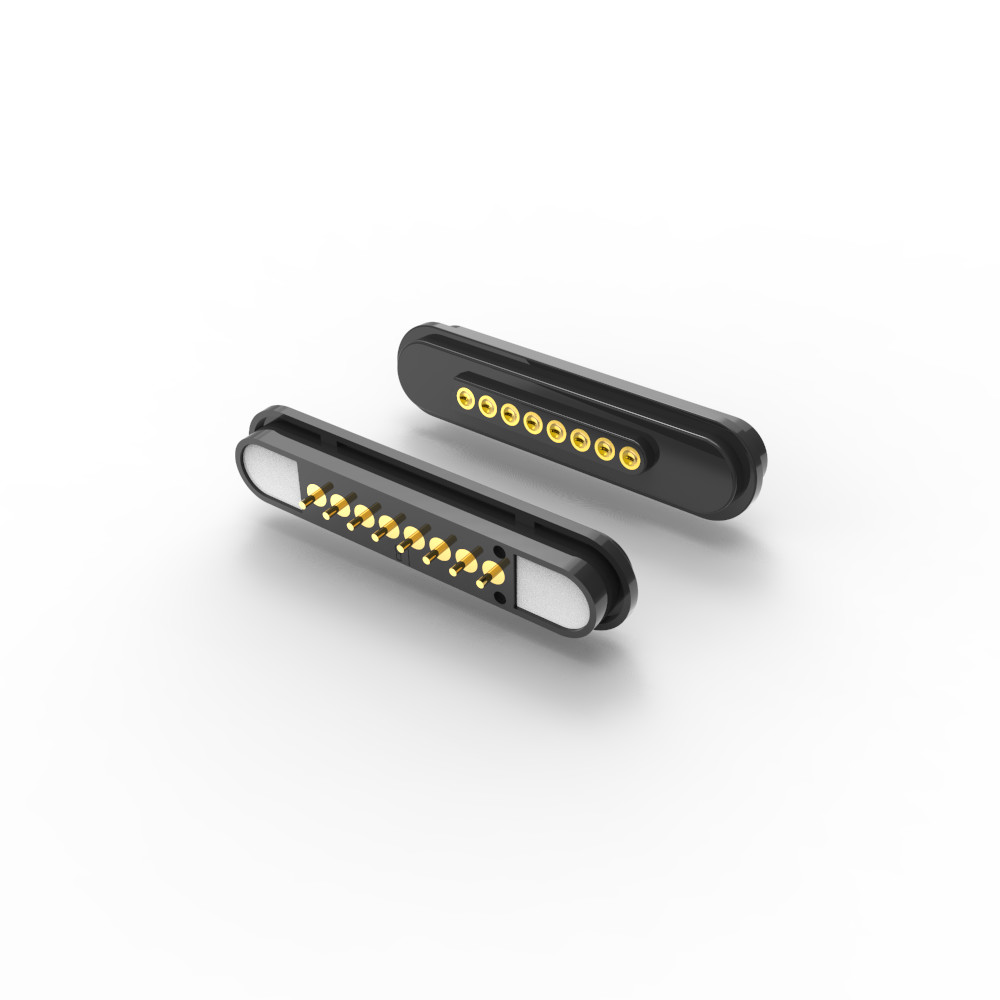

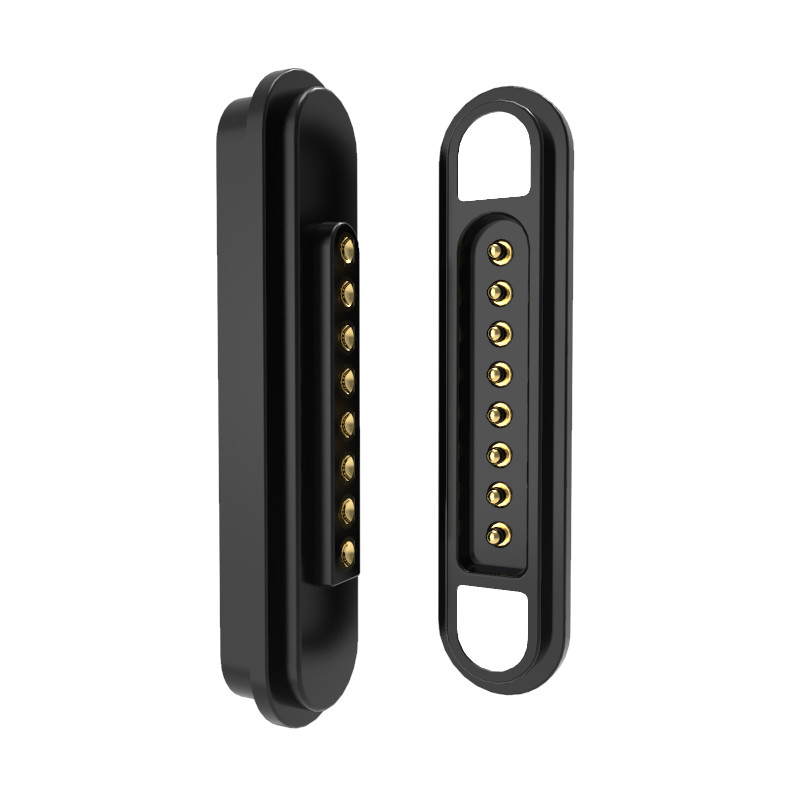

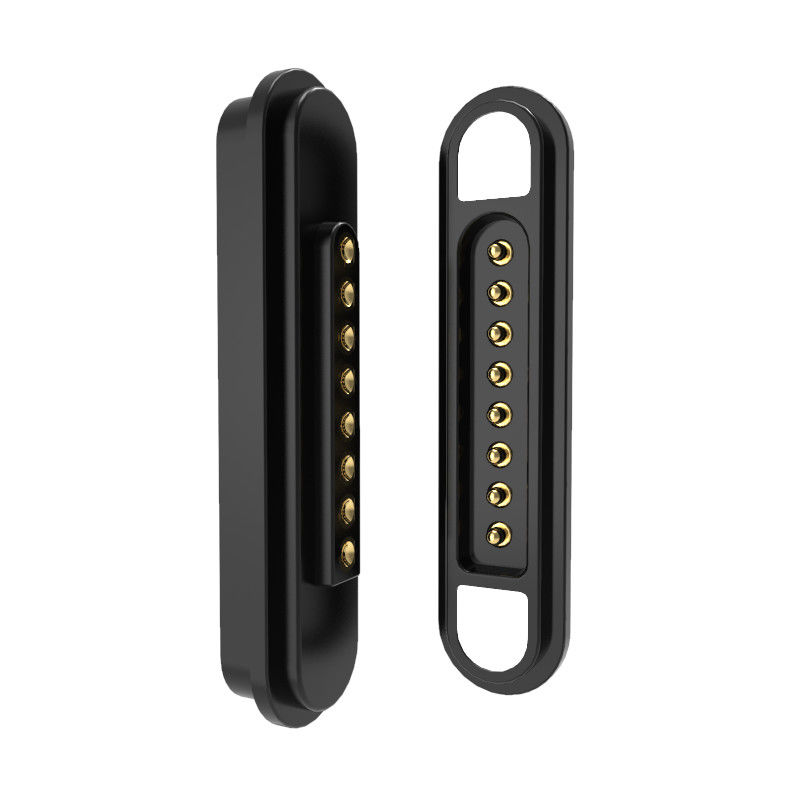

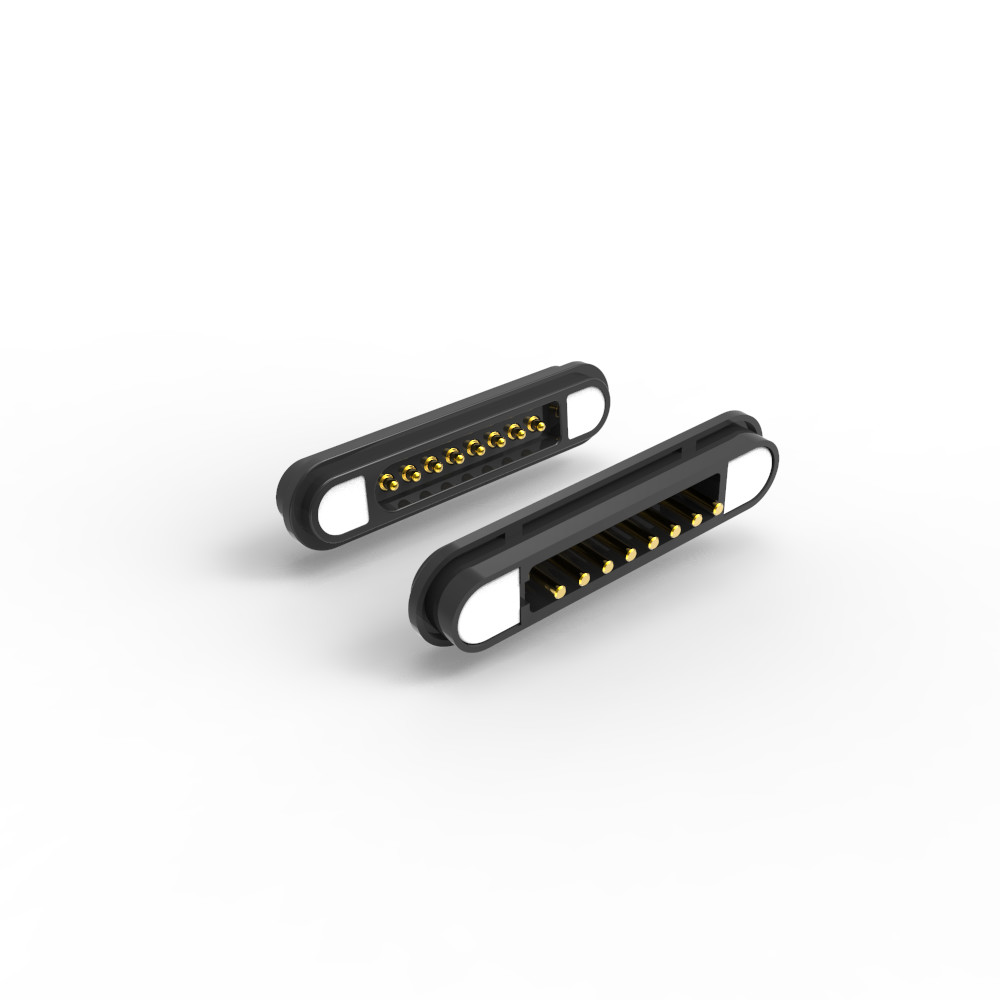

12V 8 Pin Magnetic Connector 3A Magnetic Pogo Pin Connector Customized Adapter Type

8pin adapter type and power application magnetic spring pogo pin connector

UPE – Professional Magnetic Connector & Magnetic Cable Connector Manufacturer | Custom Solutions.

UPE is a leading manufacturer of high-quality magnetic connectors and magnetic cable connectors, specializing in innovative, reliable, and customizable connectivity solutions. With our team of expert designers and engineers, we deliver tailored magnetic connector designs to meet your specific requirements—whether for industrial, consumer, or specialized applications.

Materials & Construction

Pogo Pin/Female Pin:

Base Material: Brass

Plating: Gold (Au) over Nickel (Ni) for superior conductivity and corrosion resistance.

Plastic Housing:

Material: HTN + 30% UL94 V-0 (Black) – High-temperature resistant, flame-retardant.

Magnet:

Grade: NdFeB N52 (High-performance rare earth magnet)

Plating: Nickel (Ni) for durability.

Mechanical Performance:

Spring Force: 80g ±20g (at 1.0mm working stroke).

Mechanical Life: 50,000 cycles minimum.

Magnetic Force: >450g (secure attachment).

Environmental Resistance:

Salt spray test: 48 hours (corrosion-resistant)

.

Electrical Performance:

Rated Voltage: 12V.

Rated Current: 5.0A.

Contact Resistance: ≤50mΩ (per pin).

High-Voltage Testing:

AC 1000V / 0.5mA / 3 seconds.

DC 1000V / 0.5mA / 3 seconds.

Safety Design: Anti-short circuit protection.

Compliance & Certifications

ROHS & REACH Compliant – Environmentally friendly and safe for restricted substances.

Magnetic connector key advantages

✅ Robust Construction: Combustion-proof plastic, gold-plated contacts, and N52 magnets ensure longevity.

✅ High Precision: Tight tolerances (e.g., spring force ±20g) for consistent performance.

✅ Safety-Centric: Passes rigorous electrical and environmental tests (1000V HV, salt spray).

✅ Versatile: Ideal for applications demanding high-current, high-reliability connections.

8pin magnetic connectors parameter:

8pin male magnetic connectors:

8pin female magnetic connectors:

Recommended pcb layout:

Layout tolerance:±0.05mm

UPE Company’s Competitive Advantages:

1. High-Technology Production
Utilizes advanced manufacturing techniques for superior product quality.

2. Systematic Management System
Streamlined processes ensure efficiency and consistency in production.

3. ISO 9001 Certification
Demonstrates commitment to international quality management standards.

4. RoHS Compliance
All products meet Restriction of Hazardous Substances (RoHS) regulations, ensuring environmental and safety standards.

5.Short Development Lead Time
Faster prototyping and production cycles, enabling quicker market delivery.

6. Competitive Pricing & Stable Quality
Cost-effective solutions without compromising on reliability.

Why Choose UPE?

Customization Expertise: We design magnetic pogo pin connectors and other solutions tailored to your unique needs.

End-to-End Support: From concept to production, we provide comprehensive R&D and manufacturing services.

Diverse Applications: Our connectors are optimized for durability, efficiency, and seamless connectivity across industries.

Partner with UPE for cutting-edge magnetic connector solutions that combine precision, performance, and flexibility

Magnetic connectors application:

Payment method: T/T,PayPal,OCBC

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
