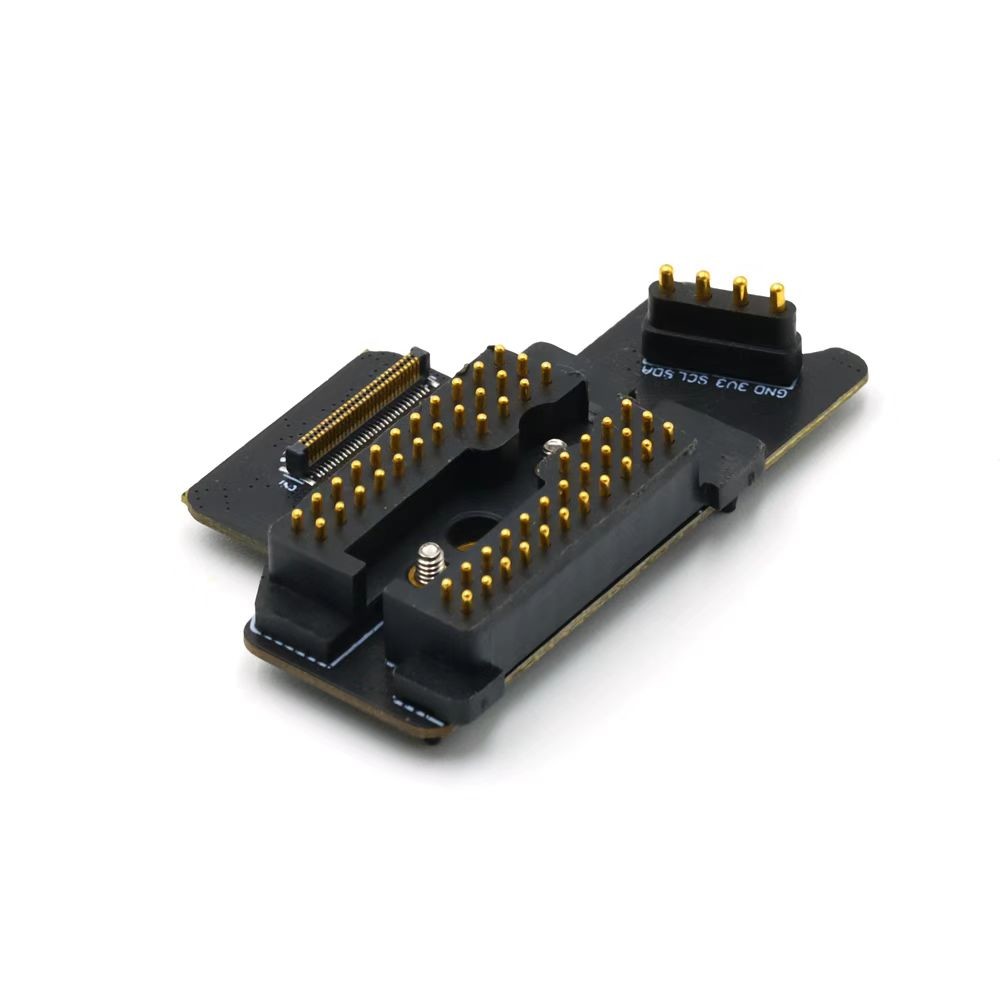

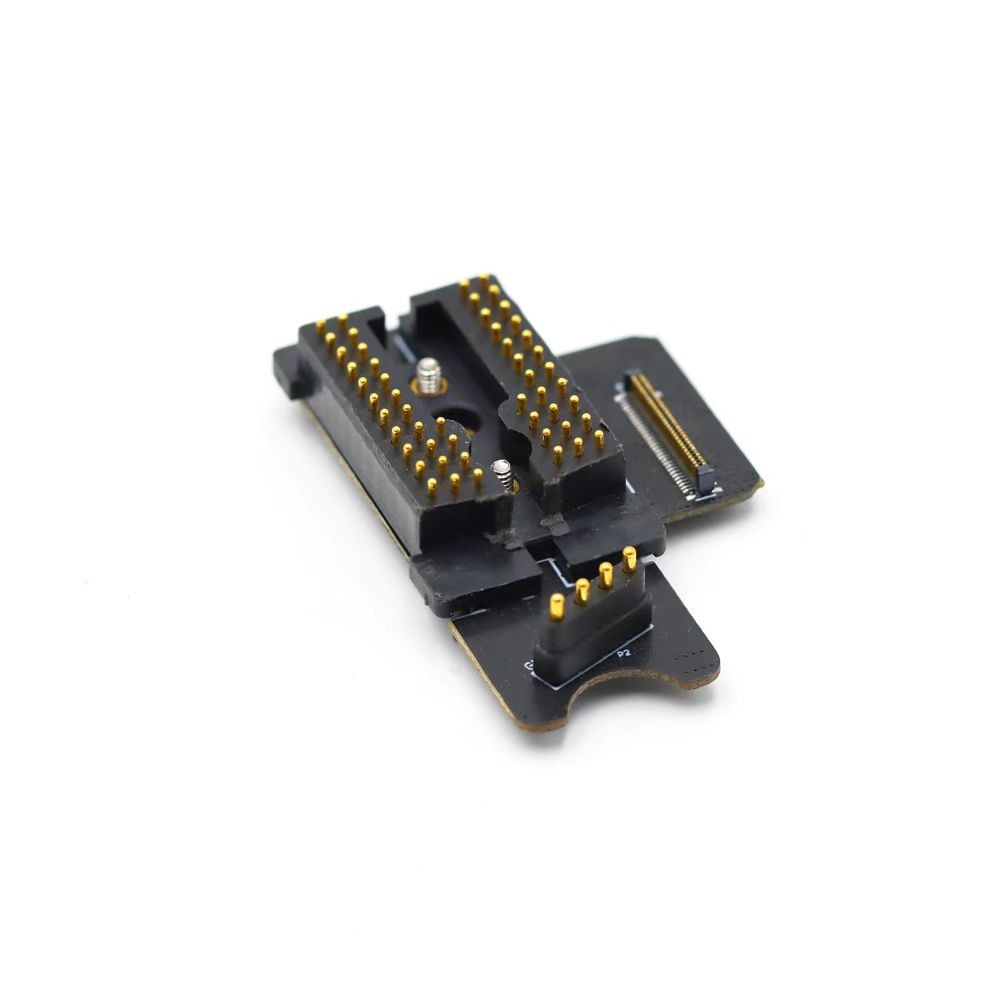

52pin Pogo Pin Connector Gold Plating Spring Loaded Connector With PA9T Housing

HP45 52pin printer cartridge spring loaded connector with PA9T housing.

52-pin HP45 pogo pin connector is consists of three parts,respectively are plastic, pin, spring. We can provide a complete set of assembled products for customer, then you don't need to assemble by youself. Or provide the parts for you to assemble by yourself.

HP45 52-pin printer cartridge connector with PA9T housing is a specialized spring-loaded (pogo pin) connector designed for reliable electrical contact with HP45 inkjet printheads. The PA9T (Polyamide 9T) housing provides high-temperature resistance, chemical stability (against ink solvents), and mechanical durability—critical for inkjet printing applications.

Plastic

Material: PA9T

.High heat resistance (up to ~200°C short-term)

.Excellent chemical resistance (ink solvents, humidity)

.Low warpage for precise alignment

.Color: Black

Pin

Material:C3604

Gold plating:5u",low resistance

Pin diameter: 0.35mm

Spring

1.Both ends be closed square.
2.During the packing processing, it's forbid to have double spring together from supplier.
3.As showing the spring force value on drawing,which it's measure after pre-load 10 times.
4.To inspect the spring under 10X scale gauge and the wire surface shall not have any damage;
The burrs of cutting position both ends which can't exceed the outer diameter of spring
5.The supplier should remove the magnetic properties from spring material by some device and filled 'with air in packaging bag during packing
6.RoHS&HF complant product.

Plastic size

Pin size

Spring size

Advantages of UPE Pogo Pin Connector

Pogo Pin Connector, commonly known as spring pins or pogo pins, offer several advantages:

Reliability: UPE Pogo pins using CLIP Technology provide a consistent and reliable electrical connection, even in environments subject to vibration and mechanical shock.

Compact Design: Their small size allows them to fit into tight spaces, which is ideal for modern, compact electronic devices.

Flexibility: Pogo pins can adapt to surface variations, ensuring a stable connection even if the mating surfaces are not perfectly aligned.

Ease of Use: They are user-friendly, with straightforward installation and maintenance.

Durability: They are designed to withstand numerous cycles of connection and disconnection, making them highly durable

Our Advantage and your choice:

1. High-Current Pogo Pins (15A–30A Series)

2. Standardized & Custom Pogo Pin Connectors
Pitch options: 1.27mm, 2.0mm, 2.54mm

2–40 pin male/female connectors SMT / DIP / Right Angle / Solder Cup terminations

Fully customizable shapes and structures to fit unique designs.

3. Unmatched Durability
1,000,000+ life cycles tested for long-term reliability.

Engineered for applications requiring repeated mating  cycles .

4. Compliance & Quality Assurance
100% electrical testing with provided reports before shipment.

Meets HF, RoHS, and REACH standards for global market compliance.

5. Compact & High-Performance Designs
Miniaturized structures without sacrificing current capacity.

Custom solutions for space-constrained applications.

Some of customized Pogo Pin Connectors for reference:
