Printer Cartridge Pogo Pin Connector Customized Spring Pin Connectors 52pin With PCB

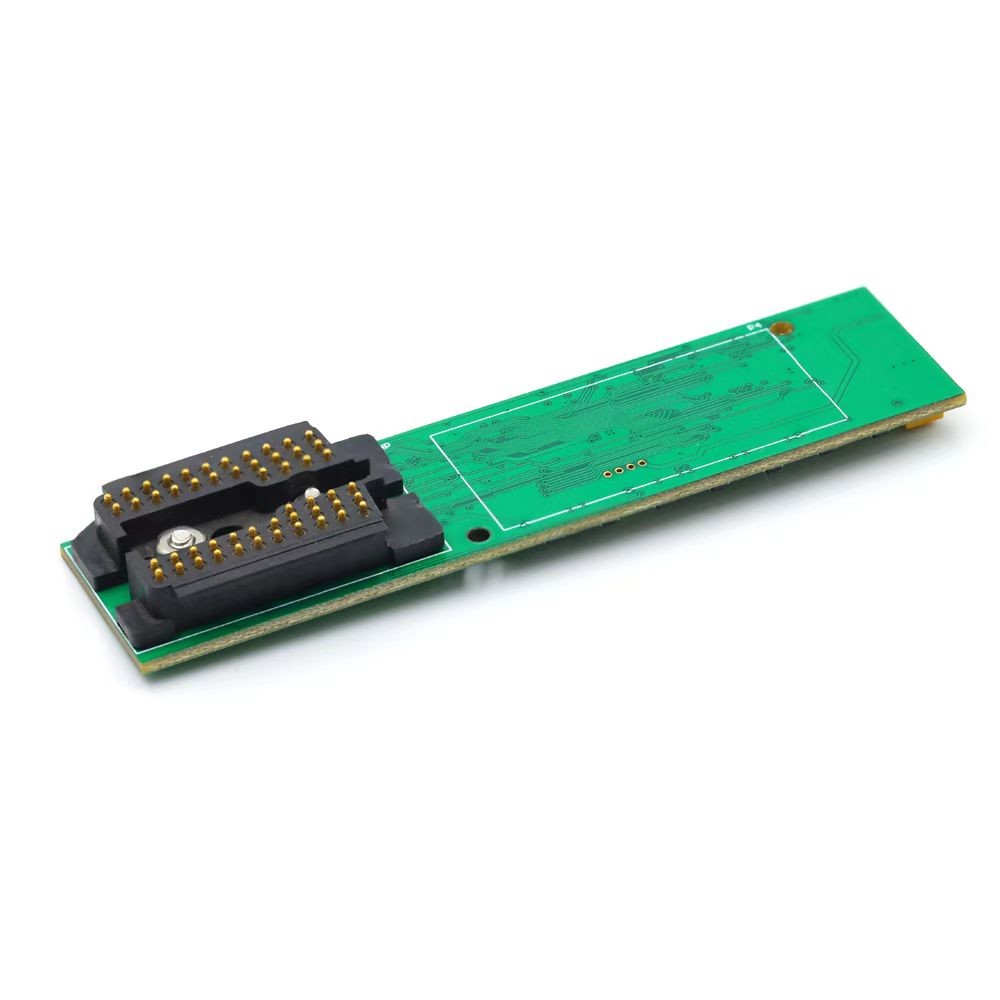

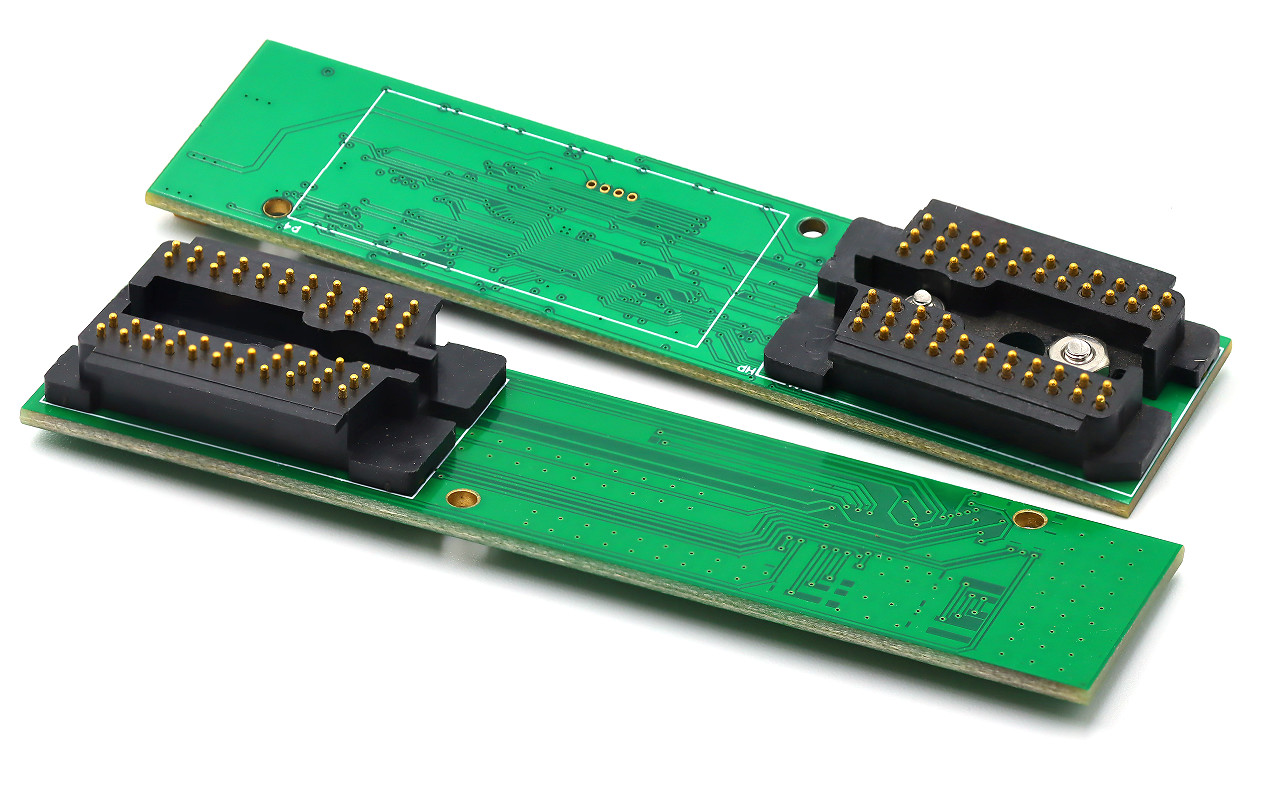

Customized 52pin HP45 pogo pin connector with PCB for printer cartridge

52-pin HP45 pogo pin connector is consists of three parts,respectively are plastic, pin, spring.

52-pin HP45 spring loaded connector is commonly used in inkjet printing systems, particularly with HP45 printheads. This connector interfaces with the printhead via spring-loaded pogo pins, ensuring reliable electrical contact.

Plastic

Material: PA9T

Color: Black

Pin

Material:C3604

Gold plating:5u"

Spring

1.Both ends be closed square.
2.During the packing processing, it's forbid to have double spring together from supplier.
3.As showing the spring force value on drawing,which it's measure after pre-load 10 times.
4.To inspect the spring under 10X scale gauge and the wire surface shall not have any damage;
The burrs of cutting position both ends which can't exceed the outer diameter of spring
5.The supplier should remove the magnetic properties from spring material by some device and filled 'with air in packaging bag during packing
6.RoHS&HF complant product.

Plastic size

Pin size

Spring size

Advantages of UPE Pogo Pin Connector

Pogo Pin Connector, commonly known as spring pins or pogo pins, offer several advantages:

Reliability: UPE Pogo pins using CLIP Technology provide a consistent and reliable electrical connection, even in environments subject to vibration and mechanical shock.

Compact Design: Their small size allows them to fit into tight spaces, which is ideal for modern, compact electronic devices.

Flexibility: Pogo pins can adapt to surface variations, ensuring a stable connection even if the mating surfaces are not perfectly aligned.

Ease of Use: They are user-friendly, with straightforward installation and maintenance.

Durability: They are designed to withstand numerous cycles of connection and disconnection, making them highly durable

Our Advantage and your choice:

.UPE professional customized high current Pogo Pin with 15A-30A series, it has been mass produced.

.UPE developed 1.27mm,2.0mm 2.54mm pitch standard male and female 2pin-40pin Pogo pin connector with SMT / DIP / Right Angle / Solder Cup.

.Pogo Pin Life test up to 1000,000 cycles.

.All products can pass HF, RoHS REACH standard.

.100% electrical test provided report before delivery the goods.

.Custom of various shapes is available, small structure and high current.

Some of customized Pogo Pin Connectors for reference:

Pogo Pin Connector Application Field:

Pakaging & shipping

Any question, please send to union@upetech.net
