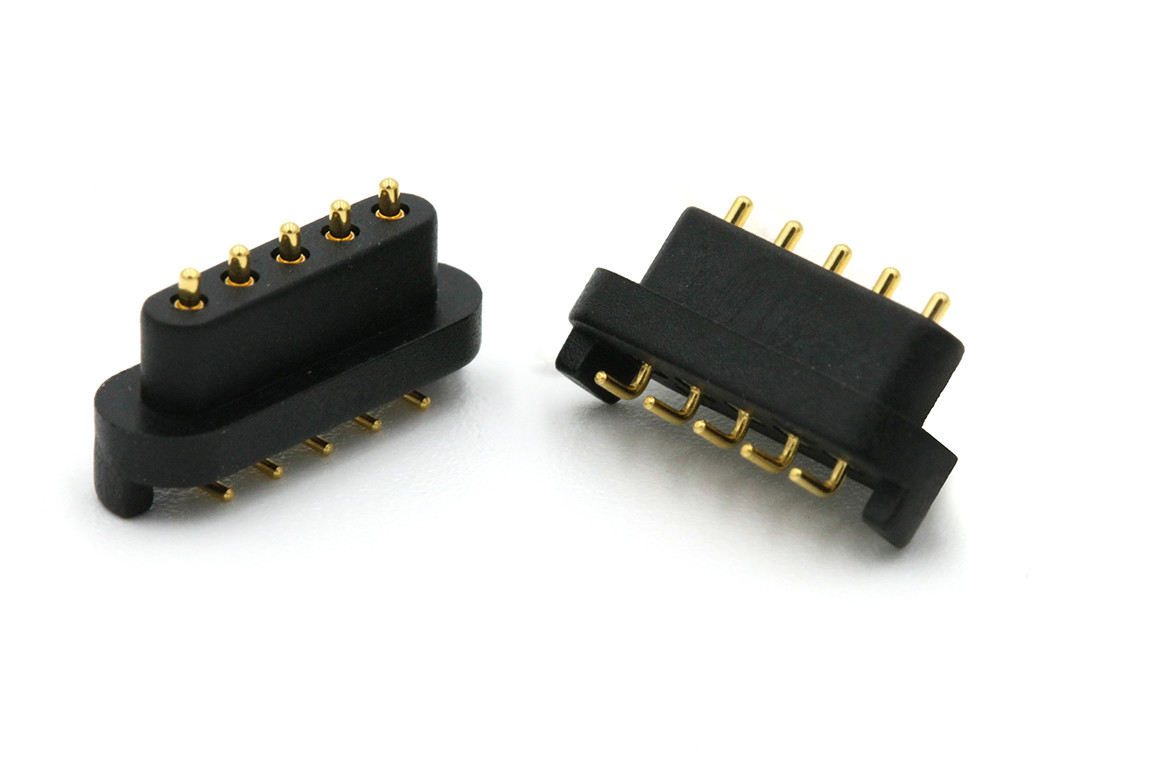

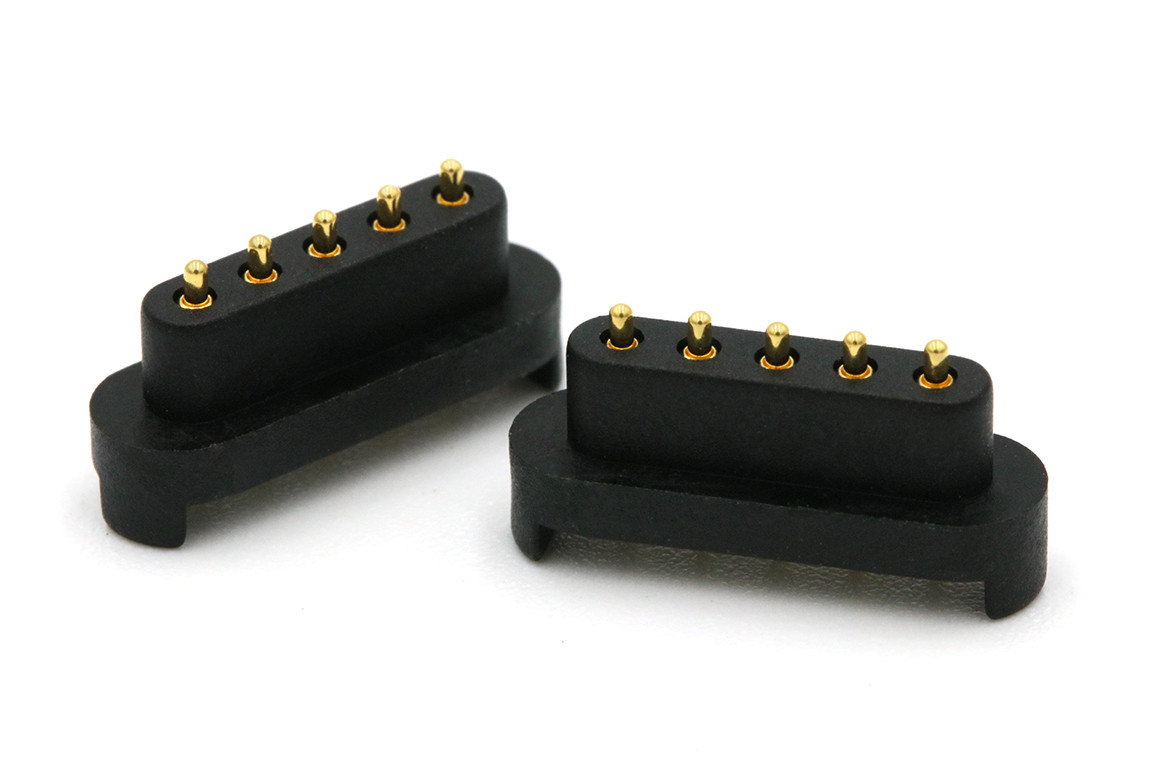

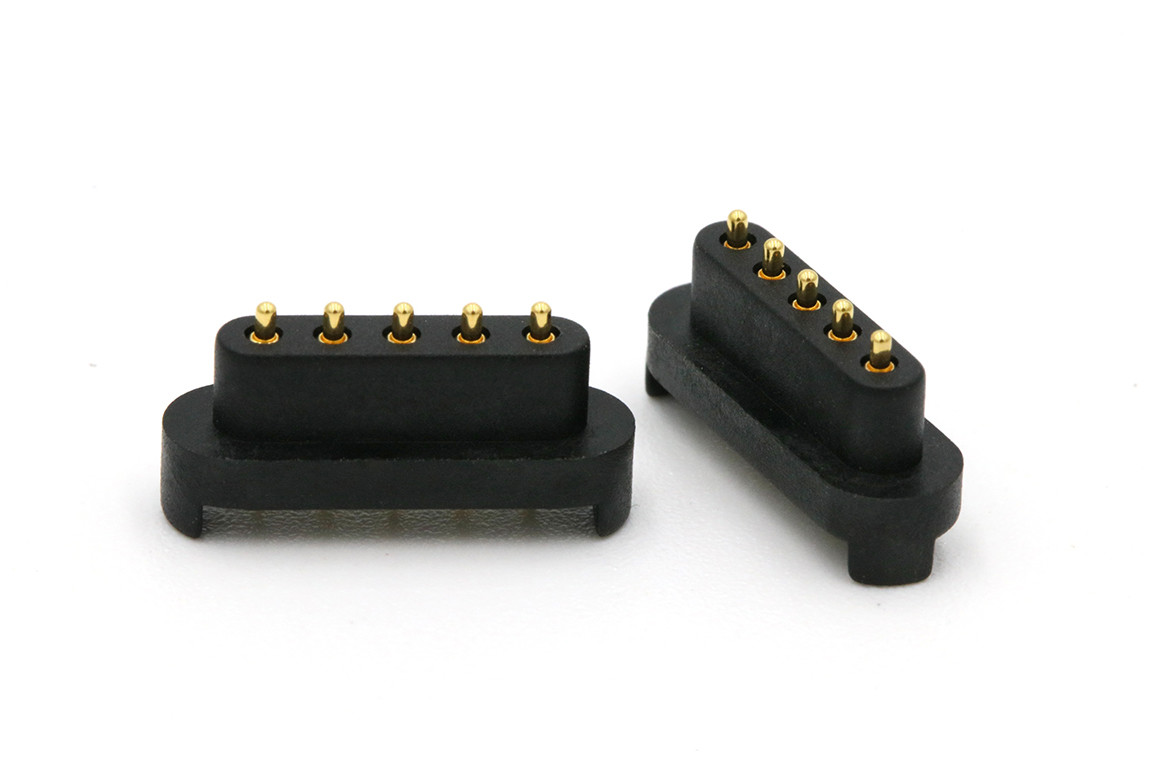

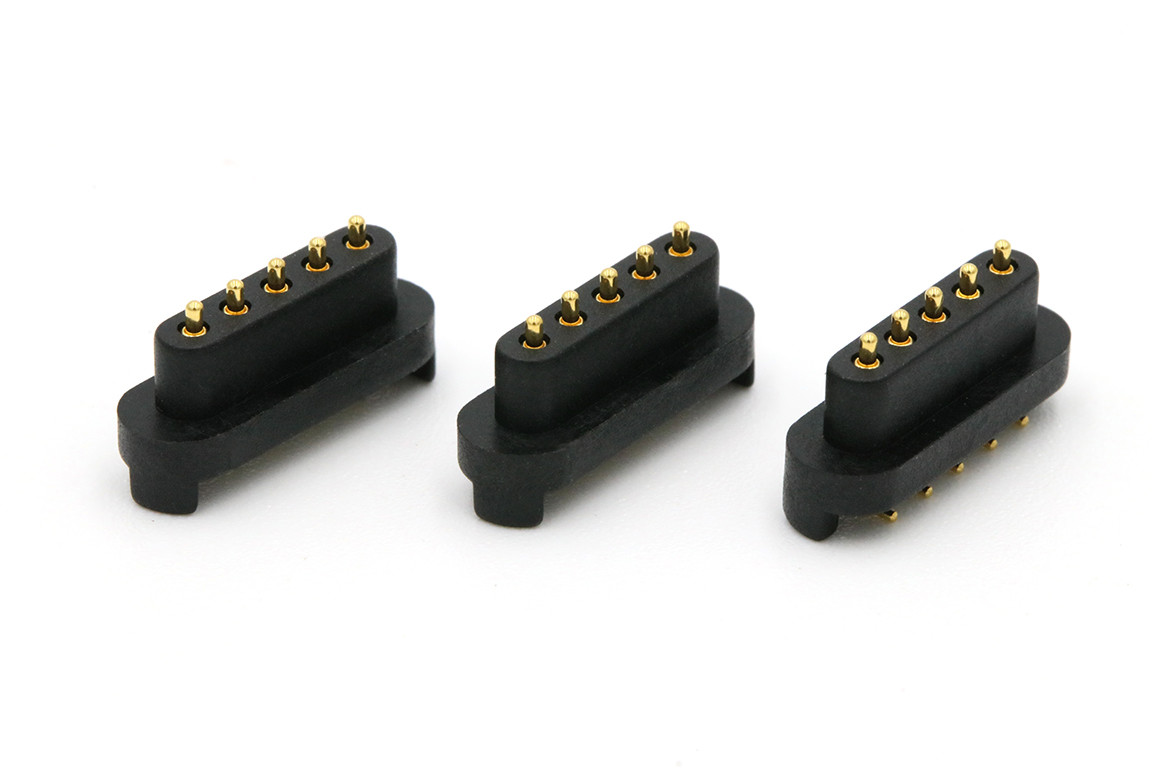

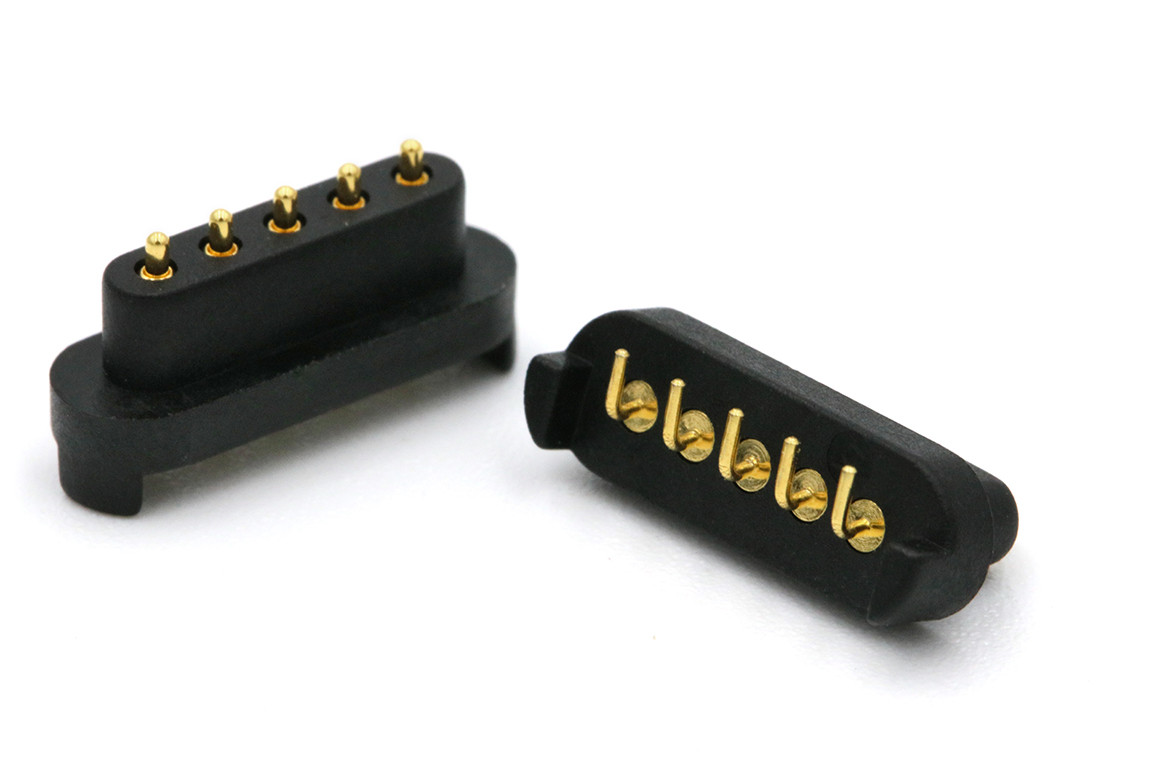

HTN male & female 2.5mm pitch Right Angle Pogo Pin Spring Loaded Connectors.
Pogo Pin is a precision connector used in mobile phones and other electronic products.
It is widely used in various electronic products and plays a role in signal transmission connection.
Pogo pin is a kind of spring probe formed by three basic components of needle shaft, spring and needle tube after riveting and pre-pressing with precision instruments, with a precision spring structure inside.Pogo pin has different appearance according to different applications. The surface coating is generally gold-plated, which can better improve its anti-corrosion function, mechanical properties, electrical properties, etc.
Its shape structure is divided into: flat bottom type, plug plate type, bending type, double needle shaft, thread type, welding wire type, side hole type, etc. The internal structure is divided into: back drilling type, slicing slope, slicing slope with round ball, through hole type, tail plug type, double head type, etc
Plating selection: regular gold plating, nickel plating, etc. Current range: regular 0.5-3A, high current 5-30A. Travel range: Refers to the compression stroke of the spring.
Advantages of The Pogo Pin Connector
Pogo Pin Connector, commonly known as spring pins or pogo pins, offer several advantages:
* Reliability
* Compact Design
* Flexibility
* Ease of Use
* Durability
2.5MM Pitch Right Angle Pogo Pin Spring Loaded Connectors Parameter List:
|
Insulator
|
Black HTN+30%GF UL94 V-0
|
|
Plunger
|
C3604,plating 5u” Au over 60~100u” Ni
|
|
Barrel
|
C3602,plating5u” Au over 60~100u” Ni
|
|
Spring
|
SUS304, plating 1u”Min Au
|
|
Spring force
|
70g+/-20g at 0.8mm working stroke
|
|
Full storke
|
1.0mm
|
|
Mechanical test
|
10000 cycles Min.
|
|
Rated current
|
1A Max.
|
|
Voltage
|
DC 12V
|
|
Contact resistance
|
50 milliohm Max
|
|
Salt spray test
|
48H
|
|
Certification
|
ROHS or REACH compliant product
|
|
Test
|
100% open and short test
|
|
ROHS or REACH compliant product
To ensure the best usage, please operate it based on the workingheight.Based on the engineering drawings, shall not exceed the maximumallowed compression.
|
2.5MM Pitch Right Angle Pogo Pin Spring Loaded Connectors Drawing Size:
Our Advantage and your choice:
* UPE professional customized high current Pogo Pin with 15A-30A series, it has been mass produced.
* UPE developed 1.27mm,2.0mm 2.54mm pitch standard male and female 2pin-40pin Pogo pin connector with SMT / DIP / Right Angle / Solder Cup.
* Pogo Pin Life test up to 1000,000 cycles.
* All products can pass HF, RoHS REACH standard.
* 100% electrical test provided report before delivery the goods.
* Custom of various shapes is available, small structure and high current.
Service idea:
1. Committed to providing customers with customized, small batch, multi variety, one-stop services.
2. Quick response and effective communication, refined service timely delivery.
3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.
4. Free designsupporting samples, the quality is safe and reliable, the price is competitive.
Why do customers choose UPE?
1. Professional customization service
2. Fast sample production capability
3. Strict quality control system
4. Processing with imported components
5. High-precision test equipment
6. Reasonable cost control procedures
Pogo Pin Connector Application Field:
How to place the order
* You send us drawing or sample
* Our professional engineering team conducts the assessment
* You confrim the drawing and we make the sample to send you
* You test the sample and approved,then place an order and pay 50% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to you with DHL, TNT,UPS,Fedex
Payment Term: T/T,50% Deposit,50% Balance
Payment method: T/T,PayPal,OCBC
Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day
Production Lead Time:10-15Working day
Made For: America,Europe,Asia,South African
Trade Term: EXW
Freight: Air,Sea,Express
Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
