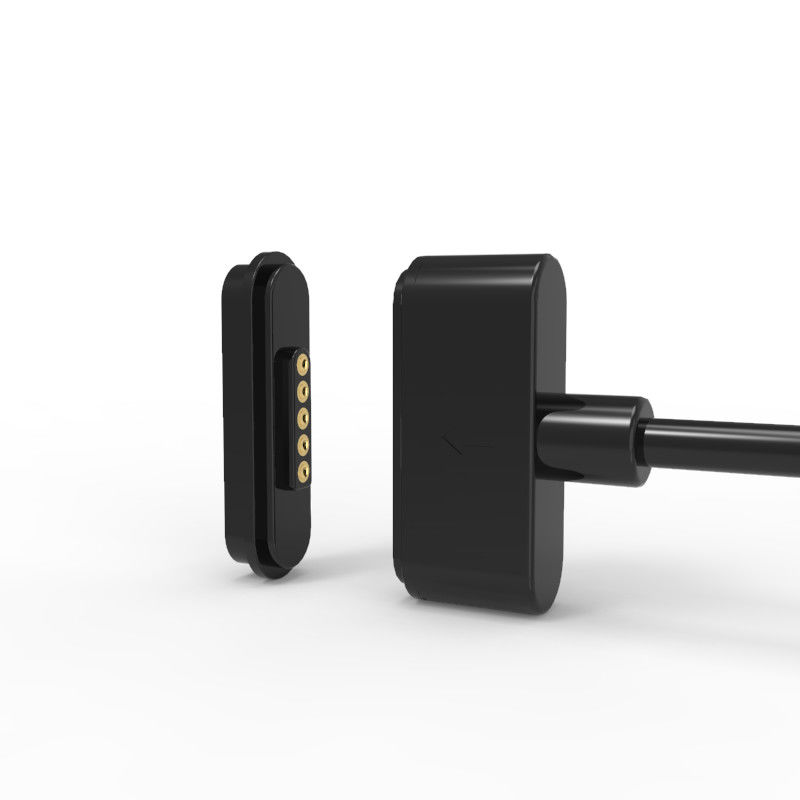

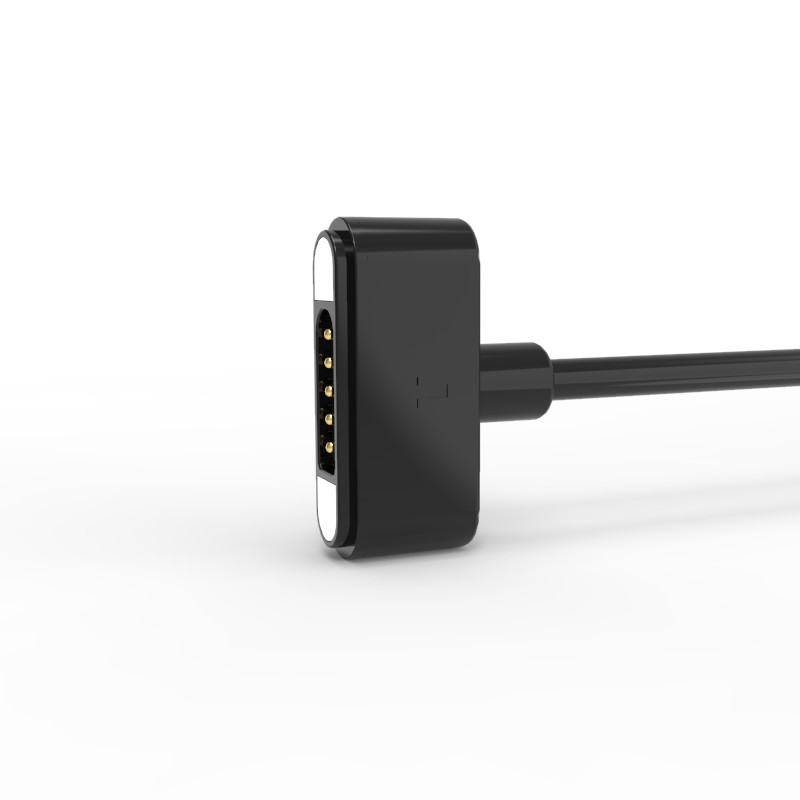

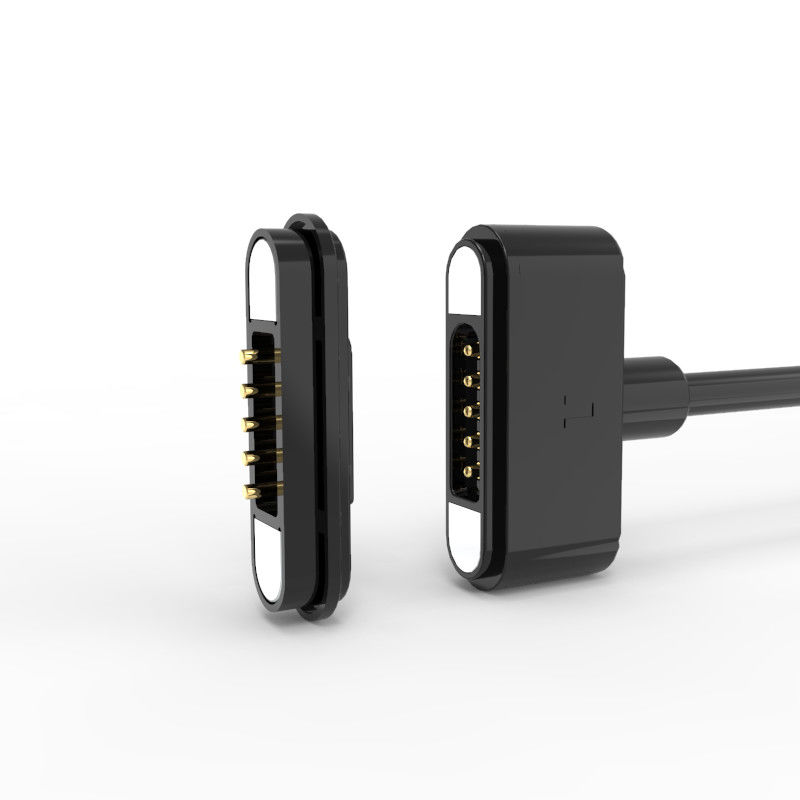

2.2mm pitch 5pins male magnetic charging cable connector with data sync(Gold-Plated Contacts, HTN Housing, NdFeB Magnet, TPE Jacket)
1. Key Features
.1-meter (1000mm) flexible cable with 4-core TPE insulation (OD: 3.5mm).
.Strong magnetic docking (>550G magnetic force) with polarity identification.
.12V/3A power delivery via gold-plated magnetic contacts.
.USB 2.0 data/power (stainless steel shell).
.High durability: 50,000+ mating cycles, flame-retardant (UL94 V-0).
2. Materials & Construction
| Component |
Specification |
| Pogo pin |
Brass , gold-plated surface (≤50mΩ contact resistance). |
| Plastic Housing |
HTN + 30% UL94 V-0 black (high-temperature resistant). |
| Magnet |
NdFeB permanent magnet (epoxy-coated option for salt spray resistance). |
| Outer Mold |
Black TPE 80A (flexible, abrasion-resistant). |
| USB Connector |
Stainless steel shell (USB 2.0). |
| Cable |
4-core, 1000mm long:
- Red/Black: 65×0.08mm strands (power).
- White/Green: 16×0.08mm strands (data).
- Jacket: Black TPE. |
3. Mechanical & Electrical Properties
| Parameter |
Value |
| Spring Force |
80g ± 20g @ 1.0mm height. |
| Magnetic Adhesion Force |
>550G. |
| Service Life |
50,000 cycles min. |
| Rated Voltage |
12V DC. |
| Continuous Current |
3.0A. |
| Peak Current |
4.0A (max). |
| Contact Resistance |
≤50mΩ. |
| High-Voltage Test |
AC/DC 1000V, 0.5mA, 3 sec. |
4. Environmental & Compliance
5Pin Male Cable Connector Technical Drawing (Key Dimensions):

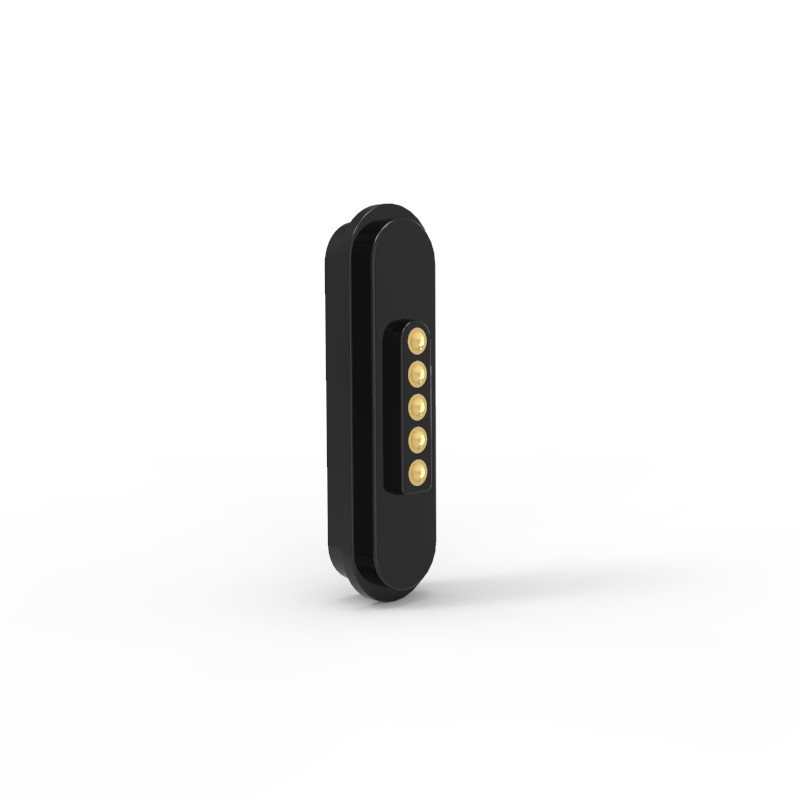

5Pin Female Magnetic Connector Technical Drawing (Key Dimensions):
Magnetic Cable Connectors Application:
