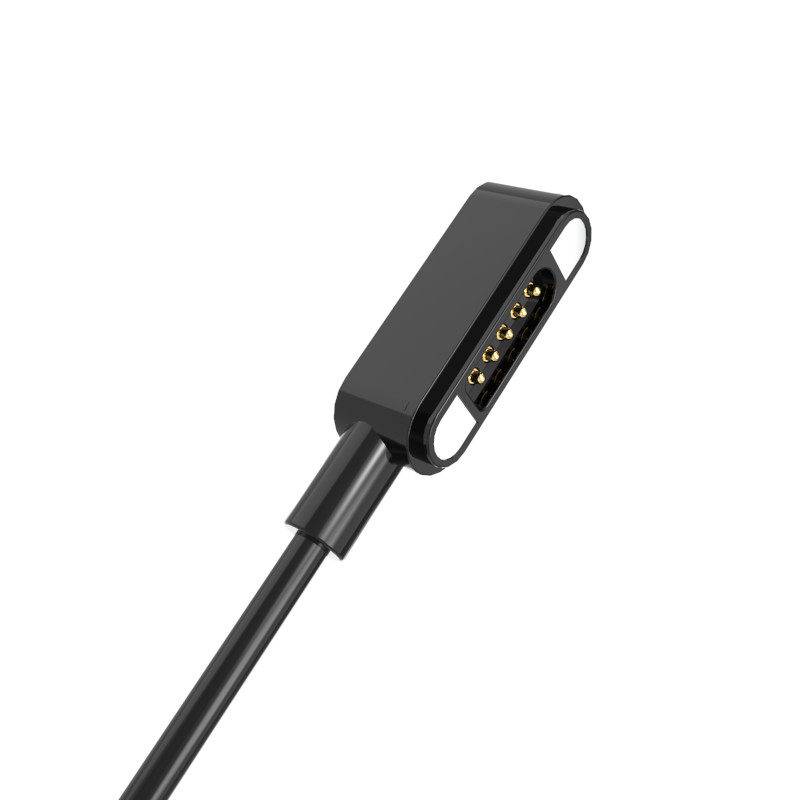

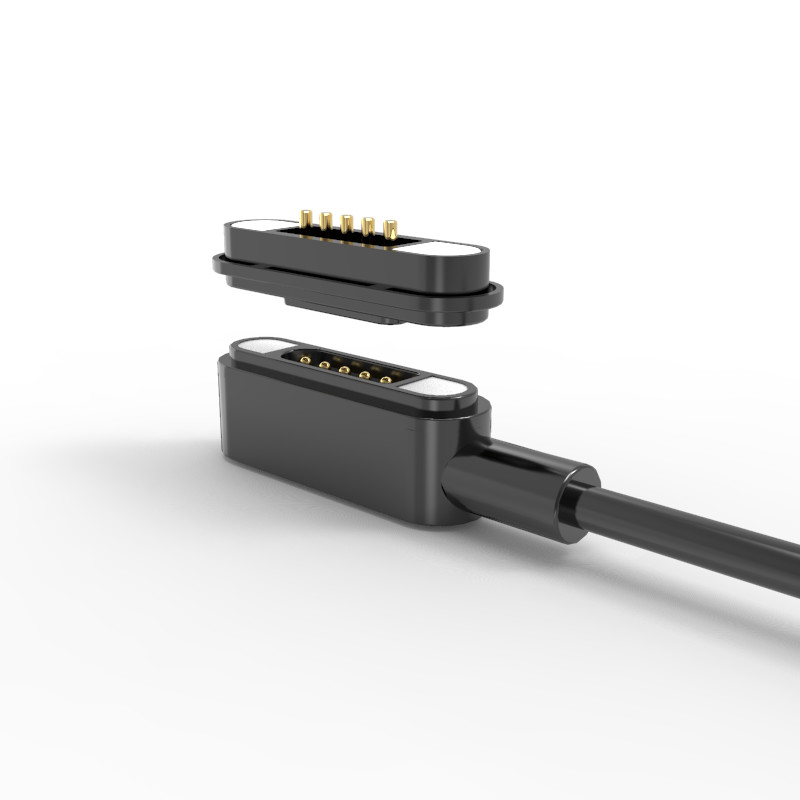

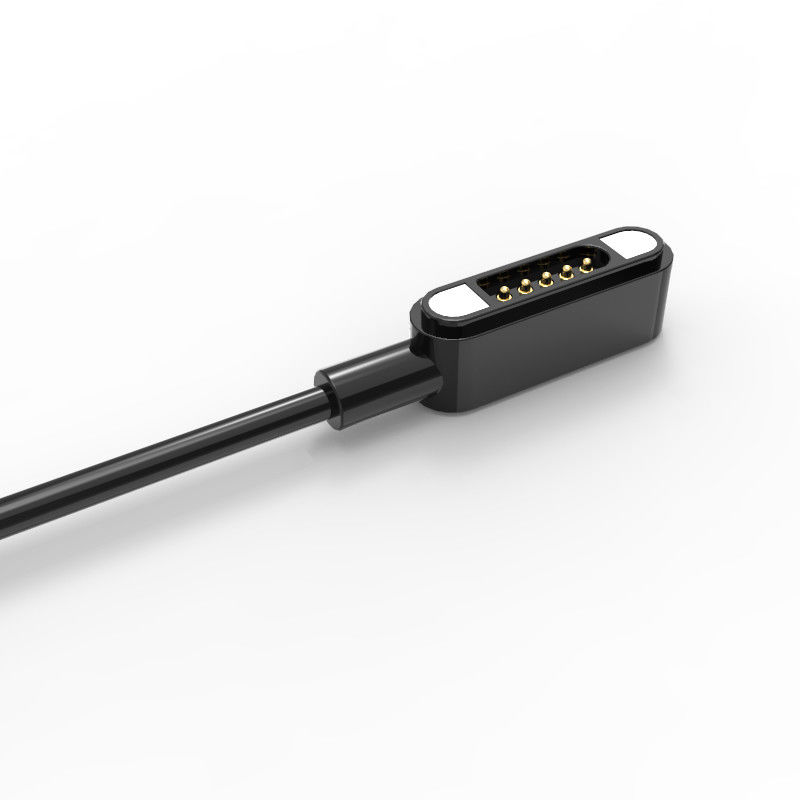

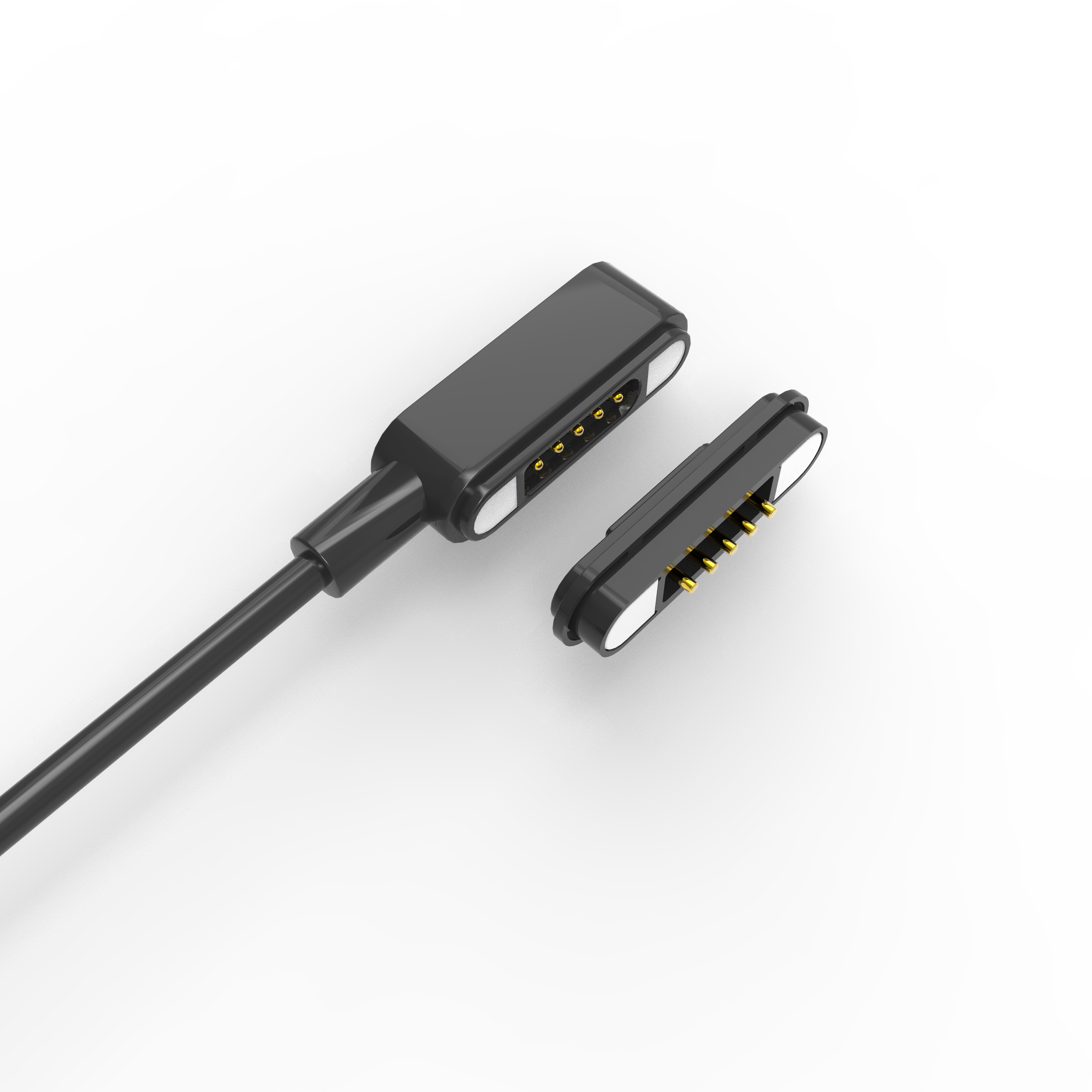

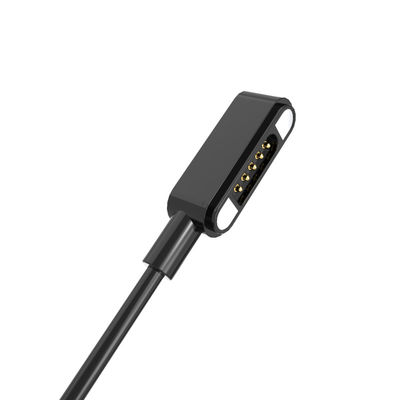

Spring loaded Magnetic Cable Connector 5 Pin Magnetic Data Connector Black

Magnetic Cable Connector Pogo 5 Pin Connector Spring-loaded Connector

1. Materials & Construction

Pogo Pin: Brass , gold-plated surface (ensures low contact resistance & corrosion resistance).

USB Connector: Stainless steel shell (USB 2.0) for durability and shielding.

Housing: HTN (High-Temperature Nylon) + 30% filler, UL94 V-0 rated (flame-retardant, withstands high temps).

Outer Mold (Joint): Black TPE 80A (flexible, abrasion-resistant thermoplastic elastomer).

Magnet:Neodymium Iron Boron (NdFeB) permanent magnet (high-performance, strong adhesion).

Cable: OD 3.5mm, 4-core

Red & Black: 65 strands × 0.08mm (tin-plated copper, higher current capacity).

White & Green: 16 strands × 0.08mm (tin-plated copper, likely for data/signal).

Insulation: Black TPE covering (flexible and durable)

2. Mechanical Properties

Spring Force: 80g ± 20g at 1.0mm working height (ensures stable contact pressure)

Magnetic Adhesion Force: >550G (secure male-female docking).

Service Life: 50,000+ cycles (high durability).

Safety Features: Anti-short-circuit design and polarity markings for correct alignment.

3. Electrical Properties

Rated Voltage: 12V DC.

Current Ratings:

Continuous: 3.0A.

Peak (Momentary): 4.0A max.

Contact Resistance: ≤50mΩ (low power loss).

Compliance: RoHS & REACH (environmentally friendly).

4. Applications

Modular Electronics: Wearables, IoT devices, detachable sensors.

PCB Connections: Soldered to boards or overmolded.

USB-Compatible Systems: Combines power delivery (12V/3A) with data via USB 2.0.

High-Reliability Uses: Automotive, medical, or industrial equipment (thanks to UL94 V-0 and 50k-cycle lifespan).

5Pin Magnetic Connectors Parameter:

5Pin Male  Cable Connector Technical Drawing (Key Dimensions):

5Pin Female Magnetic Connector Technical Drawing (Key Dimensions):

How to place the order
* You send us drawing or sample

* Our professional engineering team conducts the assessment

* You confrim the drawing and we make the sample to send you

* You test the sample and approved,then place an order and pay 50% deposit

* We start to make the product

* When the goods is done, we take photoes for your check and you then pay the balance

* We deliver the products to you with DHL, TNT,UPS,Fedex

Payment Term: T/T,50% Deposit,50% Balance

Payment method: T/T,PayPal,OCBC

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable

Any question, please send to union@upetech.net
