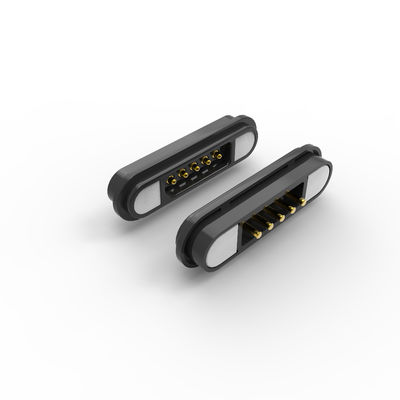

5pin DIP Magnetic Connector 3A Male and Female Power Charger Terminal
This product appears to be a magnetic docking connector with a gold-plated brass needle contact, HTN plastic housing, and a neodymium magnet for secure attachment. Below is a structured breakdown of its key features and specifications:
1. Materials & Construction
Pogo Pin: Gold-plated brass (yellow metal needle part) for corrosion resistance and good conductivity.
Plastic Housing: HTN (High-Temperature Nylon) + 30% filler, UL94 V-0 rated (flame-retardant, self-extinguishing). Black color, high-temperature resistant.
Magnet: Neodymium Iron Boron (NdFeB) permanent magnet (high magnetic strength).
Optional epoxy resin coating for corrosion resistance (passes 48-hour salt spray test).
2. Mechanical Properties
Spring Force: 80g ± 20g at 1.0mm working height.
Docking Magnetic Force: >600g (ensures strong male-female attachment).
Service Life: 50,000+ mating cycles (durable for repeated use).
Anti-Short-Circuit Design: Prevents accidental electrical shorts.
Polarity Marking: Clear identification for correct electrical direction.
3. Electrical Properties
Rated Voltage: 12V DC.
Continuous Current: 3.0A.
Contact Resistance: ≤50mΩ (low impedance for efficient power transfer).
High-Voltage Test: AC 1000V / DC 1000V, 0.5mA for 3 seconds (ensures insulation integrity).
4. Environmental & Compliance
RoHS & REACH compliant (free of hazardous substances).
Flame Rating: UL94 V-0 (suitable for strict safety requirements).
5. Applications
This magnetic connector is versatile for:
-
PCB Soldering: Plug-in mounting for circuit boards.
-
Overmolding/Coating: Compatible with post-solder encapsulation.
-
Terminal Connection: Can interface with wire terminals.
-
Injection Molding: Suitable for molded assemblies.
-
Direct Wire Soldering: Allows manual wire attachment.
Why Choose UPE:
. Fast prototyping: 3-5 days for samples
. Cost-effective: Competitive MOQ pricing
. Quality assurance: 100% automated testing
. High-tech production with precision engineering
. Systematic quality control for consistent performance
5Pin Magnetic Connectors Parameter:
|
Name
|
5Pin Magnetic connector
|
|
Type
|
DIP
|
|
Pin
|
5pin or customized
|
|
Pitch
|
2.20mm
|
|
Pogo pin
|
Brass
|
|
Housing
|
Black HTN+30%GF UL94 V-0
|
|
Magnet
|
NdFeB N52 Plating Ni
|
|
Magetic force
|
600G
|
|
Spring force
|
80g±20g,at 1.0mm working storke.
|
|
Mechanical life
|
50000 cycle Min..
|
|
Current
|
3.0A
|
|
Voltage
|
DC 12V
|
|
Contact resistance
|
50mΩ Max (PIN).
|
|
High voltage test
|
AC1000 V0.5mA 3SEC / DC 1000V 0.5mA 3 SEC.
|
|
Salt spray test
|
48H
|
|
Layout tolerance
|
±0.05mm
|
|
Certification
|
ROHS or REACH compliant product
|
|
Test
|
100% open and short test
|
5Pin Male Connector Technical Drawing (Key Dimensions):
5Pin Female Magnetic Connector Technical Drawing (Key Dimensions):
Advantages of Magnetic Connector:
1)Automatic adsorption connected experience; Easy operation;
2)Uses a magnetic interface to remove the device easier.
3)High life cycle. It supports 50,000-300,000 reattachment life times;
4)It is easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68);
5)Support a high current (3A-20A), faster recharge;
6)Excellent corrosion rating (48H-120H) meet the harsh environments；
8)Shape customized to meet with product shape matching, improve product selling point;
9)Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish
the direction( It is user-oriented and user-friendly)
10)Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);
11)Development time is short, low-cost mold for customization;
12)Provide a reliable high RF signal transmission. Our connector is USB 2.0
