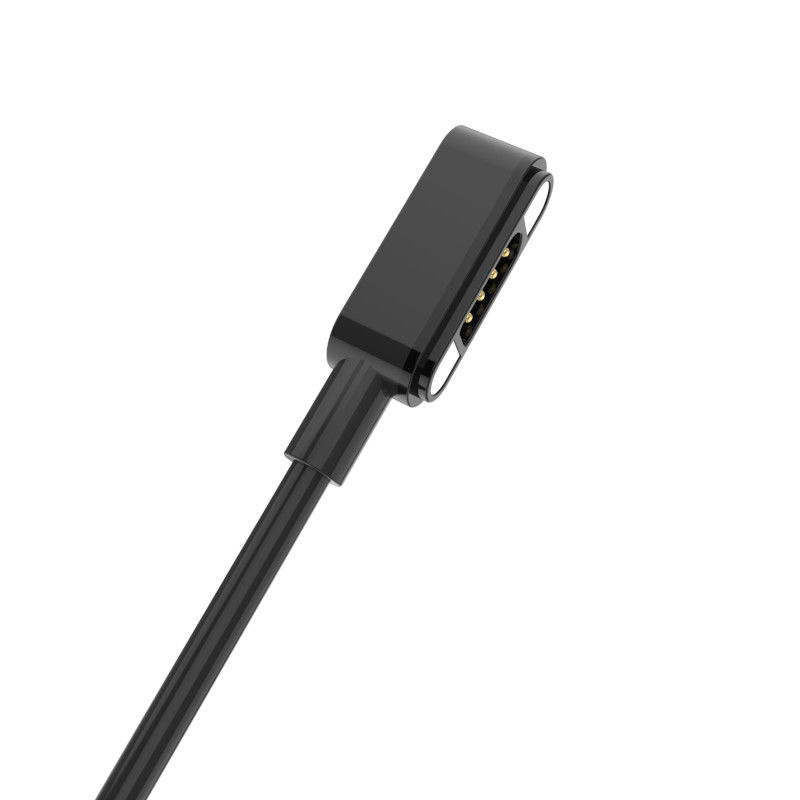

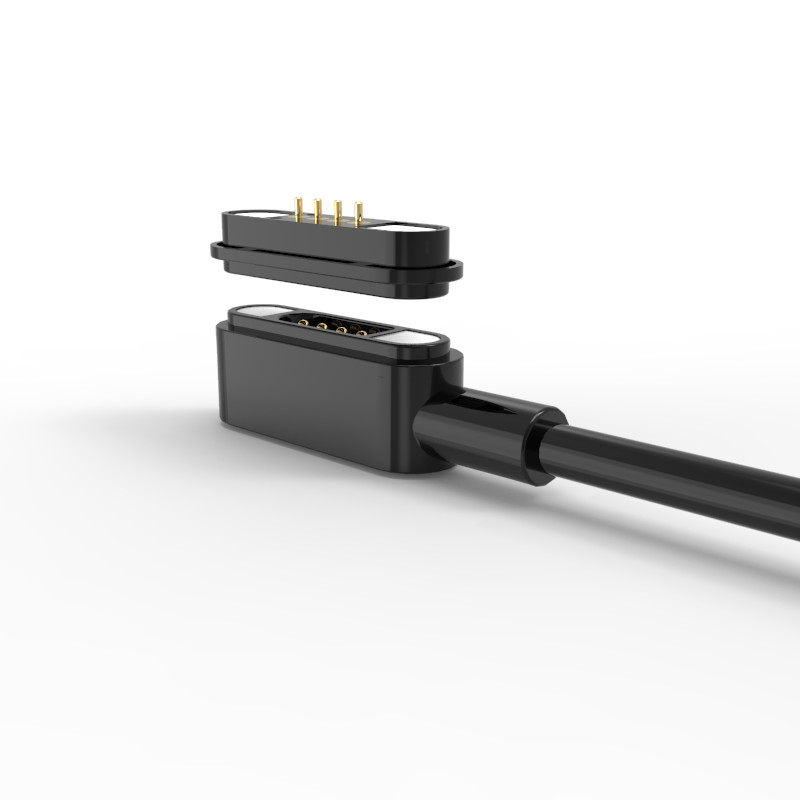

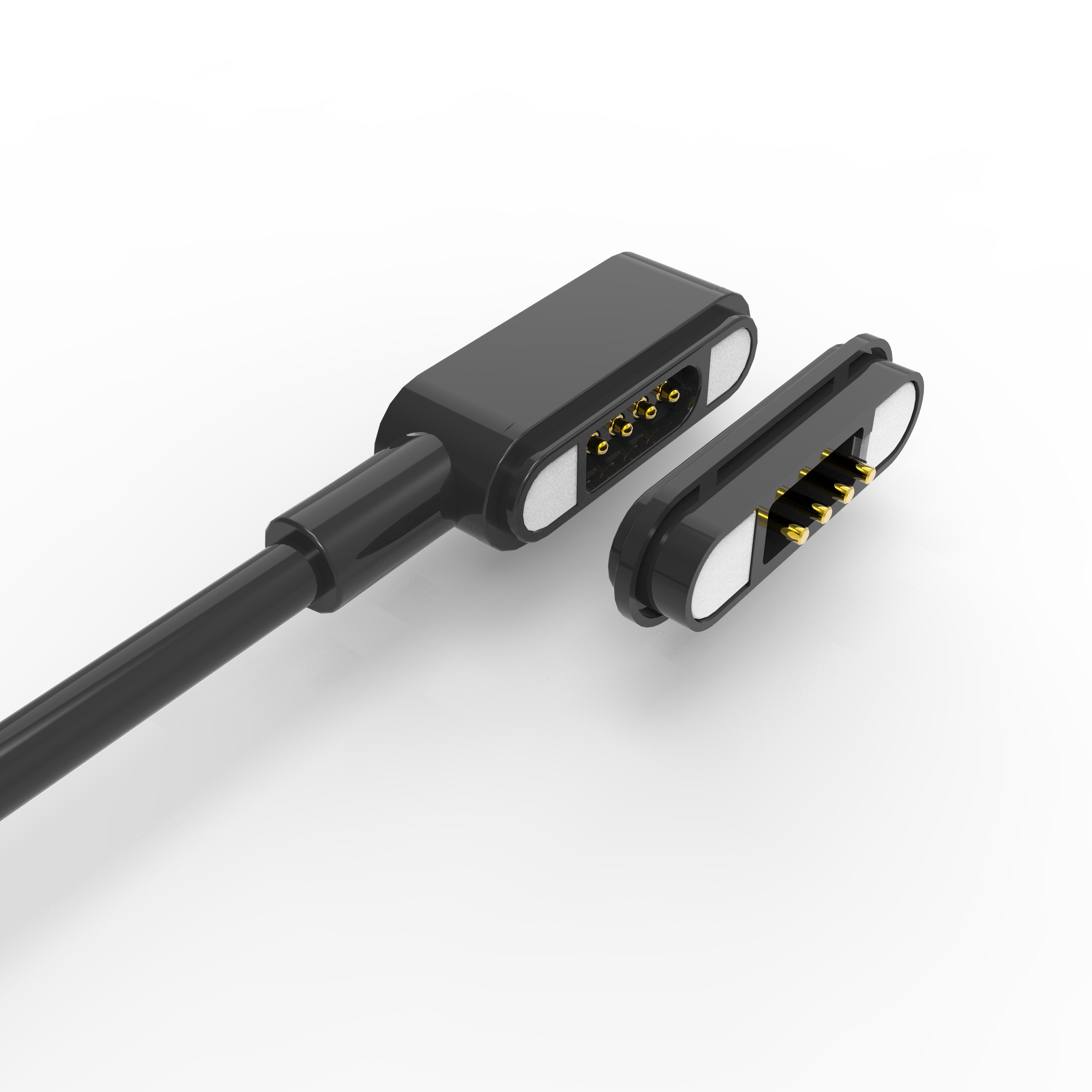

TPE cable 4pin pogo pin magnetic USB cable connector for burglar alarm
...Materials:
The metal needle part is plated with gold on the brass surface;
The hard plastic material is made of HTN+30% UL94 V-0 black, which can withstand high temperatures.
The magnet adopts high-performance permanent magnet neodymium iron boron;
Black TPE 80A outer mold of the joint;
Wire OD3.5mm 4C (red and black: 65*0.08, white and green: 16*0.08,tin-plated copper wire)Covered with black TPE
USB: stainless steel shell USB2.0.
...Mechanical properties:
Spring force: 80g ± 20g at 1.0 working height,
Service life: 50,000 times minimum.
...Electrical properties:
Reference voltage: 12 V,
Continuous working current:3.0A;
Maximum momentary current:4.0A maximum;
Contact static impedance of the needle: 50mΩ Max (PIN).
The product adopts environmental protection materials, ROHS, REACH;
The adhesive force of the magnetic male and female docking is more than 550G.
Product Introduction and Dxplaination:
Product anti-short-circuit structure design;
Polarity and electrical direction are clearly identified.
2Pin Magnetic Cable Connectors Parameter:
|
Name
|
Magnetic Cable connector
|
|
Type
|
DIP
|
|
Pin
|
4pin or customized
|
|
Pitch
|
2.20mm
|
|
Cable lenght
|
1000mm±20
|
|
Cable material
|
TPE
|
|
Pogo pin
|
Brass
|
|
Housing
|
Black HTN+30%GF UL94 V-0
|
|
Magnet
|
NdFeB N52 Plating Ni
|
|
Magetic force
|
550G
|
|
Spring force
|
80g±20g,at 1.0mm working storke.
|
|
Mechanical life
|
50000 cycle Min..
|
|
Continuous working current
|
3.0A
|
|
Maximum momentary current
|
4.0A maximum
|
|
Voltage
|
DC 12V
|
|
Contact resistance
|
50mΩ Max (PIN).
|
|
High voltage test
|
AC1000 V0.5mA 3SEC / DC 1000V 0.5mA 3 SEC.
|
|
Salt spray test
|
48H
|
|
Layout tolerance
|
±0.05mm
|
|
Certification
|
ROHS or REACH compliant product
|
|
Test
|
100% open and short test
|

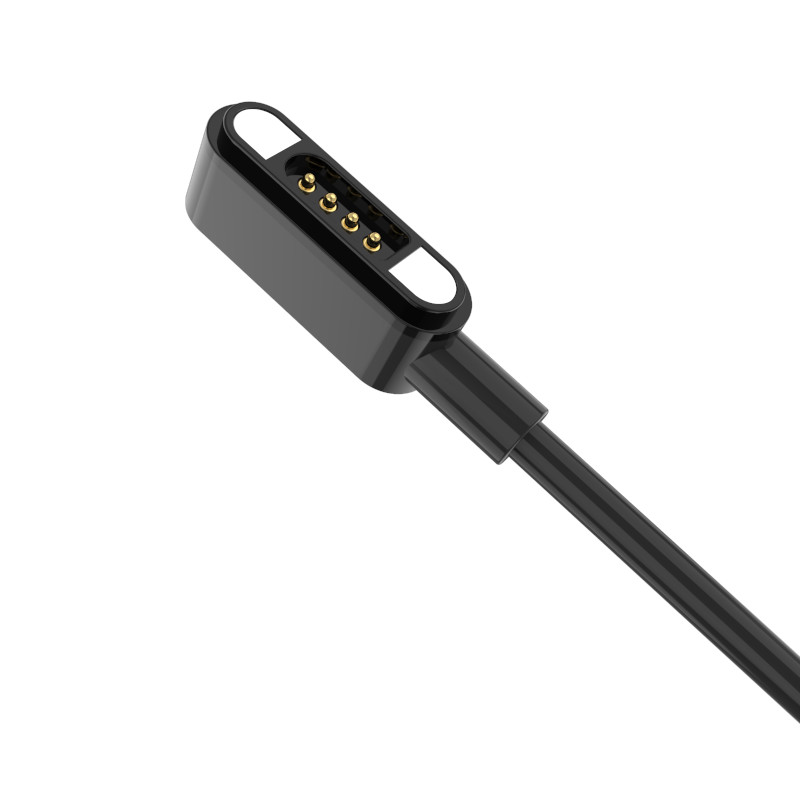

4Pin Male Magnetic Cable Connector Drawing Size:

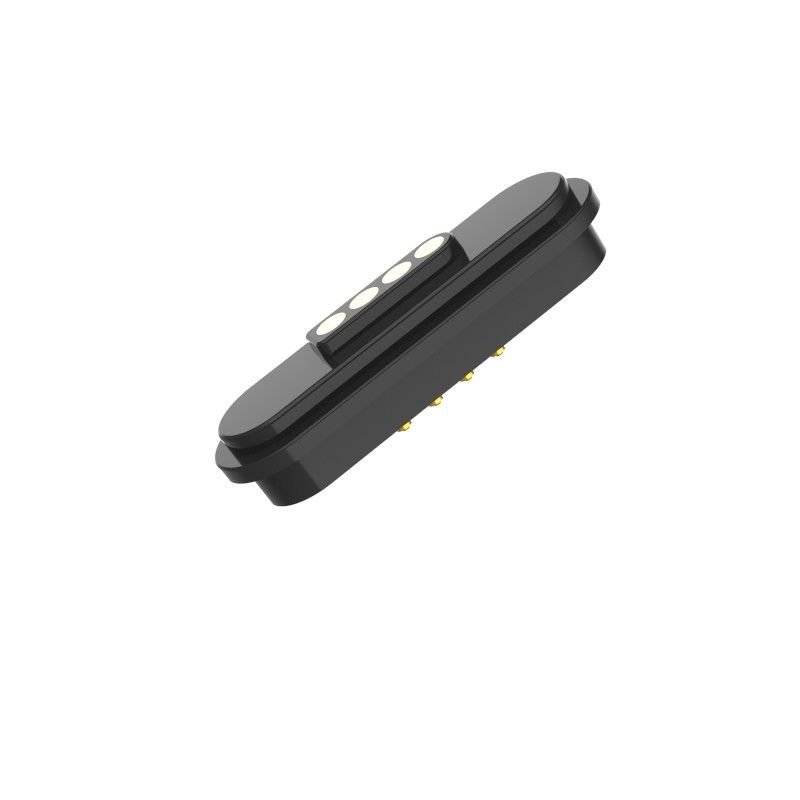

4Pin Female Magnetic Connector Drawing Size:
Advantages of Magnetic Connector:
1)Automatic adsorption connected experience; Easy operation;
2)Uses a magnetic interface to remove the device easier.
3)High life cycle. It supports 50,000-300,000 reattachment life times;
4)It is easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68);
5)Support a high current (3A-20A), faster recharge;
6)Excellent corrosion rating (48H-120H) meet the harsh environments；
8)Shape customized to meet with product shape matching, improve product selling point;
9)Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish
the direction( It is user-oriented and user-friendly)
10)Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);
11)Development time is short, low-cost mold for customization;
12)Provide a reliable high RF signal transmission. Our connector is USB 2.0
