600G magnetic force 4pin male and female magnetic right angle pogo pin connector
...Mechanical properties:
Spring force: 80g ± 20g at 1.0 working height,
Service life: 50,000times minimum.
...Electrical properties:
Reference voltage: 12 V,
Continuous working current: 5.0A;
High voltage test: AC1000V0.5mA 3SEC / DC 1000V 0.5mA 3 SEC.
UPE company use high technology in production , and has systematical management system. We have got the ISO9001 certification, and all the products we make can meet the RoHS requirement. Besides, we always provide short develop lead time and offer competitive price and stable quality to our customers.
Our magnetic connector products are widely use in electronic products, computer, tablet, mobile phone, smart bracelet, VR, digital camera, automobile, medical equipment etc . We got high reputation from our customers from all areas
...Product application explaination (not limited to the following):
1. The PCBboard can be soldered with a plug-in;
2. Mold molding and injection molding;
4pin magnetic connectors parameter:
|
Name
|
4Pin Magnetic connectors
|
|
Pin
|
4pin or customized
|
|
Pitch
|
2.20mm
|
|
Type
|
Right angle
|
|
Pogo pin
|
Brass
|
|
Housing
|
Black HTN+30%GF UL94 V-0
|
|
Magnet
|
Neodymium iron boron
|
|
Magnet grade
|
N52(As requirement)
|
|
Magetic force
|
600G
|
|
Spring force
|
80g±20g,at 1.0mm working storke.
|
|
Mechanical life
|
50000 cycle Min..
|
|
Current
|
A
|
|
Voltage
|
DC 12V
|
|
Contact resistance
|
50mΩ Max (PIN).
|
|
High voltage test
|
AC1000 V0.5mA 3SEC / DC 1000V 0.5mA 3 SEC.
|
|
Salt spray test
|
48H
|
|
Certification
|
ROHS or REACH compliant product
|
|
Test
|
100% open and short test
|

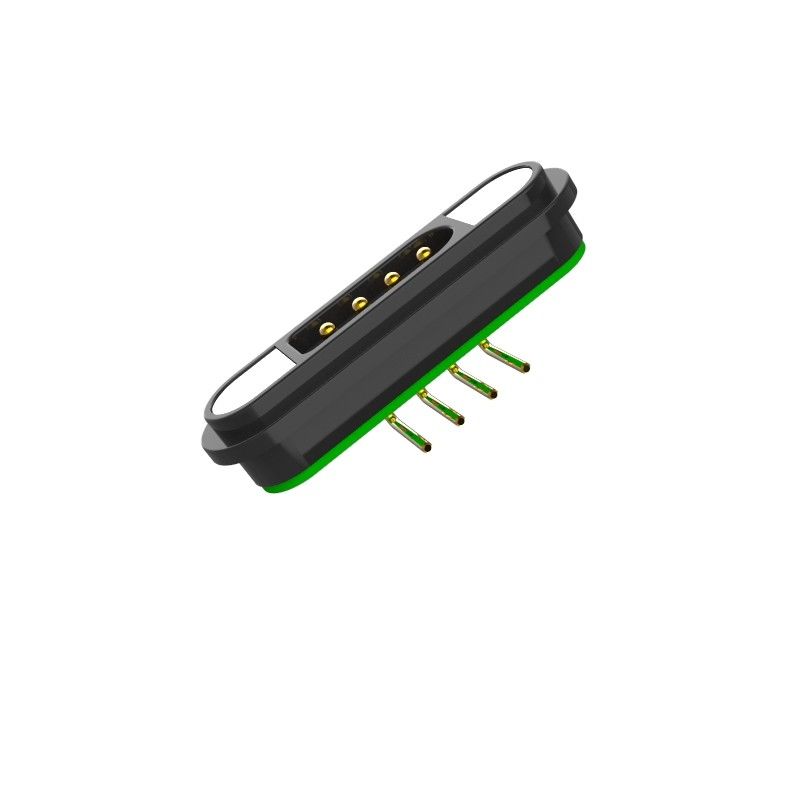

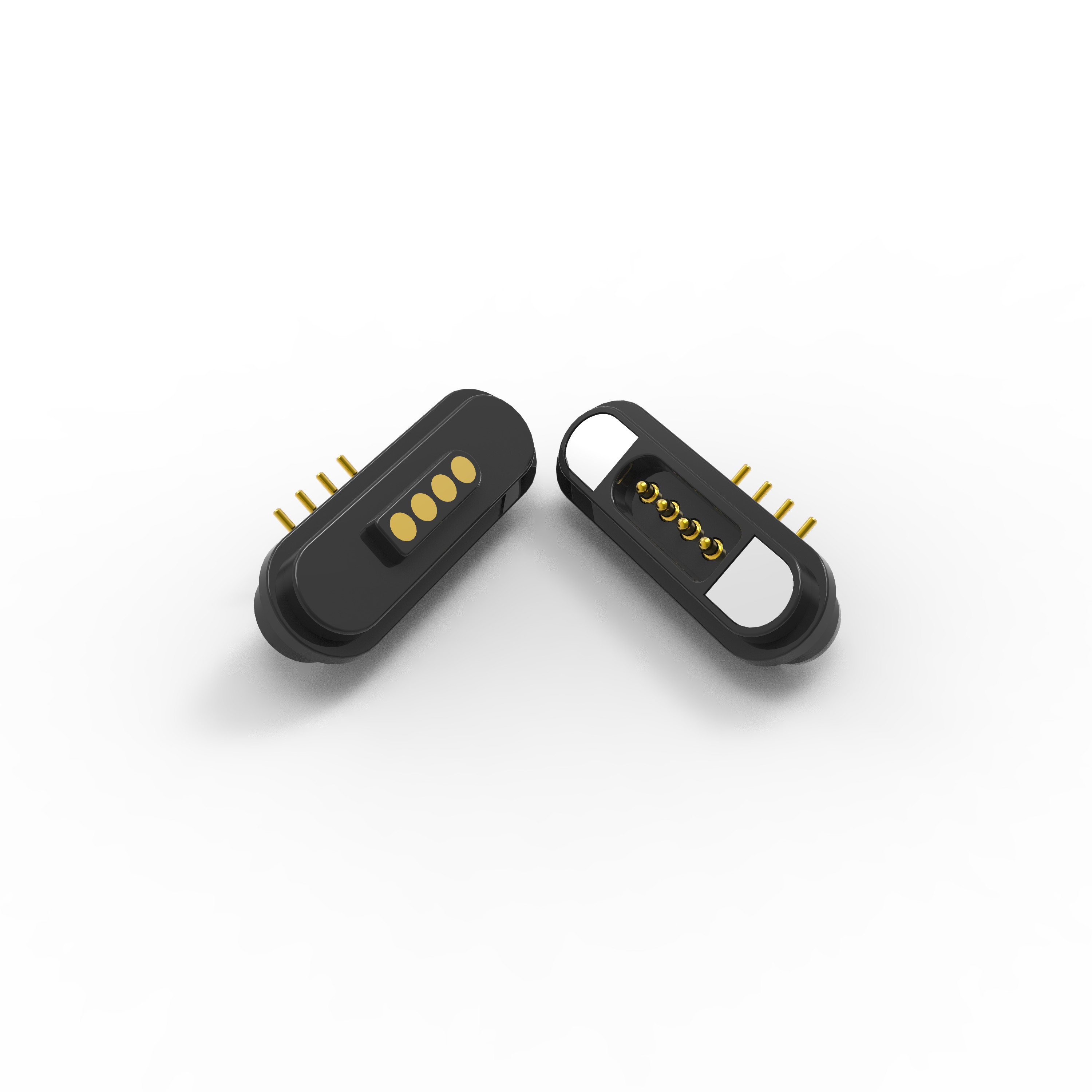

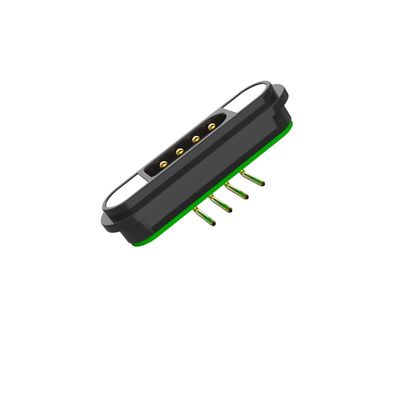

4pin male right angle magnetic connectors:

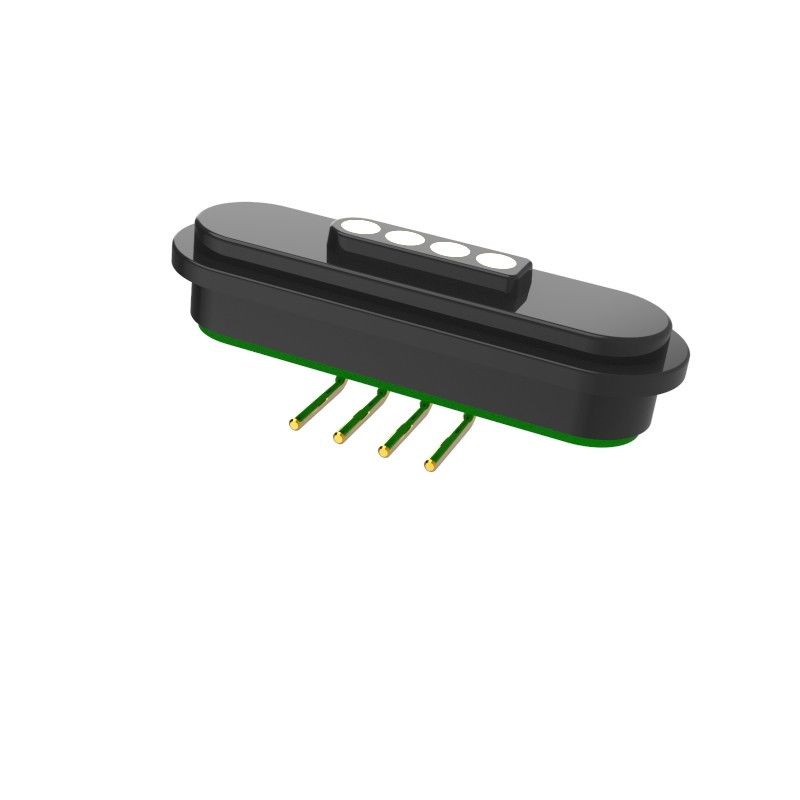

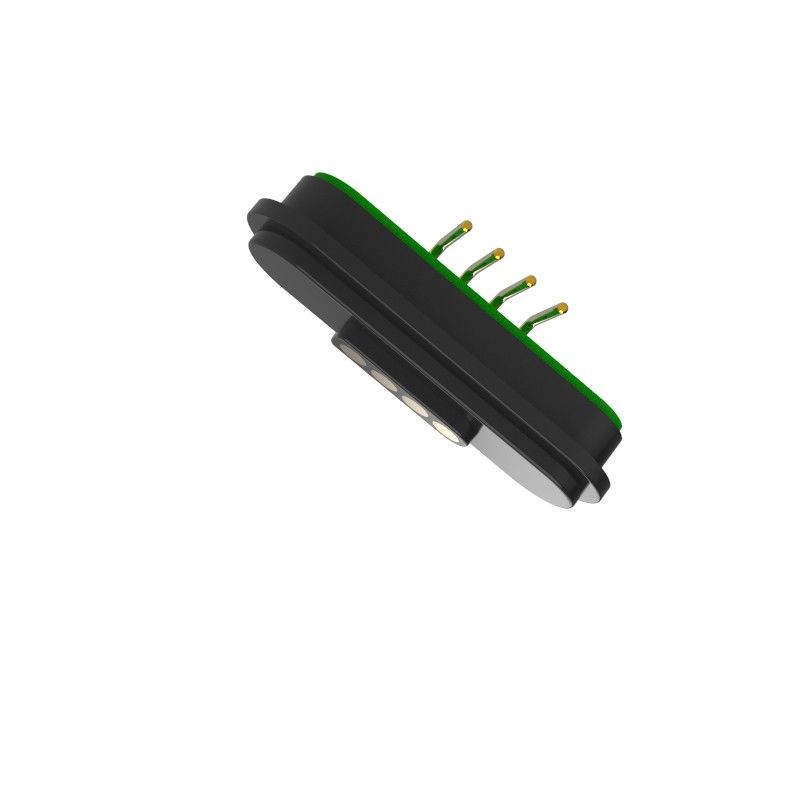

4pin female right angle magnetic connectors:
Advantages of Magnetic Connector:
1)Automatic adsorption connected experience; Easy operation;
2)Uses a magnetic interface to remove the device easier.
3)High life cycle. It supports 50,000-300,000 reattachment life times;
4)It is easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68);
5)Support a high current (3A-20A), faster recharge;
6)Excellent corrosion rating (48H-120H) meet the harsh environments；
8)Shape customized to meet with product shape matching, improve product selling point;
9)Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish
the direction( It is user-oriented and user-friendly)
10)Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);
11)Development time is short, low-cost mold for customization;
12)Provide a reliable high RF signal transmission. Our connector is USB 2.0
Why do customers choose UPE?
1. Professional customization service
2. Fast sample production capability
3. Strict quality control system
4. Processing with imported components
5. High-precision test equipment
6. Reasonable cost control procedures
7. Product environmental standards
Magnetic connectors application:
How to place the order
* You send us drawing or sample
* Our professional engineering team conducts the assessment
* You confrim the drawing and we make the sample to send you
* You test the sample and approved,then place an order and pay 50% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to you with DHL, TNT,UPS,Fedex
We can provide design service
Payment method: T/T,PayPal,OCBC
Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day
Production Lead Time:10-15Working day
Made For: America,Europe,Asia,South African
Trade Term: EXW
Freight: Air,Sea,Express
Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
