5A 3 Pin Magnetic Connector Right Angle Magnetic Pogo Pin Connectors 2.80mm Pitch

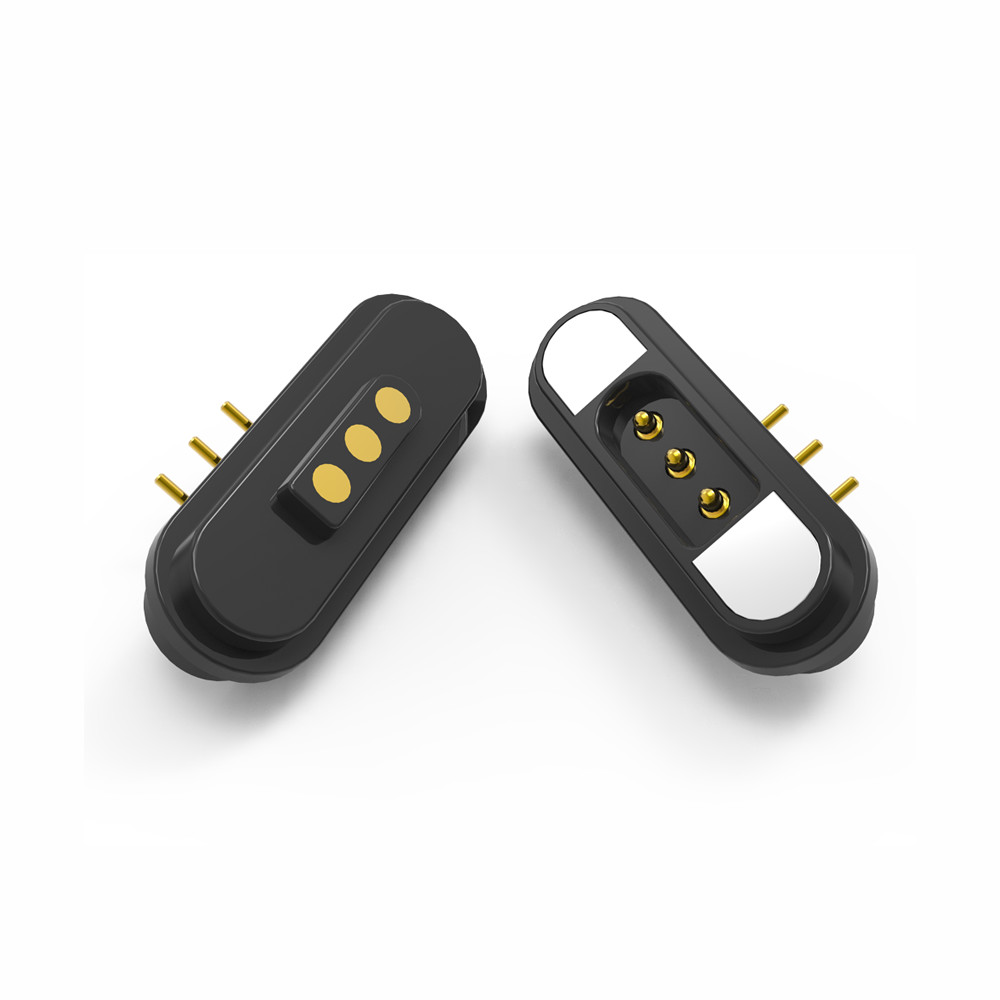

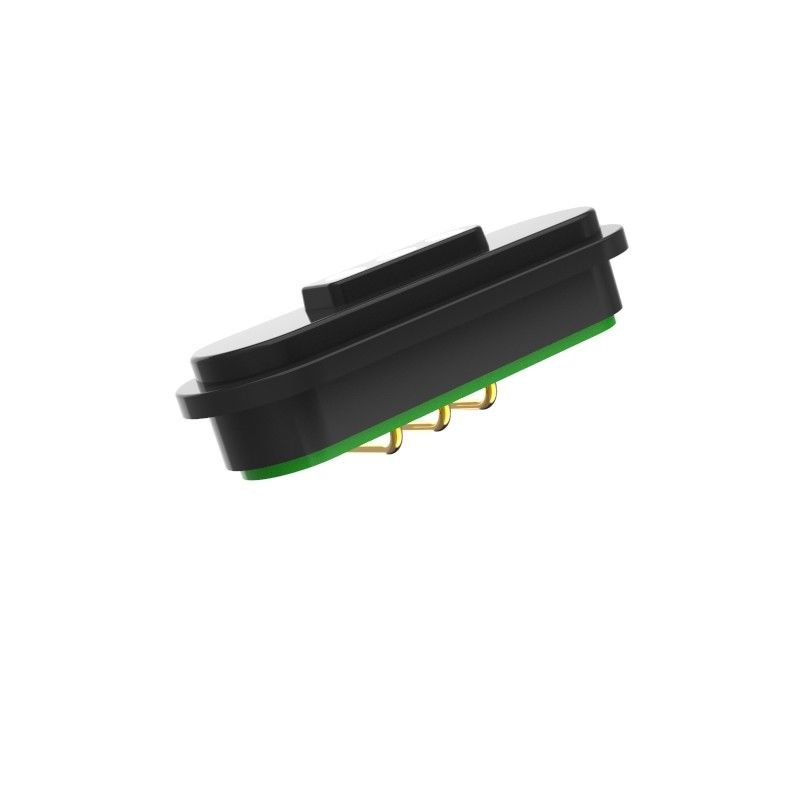

2.80mm pitch 3pin male female right angle contact magnetic pogo pin connector

...Material:
The metal needle part is plated with gold on the brass surface;
The hard plastic material is made of HTN+30%UL94 V-0 black, which can withstand high temperatures.

...Mechanical properties:
Spring force: 80g ± 20g at 1.0 working height,
Service life: 50,000times minimum.

...Electrical properties:
Reference voltage: 12 V,
Continuous working current: 5.0A;
High voltage test: AC1000V0.5mA 3SEC / DC 1000V 0.5mA 3 SEC.

...Magnetic connector introduction and explaination:
* The product adopts environmental protection materials, ROHS,REACH;
* The attraction force of the magnetic male and female docking is more than 600G.
* Magnetic power connector is anti-short-circuit structure design;
* Polarity and electrical direction are clearly identified.
* (The magnet can be coated with epoxy resin, and the salt spray test can pass 48hours.)
* The pin feet are fixed on the PCB board, and the pin spacing size is stable.

...Product application explaination (not limited to the following):
1. The PCBboard can be soldered with a plug-in;
2. Mold molding and injection molding;

3pin magnetic connectors parameter:

3pin male right angle magnetic connectors:

3pin female right angle magnetic connectors:

Advantages of Magnetic Connector:

1)Automatic adsorption connected experience; Easy operation;

2)Uses a magnetic interface to remove the device easier.

3)High life cycle. It supports 50,000-300,000 reattachment life times;

4)It is easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68);

5)Support a high current (3A-20A), faster recharge;

6)Excellent corrosion rating (48H-120H) meet the harsh environments；

8)Shape customized to meet with product shape matching, improve product selling point;

9)Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish

the direction( It is user-oriented and user-friendly)

10)Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);

11)Development time is short, low-cost mold for customization;

12)Provide a reliable high RF signal transmission. Our connector is USB 2.0
