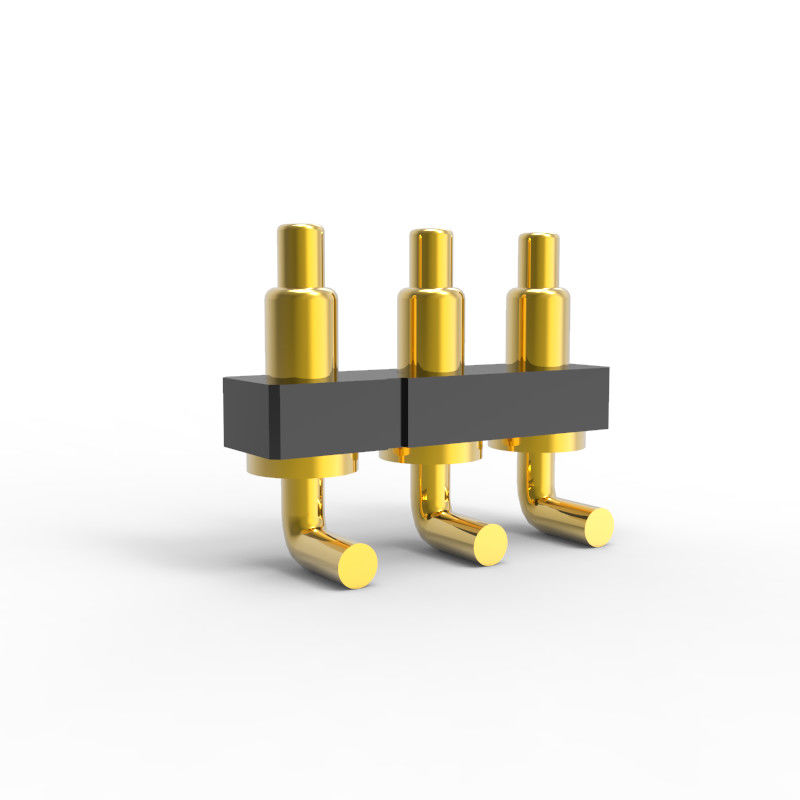

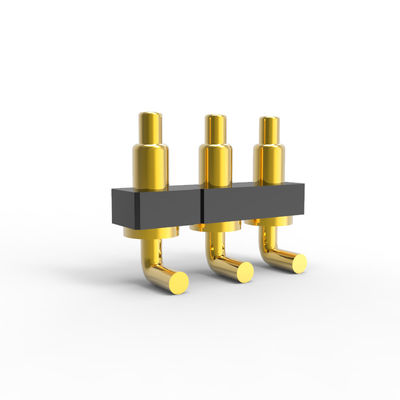

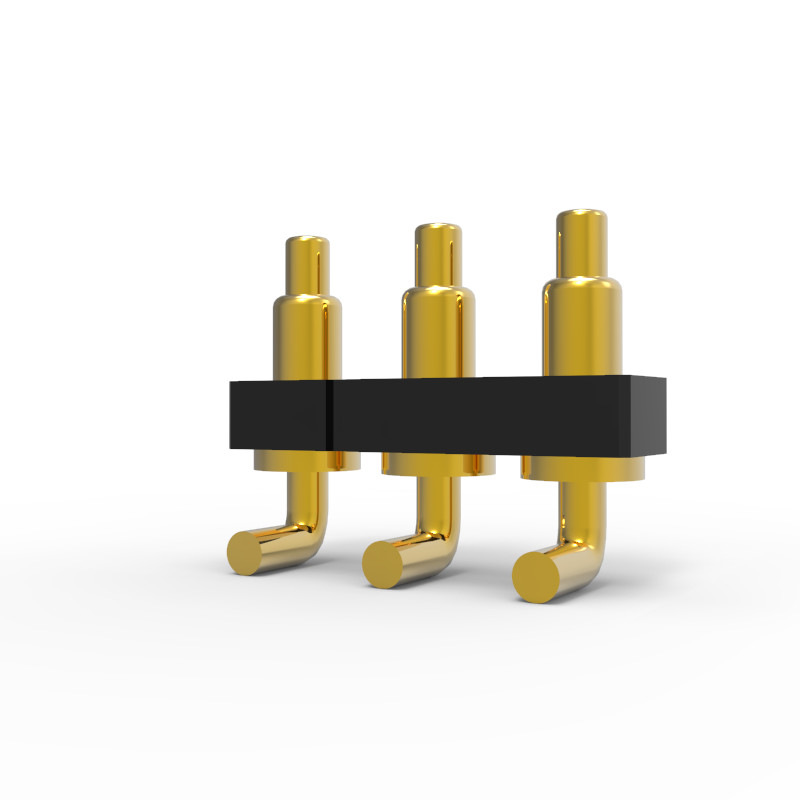

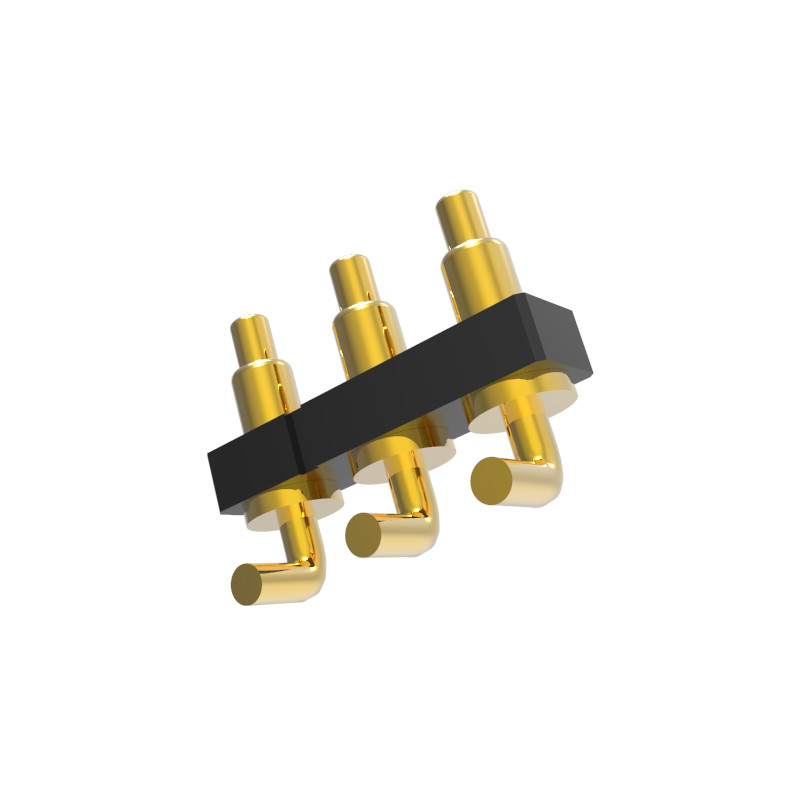

2.54mm pitch 3pin right angle spring pogo pin connector with 2.54mm height housing.
The tail of the Pogo Pin is bent, it can providing designers with more choices in the use of space, the tail can also be soldered with wire.
Pogo Pin is a precision connector used in mobile phones and other electronic products.
It is widely used in various electronic products and plays a role in signal transmission connection.
Its shape structure is divided into: flat bottom type, plug plate type, bending type, double needle shaft, thread type, welding wire type,
side hole type, etc.
The internal structure is divided into: back drilling type, slicing slope, slicing slope with round ball, through hole type, tail plug type, double head type, etc.
Plating selection: regular gold plating, nickel plating, etc.
2.54mm pitch right angle spring loaded connector parameter list:
|
Insulator
|
Black plastics(265℃) UL94 V-0
|
|
Plunger
|
Brass 5u” Au over 60~100u” Ni
|
|
Barrel
|
Brass 5u” Au over 60~100u” Ni
|
|
Spring
|
SUS surface treatment
|
|
Connector type
|
Male
|
|
Color
|
Black,Yellow
|
|
Pitch
|
2.54mm or depends on customer requirements
|
|
Pin
|
3pin or depends on customer requirements
|
|
Application
|
PCB,AV equipment,medical equipment,military communication,aerospace,Phone watch, electronic cigarette
|
|
Certificate
|
SO9001/ROHS2.0/REACH/MSDS/SGS
|
|
Packing
|
1000pcs/PE bag( according to customer requirements)
|
|
Spring force
|
70g+/-20g at 1.0mm working stroke
|
|
Life test
|
100,000 cycles
|
|
Rated current
|
3A Max.
|
|
Voltage
|
DC 12V
|
|
Contact resistance
|
50 milliohm Max
|
|
Salt spray test
|
48H
|
|
Certification
|
ROHS or REACH compliant product
|
|
Test
|
100% open and short test
|
2.54mm pitch standard 2pin-40pin Pogo pin connector with right angle
Advantages of UPE Pogo Pin Connector
Pogo Pin Connector, commonly known as spring pins or pogo pins, offer several advantages:
Reliability: UPE Pogo pins using CLIP Technology provide a consistent and reliable electrical connection, even in environments subject to vibration and mechanical shock.
Compact Design: Their small size allows them to fit into tight spaces, which is ideal for modern, compact electronic devices.
Flexibility: Pogo pins can adapt to surface variations, ensuring a stable connection even if the mating surfaces are not perfectly aligned.
Ease of Use: They are user-friendly, with straightforward installation and maintenance.
Durability: They are designed to withstand numerous cycles of connection and disconnection, making them highly durable
Our Advantage and your choice:
. UPE professional customized high current Pogo Pin with 15A-30A series, it has been mass produced.
. UPE developed 1.27mm,2.0mm 2.54mm pitch standard male and female 2pin-40pin Pogo pin connector with SMT / DIP / Right Angle / Solder Cup.
. Pogo Pin Life test up to 1000,000 cycles.
. All products can pass HF, RoHS REACH standard.
. 100% electrical test provided report before delivery the goods.
. Custom of various shapes is available, small structure and high current.
Pogo Pin type structure and description:
SMT: Good stability, the bottom of the Barrel is a flat bottom design, which is easy to solder on the PCB board.
DIP: There is a positioning pin at the tail of the Barrel. When welding with the PCB, no deviation will occur, good positioning effect and firm
welding.
Double Head: The design of the double head Pogo pin provides designers with more flexibility in the bi-directional board-to-board
connection ,the double head pin does not need to be welded.
Right Angle: The tail of the Pogo Pin is bent, providing designers with more choices in the use of space , the tail can also be soldered with wire
Solder Cup: Suitable for cable product, easy to weld with wire
Screw-type: The products with special specifications can meet the different needs of customers, and can be customized according to the needs
of customers.
Why do customers choose UPE?
1. Professional customization service
2. Fast sample production capability
3. Strict quality control system
4. Processing with imported components
5. High-precision test equipment
6. Reasonable cost control procedures
Pogo Pin Connector Application Field:
How to place the order
* You send us drawing or sample
* Our professional engineering team conducts the assessment
* You confrim the drawing and we make the sample to send you
* You test the sample and approved,then place an order and pay 50% deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you then pay the balance
* We deliver the products to you with DHL, TNT,UPS,Fedex
Payment Term: T/T,50% Deposit,50% Balance
Payment method: T/T,PayPal,OCBC
Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day
Production Lead Time:10-15Working day
Made For: America,Europe,Asia,South African
Trade Term: EXW
Freight: Air,Sea,Express
Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
Any question, please send to union@upetech.net
