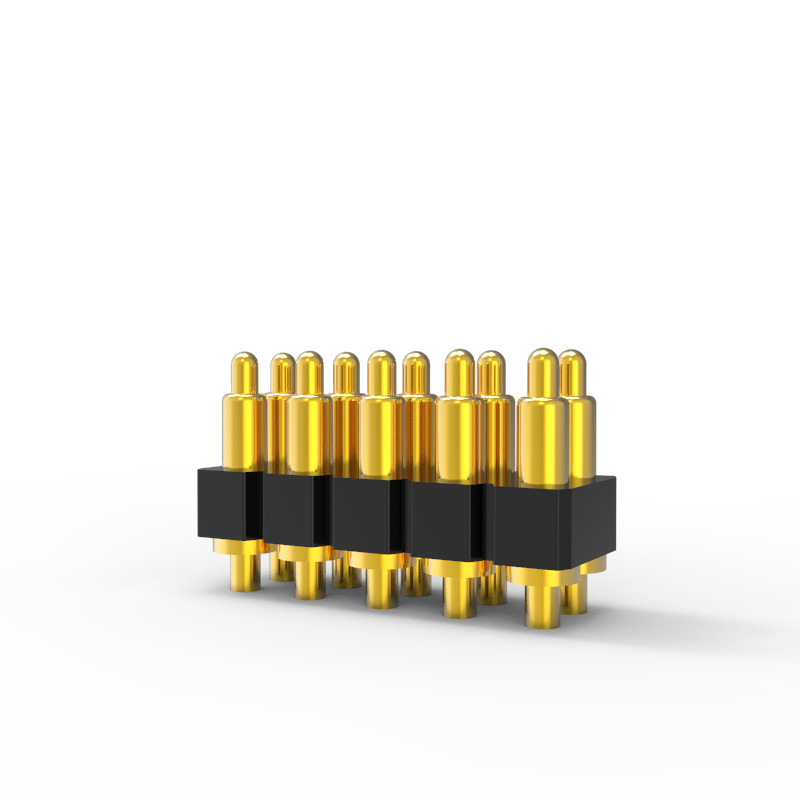

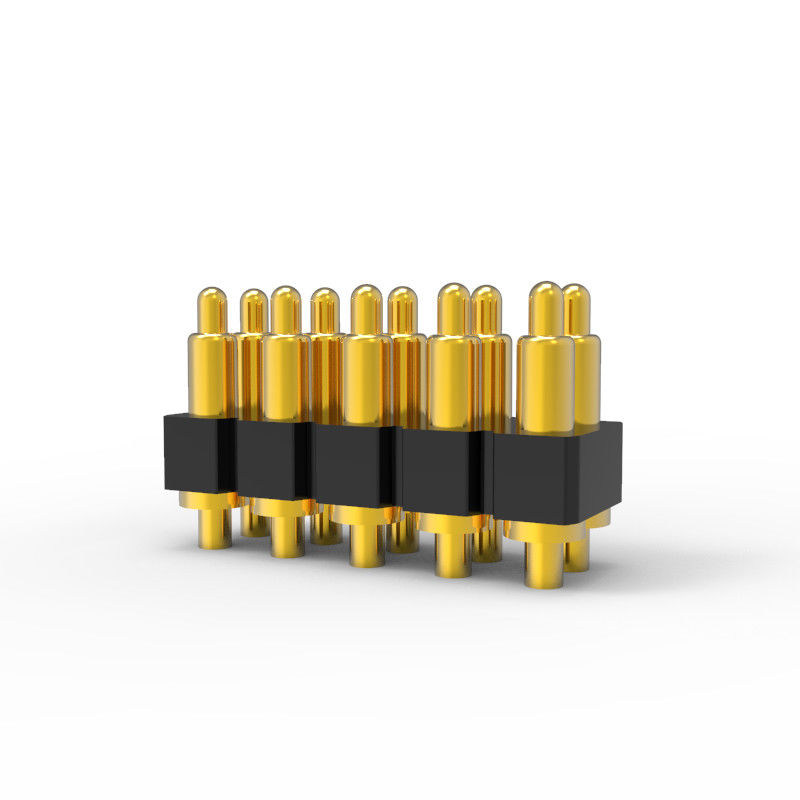

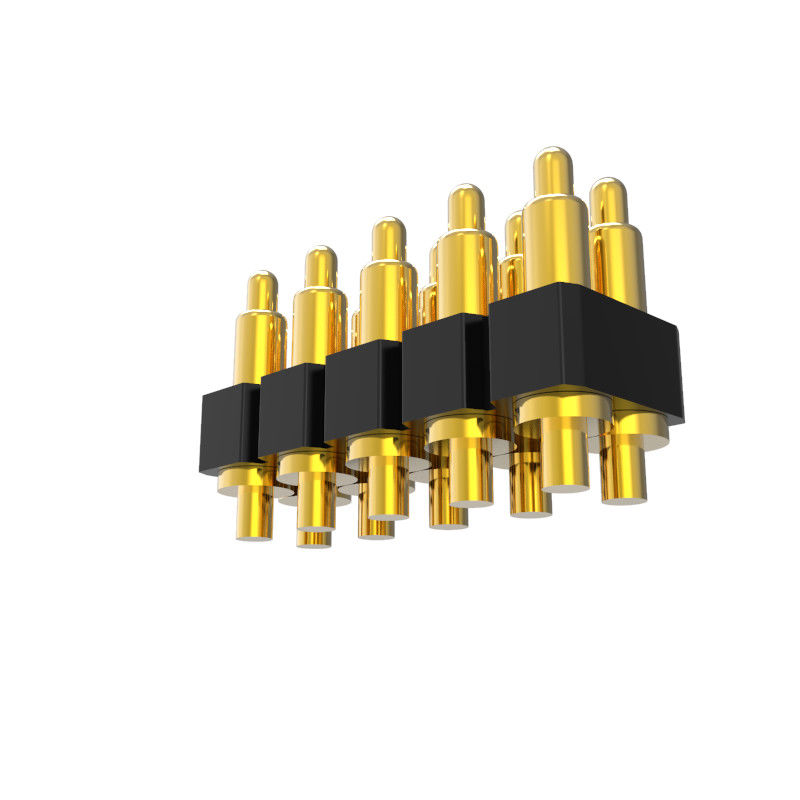

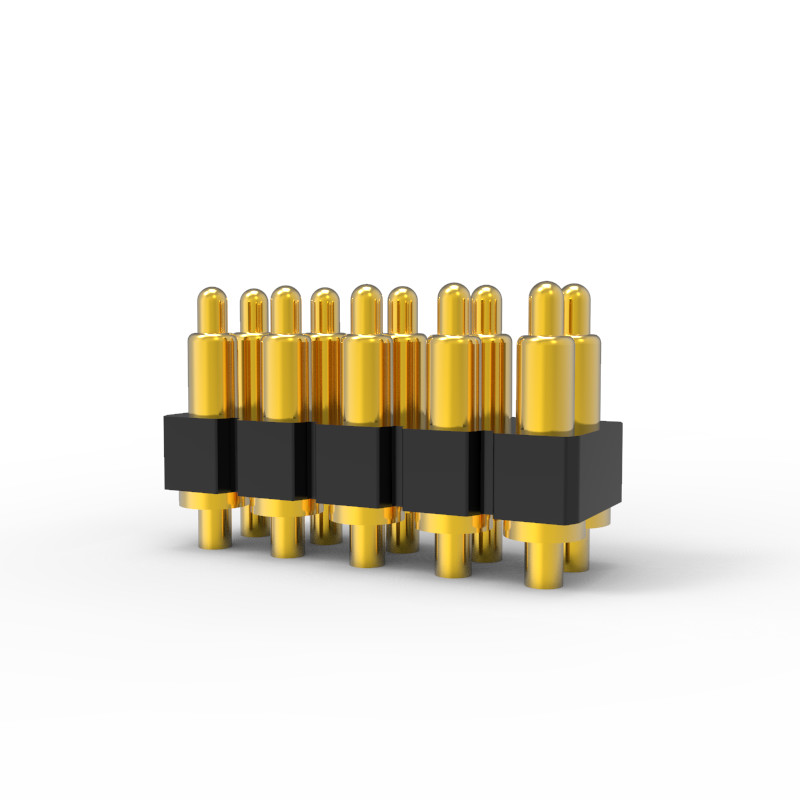

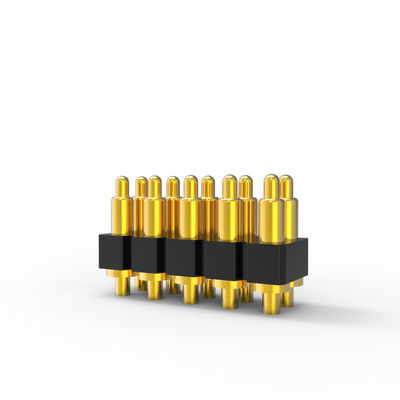

HTN housing DIP 2.0mm pitch male 10pin spring loaded pogo pin connector. We also provide professional pogo pin connector customized sevice
various products & solutions can be designed according to different customers' demands.UPE pogo pin internal structure according to customer requierments to match suitable one.
Pogo Pin is a precision connector used in mobile phones and other electronic products.
It is widely used in various electronic products and plays a role in signal transmission connection.
Its shape structure is divided into: flat bottom type, plug plate type, bending type, double needle shaft, thread type, welding wire type, side hole type, etc.
Plating selection: regular gold plating, nickel plating, etc. Current range: regular 0.5-3A, high current 5-30A.
Pogo Pin connector spacing can be divided into: 1.27mm,2.0mm,2.54mm,4.0mm,5.08mm, plastic materials commonly used HTN.
2.0mm pitch spring loaded connector parameter list:
|
Insulator
|
Black plastics(265℃) UL94 V-0
|
|
Plunger
|
Brass 5u” Au over 60~100u” Ni
|
|
Barrel
|
Brass 5u” Au over 60~100u” Ni
|
|
Spring
|
SUS surface treatment
|
|
Spring force:
|
70g+/-20g at 1.0mm working stroke
|
|
Life test
|
100,000 cycles
|
|
Rated current
|
3A Max.
|
|
Voltage
|
DC 12V
|
|
Contact resistance
|
50 milliohm Max
|
|
Salt spray test
|
48H
|
|
Certification
|
ROHS or REACH compliant product
|
|
Test
|
100% open and short test
|
2.0mm pitch standard 2pin-40pin Pogo pin connector with DIP
Advantages of UPE Pogo Pin Connector
Pogo Pin Connector, commonly known as spring pins or pogo pins, offer several advantages:
Reliability: UPE Pogo pins using CLIP Technology provide a consistent and reliable electrical connection, even in environments subject to vibration and mechanical shock.
Compact Design: Their small size allows them to fit into tight spaces, which is ideal for modern, compact electronic devices.
Flexibility: Pogo pins can adapt to surface variations, ensuring a stable connection even if the mating surfaces are not perfectly aligned.
Ease of Use: They are user-friendly, with straightforward installation and maintenance.
Durability: They are designed to withstand numerous cycles of connection and disconnection, making them highly durable
Our Advantage and your choice:
. UPE professional customized high current Pogo Pin with 15A-30A series, it has been mass produced.
. UPE developed 1.27mm,2.0mm 2.54mm pitch standard male and female 2pin-40pin Pogo pin connector with SMT / DIP / Right Angle / Solder Cup.
. Pogo Pin Life test up to 1000,000 cycles.
. All products can pass HF, RoHS REACH standard.
. 100% electrical test provided report before delivery the goods.
. Custom of various shapes is available, small structure and high current.
Pogo Pin type structure and description:
SMT: Good stability, the bottom of the Barrel is a flat bottom design, which is easy to solder on the PCB board.
DIP: There is a positioning pin at the tail of the Barrel. When welding with the PCB, no deviation will occur, good positioning effect and firm
welding.
Double Head: The design of the double head Pogo pin provides designers with more flexibility in the bi-directional board-to-board
connection ,the double head pin does not need to be welded.
Right Angle: The tail of the Pogo Pin is bent, providing designers with more choices in the use of space , the tail can also be soldered with wire
Solder Cup: Suitable for cable product, easy to weld with wire
Screw-type: The products with special specifications can meet the different needs of customers, and can be customized according to the needs
of customers.
