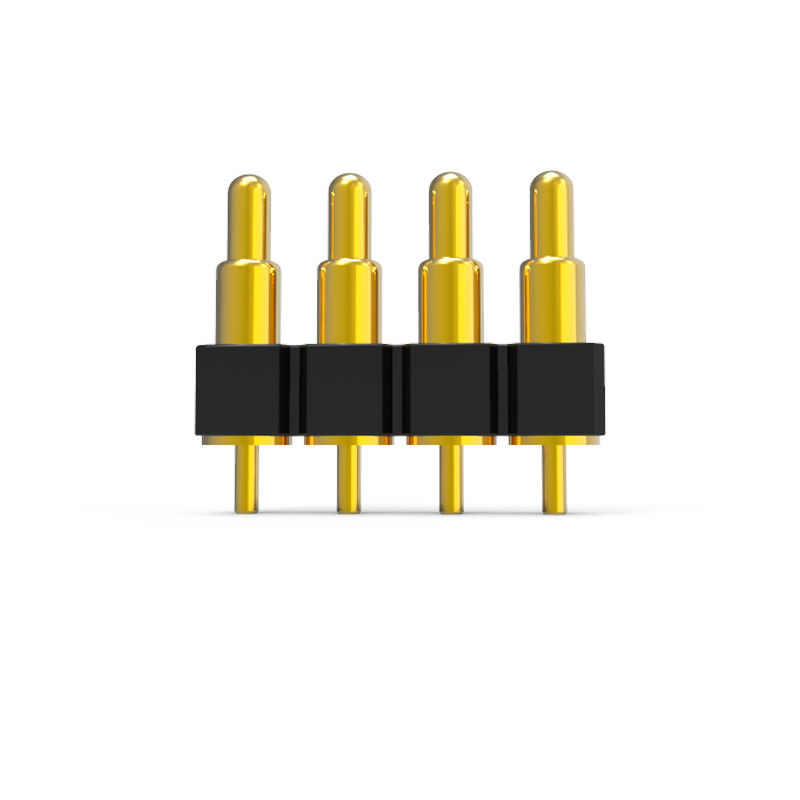

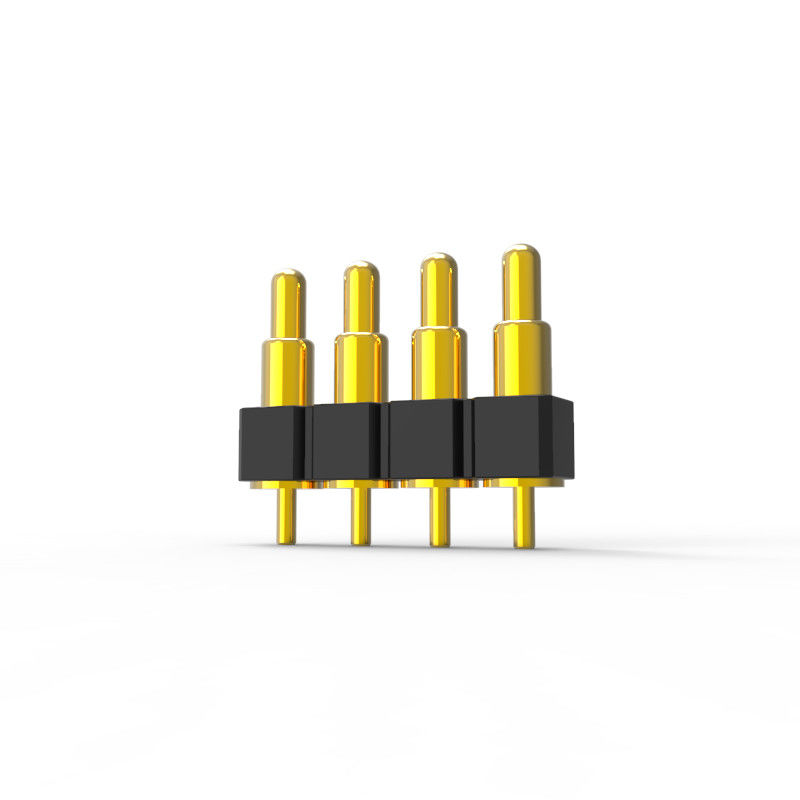

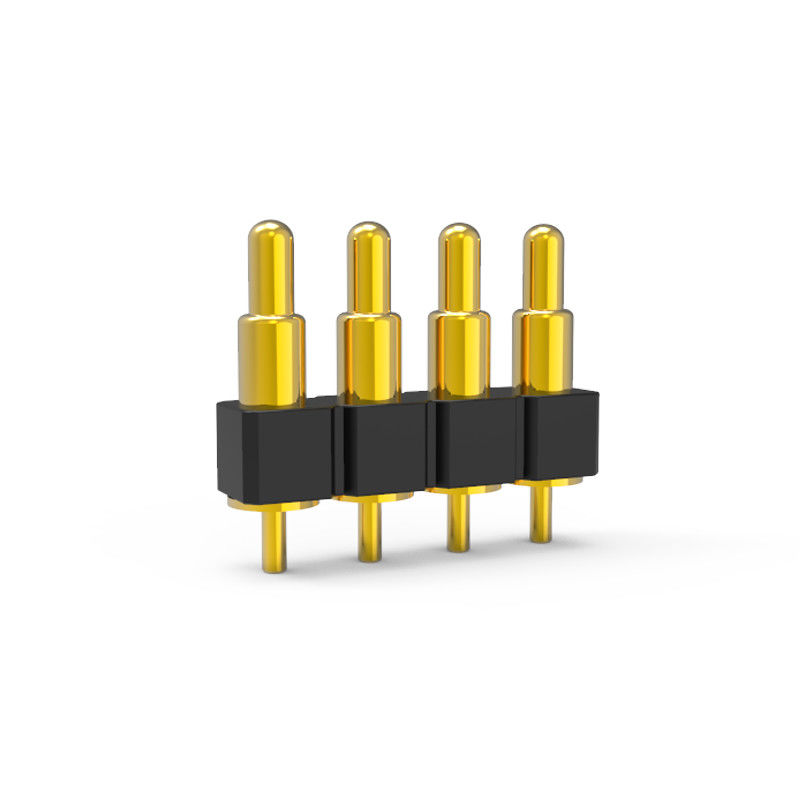

Single Row 2.54mm Pitch DIP 4pin Spring Loaded Connector For Health Care
Single row2.54mm pitch DIP 4pin spring loaded connector for health care. UPE also provide professional POGO PIN CONNECTOR customization service.
Advantages of UPE Pogo Pin Connector
Pogo Pin Connector, commonly known as spring pins or pogo pins, offer several advantages:
Reliability: UPE Pogo pins using CLIP Technology provide a consistent and reliable electrical connection, even in environments subject to vibration and mechanical shock.
Compact Design: Their small size allows them to fit into tight spaces, which is ideal for modern, compact electronic devices.
Flexibility: Pogo pins can adapt to surface variations, ensuring a stable connection even if the mating surfaces are not perfectly aligned.
Ease of Use: They are user-friendly, with straightforward installation and maintenance.
Durability: They are designed to withstand numerous cycles of connection and disconnection, making them highly durable
Our Advantage and your choice:
UPE professional customized high current Pogo Pin with 15A-30A series, it has been mass produced.
UPE developed 1.27mm,2.0mm 2.54mm pitch standard male and female 2pin-40pin Pogo pin connector with SMT / DIP / Right Angle / Solder Cup.
Pogo Pin Life test up to 1000,000 cycles.
All products can pass HF, RoHS REACH standard.
100% electrical test provided report before delivery the goods.
Custom of various shapes is available, small structure and high current.
Why do customers choose UPE?
1. Professional customization service
2. Fast sample production capability
3. Strict quality control system
4. Processing with imported components
5. High-precision test equipment
6. Reasonable cost control procedures
Pogo Pin Connector consists of 6 parts:Plunger,Barrel,Spring,Ceramic beads,housing,Cap
2.54mm pitch standard single row 2pin-20pin Pogo pin connector with DIP
Spring Loaded Connector Parameter List
|
Insulator
|
Black plastics(265℃) UL94 V-0
|
|
Plunger
|
Brass 5u” Au over 60~100u” Ni
|
|
Barrel
|
Brass 5u” Au over 60~100u” Ni
|
|
Spring
|
SUS surface treatment
|
|
Spring force:
|
80g+/-20g at working stroke
|
|
Life test
|
100,000 cycles
|
|
Rated current
|
3A Max.
|
|
Voltage
|
DC 12V
|
|
Contact resistance
|
50 milliohm Max
|
|
Salt spray test
|
48H
|
|
Certification
|
ROHS or REACH compliant product
|
|
Test
|
100% open and short test
|
2.54mm pitch standard PCB solder pad layout
Standard 2.54mm Pitch Pogo Pin Connector for customers reference:
Pogo Pin Connector Application Field:
