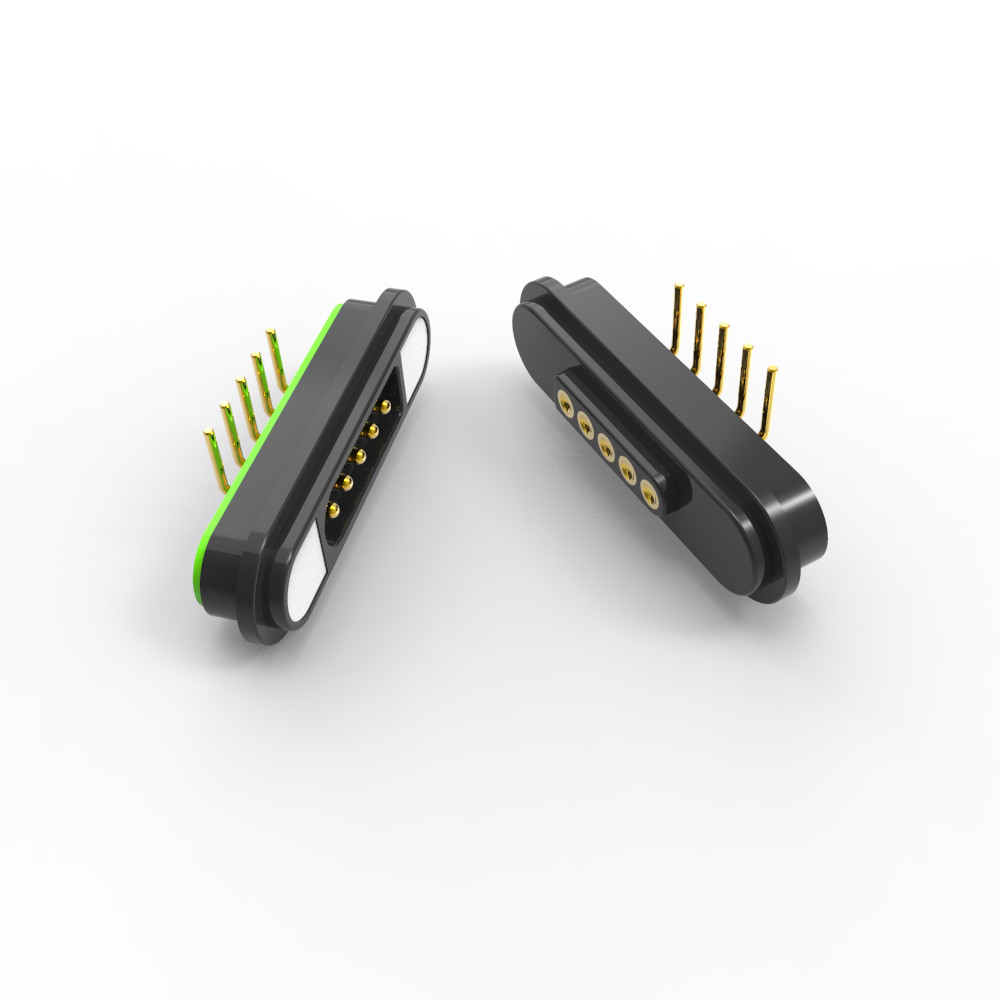

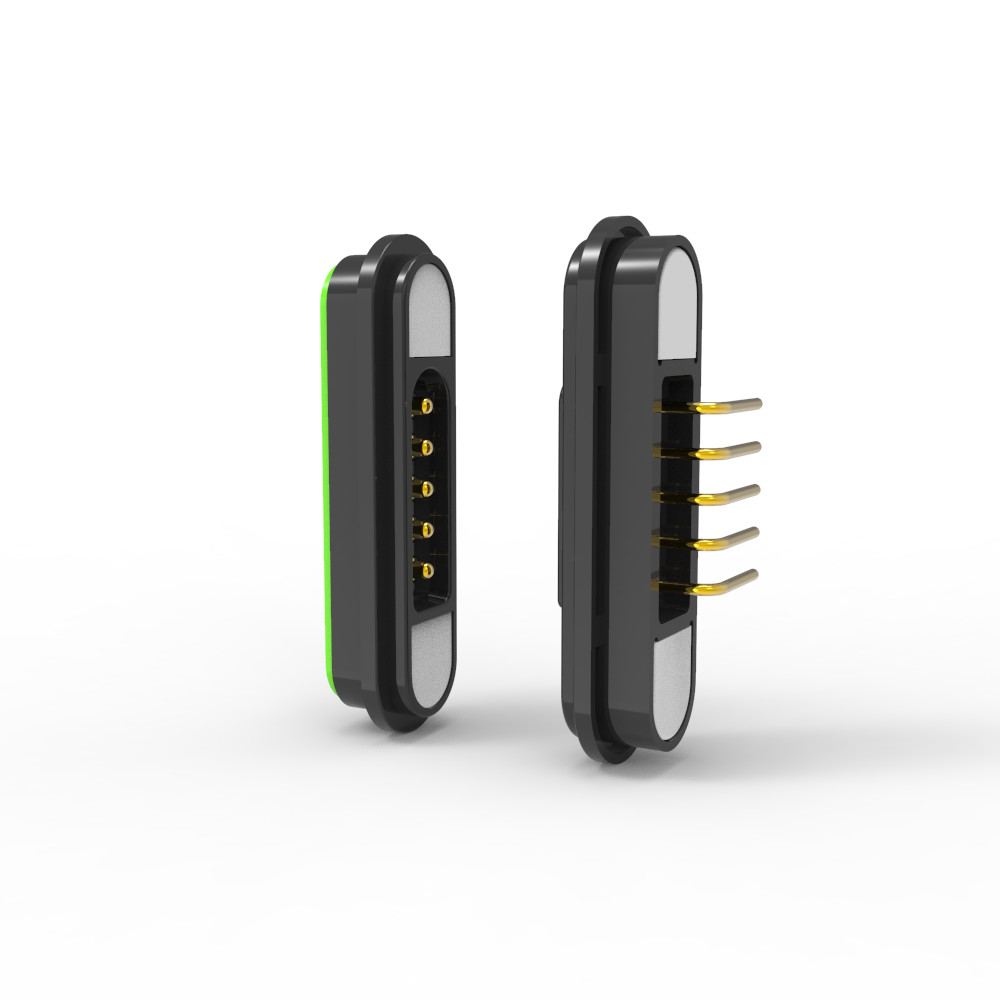

12V 5A Magnetic Connectors 5 Pin PCB Magnetic Connector With Right Angle Pogo Pin

Basic Information
Place of Origin: China
Brand Name: UPE
Certification: ISO9002
Model Number: VIC0700A / VIC0700
Document: VIC0700A.pdf
Minimum Order Quantity: 5000
Price: $1-$5
Packaging Details: PE
Delivery Time: 12-15 working days
Payment Terms: T/T
Supply Ability: 5KPCS/Day
Detail Information
Name: Magnetic Connectors Material: THN, Brass C3604, SUS304, NdFeB N52
Spring Force: 80g±20g Working Storke: 1.0mm
Volatge: 12V Current: 5A
Magnetic Force: 600g Mechanical Life: 50000 Cycle Min.
Contact Resistance: 50mΩ Max (PIN) Salt Spray Test: 48H
Color: Black, Yellow
Highlight:

12V Magnetic Connectors

,

5A Magnetic Connectors

,

5 Pin PCB Magnetic Connector


Product Description

DC12V 5A 5pin PCB magnetic connectors with right angle pogo pin.
The magnetic connectors  yellow metal needle part is gold-plated with brass surface;
The plastic material is HTN+30% UL94 V-0 black, which can withstand high temperatures.


The right angle pogo pin magnetic connectors magnet adopts is  high-performance permanent magnet neodymium iron boron,5pin magnetic connector is anti-short-circuit structure design,polarity and electrical direction are clearly identified.
UPE is a professional manufacturer of magnetic connectosr, also we have our own professional designers to meet any of your requirements.



Magnetic pogo pin connector application explaination (not limited to the following):
1. The PCB board can be soldered with a plug-in
2. Mold molding and injection molding



Advantages of Magnetic Connector:



1)Automatic adsorption connected experience; Easy operation;



2)Uses a magnetic interface to remove the device easier.



3)High life cycle. It supports 50,000-300,000 reattachment life times;



4)It is easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68);



5)Support a high current (3A-20A), faster recharge;



6)Excellent corrosion rating (48H-120H) meet the harsh environments;



8)Shape customized to meet with product shape matching, improve product selling point;



9)Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish



the direction( It is user-oriented and user-friendly)



10)Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);



11)Development time is short, low-cost mold for customization;



12)Provide a reliable high RF signal transmission. Our connector is USB 2.0



Why do customers choose UPE?



1. Professional customization service

2. Fast sample production capability

3. Strict quality control system

4. Processing with imported components

5. High-precision test equipment

6. Reasonable cost control procedures

7. Product environmental standards



5pin magnetic connectors parameter:

Pitch

2.2mm

Pogo pin

Brass

Housing

Black HTN+30%GF UL94 V-0

Spring force

8020g,at 1.0mm working storke.

Mechanical life

50000 cycle Min..

Current

5A

Voltage

DC 12V

Magnetic force

600g

Contact resistance

50mΩ Max (PIN).

High voltage test:

AC1000 V0.5mA 3SEC / DC 1000V 0.5mA 3 SEC.

Salt spray test

48H

Certification

ROHS or REACH compliant product

Test

100% open and short test

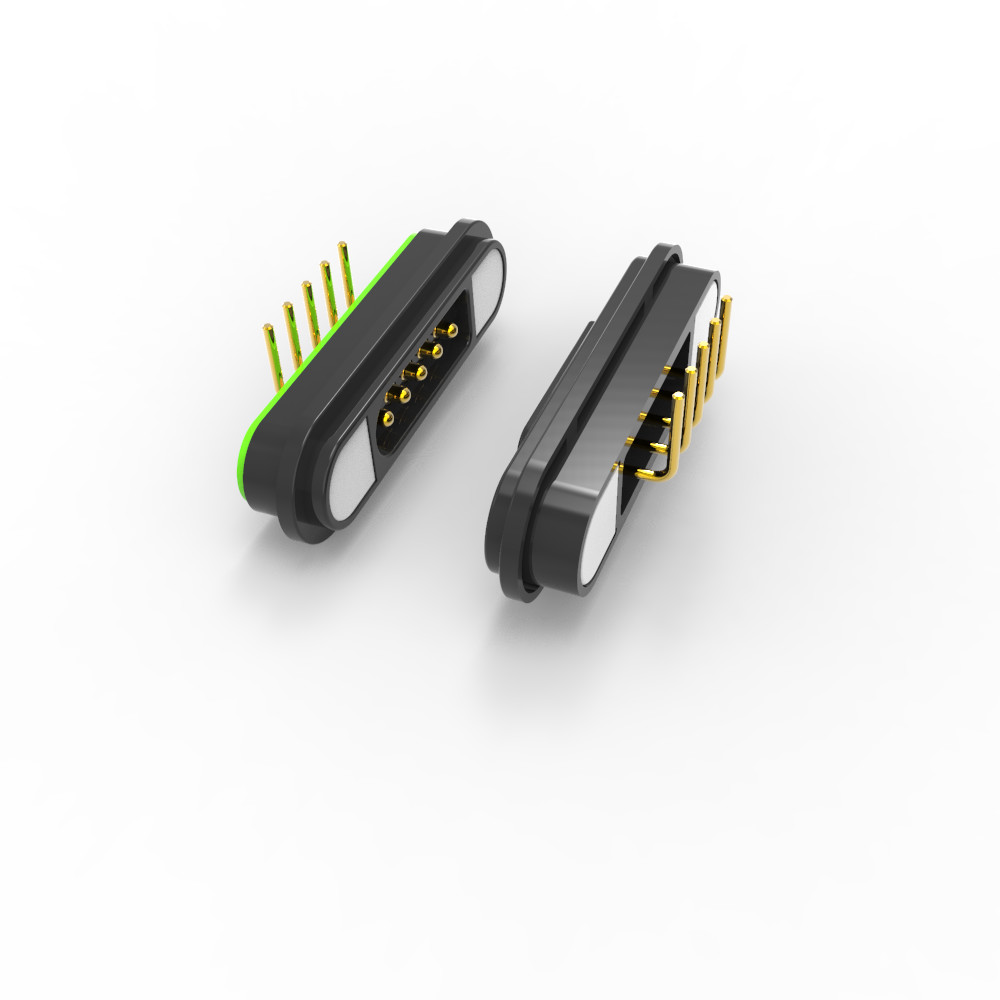

5pin male right angle magnetic connectors:

12V 5A Magnetic Connectors 5 Pin PCB Magnetic Connector With Right Angle Pogo Pin 0

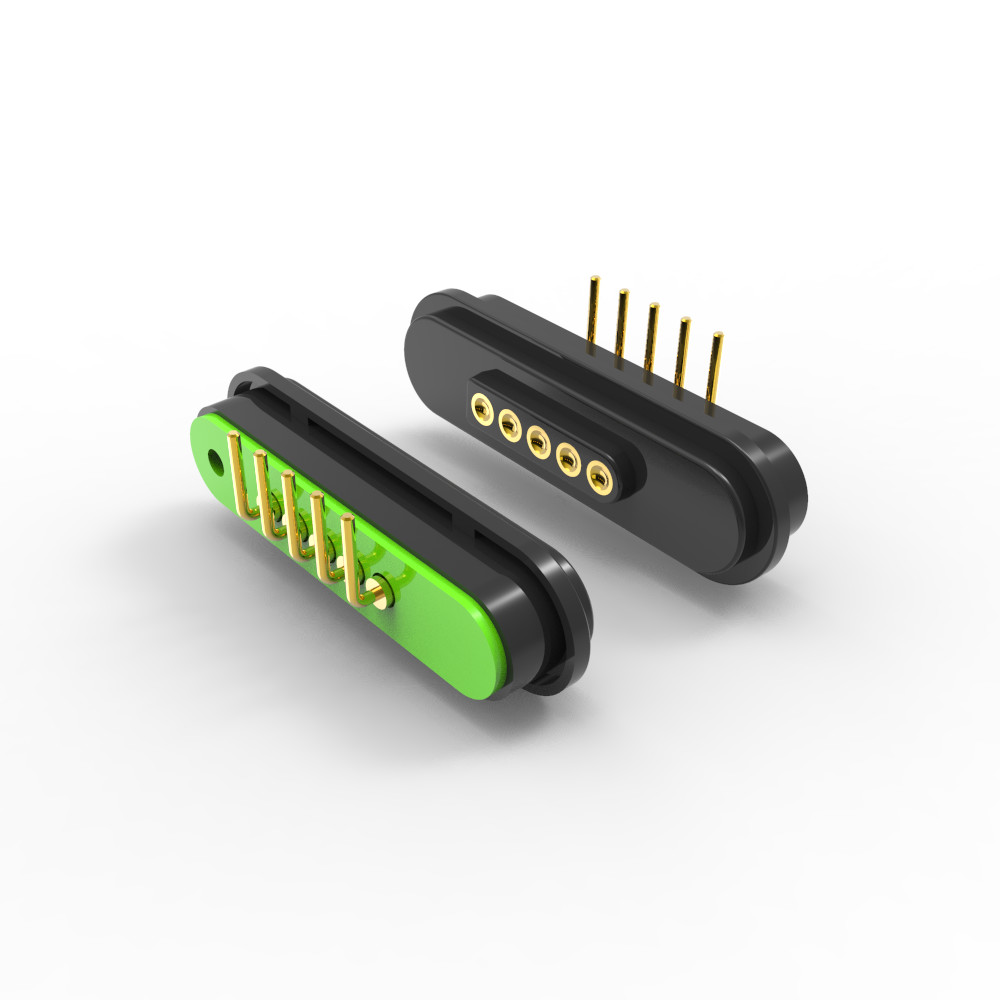

5pin female right angle magnetic connectors:

12V 5A Magnetic Connectors 5 Pin PCB Magnetic Connector With Right Angle Pogo Pin 1

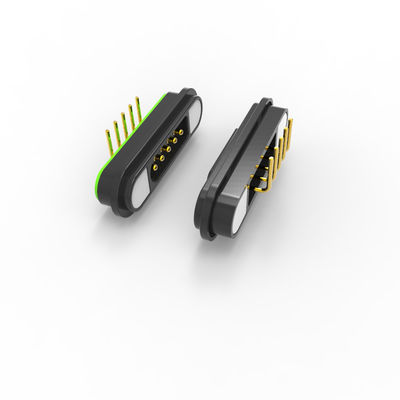

Magnetic connectors application:

12V 5A Magnetic Connectors 5 Pin PCB Magnetic Connector With Right Angle Pogo Pin 2
