600G Magnetic Connector 4 Pin 2.2mm Pitch Pogo Pin Magnetic Connector 5A

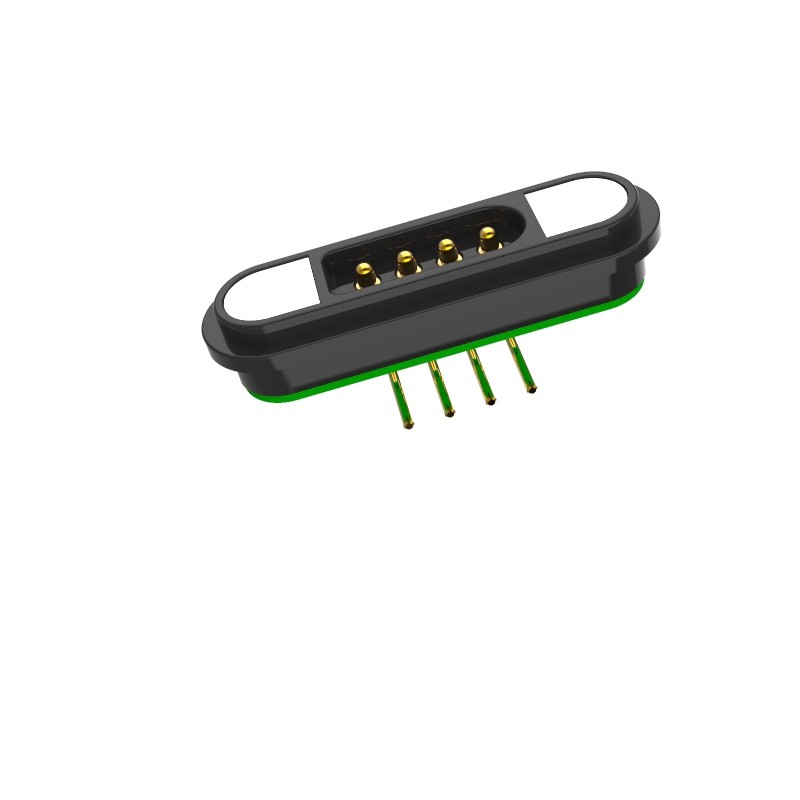

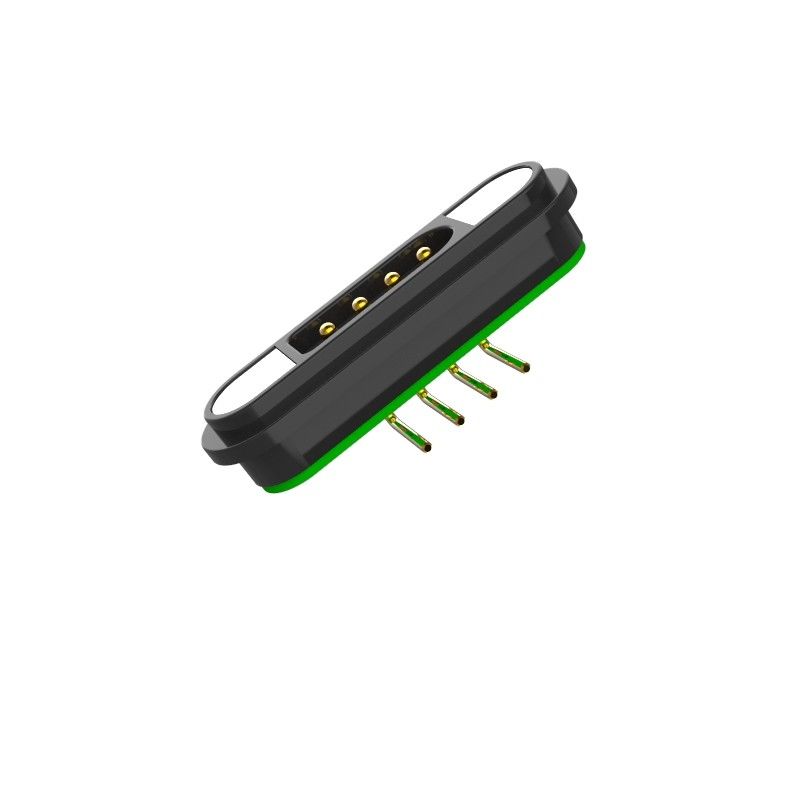

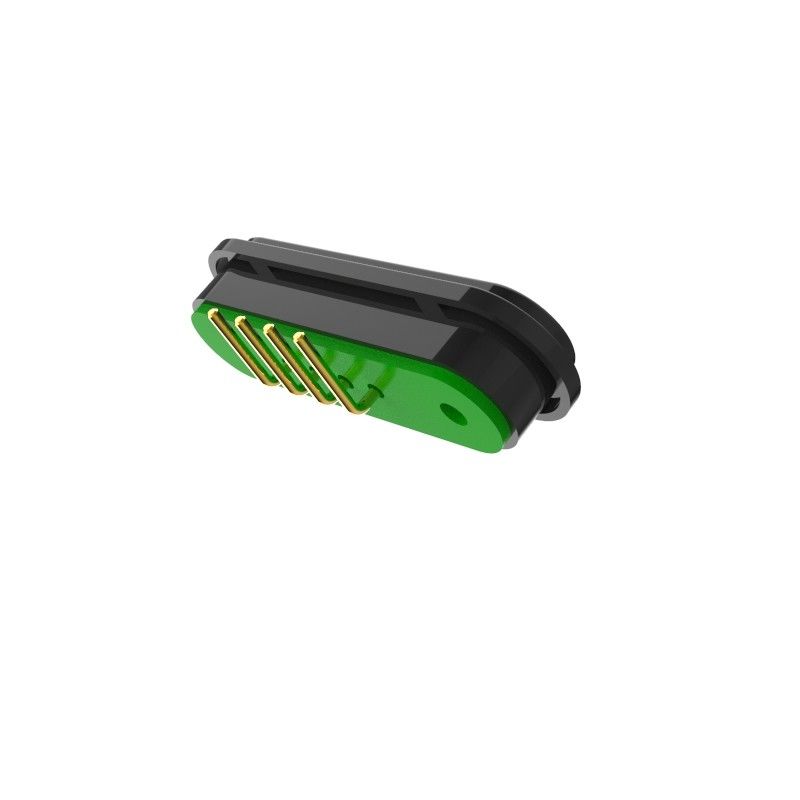

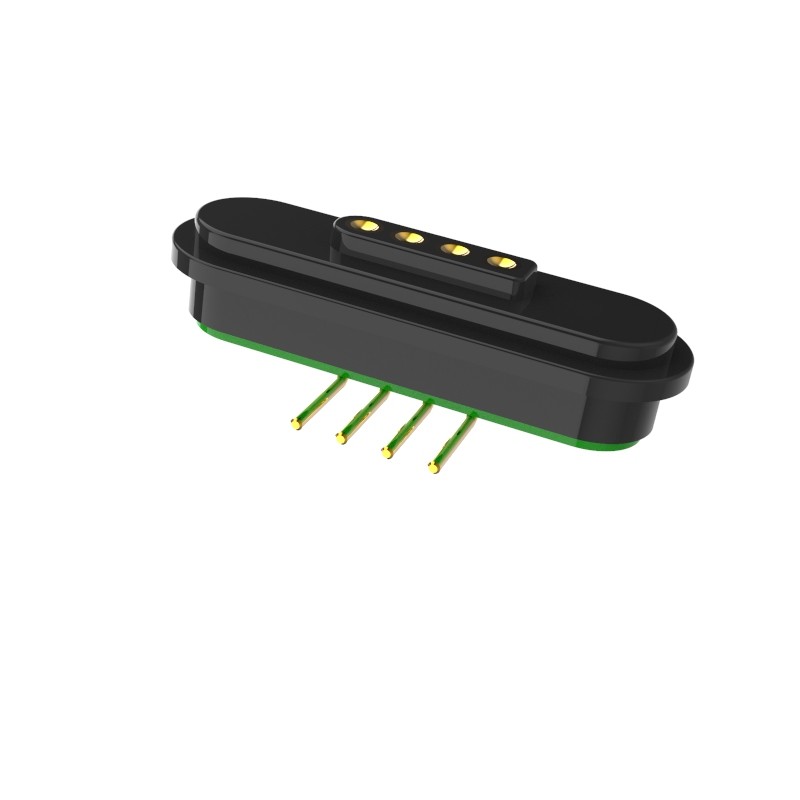

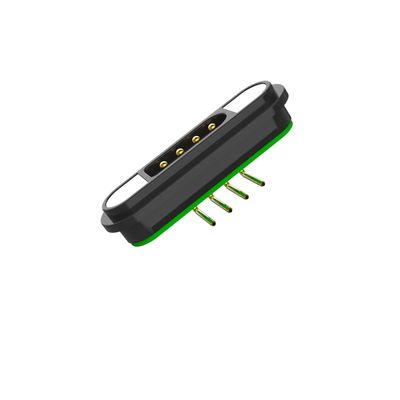

2.2mm pitch 4pin right angle male and female magnetic connectors with 5A.
The 4pin magnetic connector is anti-short-circuit structure design,polarity and electrical direction are clearly identified.
The right angle magnetic connectors magnet adopts is high-performance permanent magnet neodymium iron boron,the attraction force of the magnetic male and female docking is more than 600g.

Magnetic pogo pin connector application explaination (not limited to the following):
1. The PCB board can be soldered with a plug-in
2. Mold molding and injection molding

Advantages of Magnetic Connector:

1)Automatic adsorption connected experience; Easy operation;

2)Uses a magnetic interface to remove the device easier.

3)High life cycle. It supports 50,000-300,000 reattachment life times;

4)It is easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68);

5)Support a high current (3A-20A), faster recharge;

6)Excellent corrosion rating (48H-120H) meet the harsh environments；

8)Shape customized to meet with product shape matching, improve product selling point;

9)Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish

the direction( It is user-oriented and user-friendly)

10)Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);

11)Development time is short, low-cost mold for customization;

12)Provide a reliable high RF signal transmission. Our connector is USB 2.0

Why do customers choose UPE?

1. Professional customization service

2. Fast sample production capability

3. Strict quality control system

4. Processing with imported components

5. High-precision test equipment

6. Reasonable cost control procedures

7. Product environmental standards

4pin magnetic connectors parameter list:

4pin male right angle magnetic connectors:

4pin female right angle magnetic connectors:

Magnetic connectors application:
