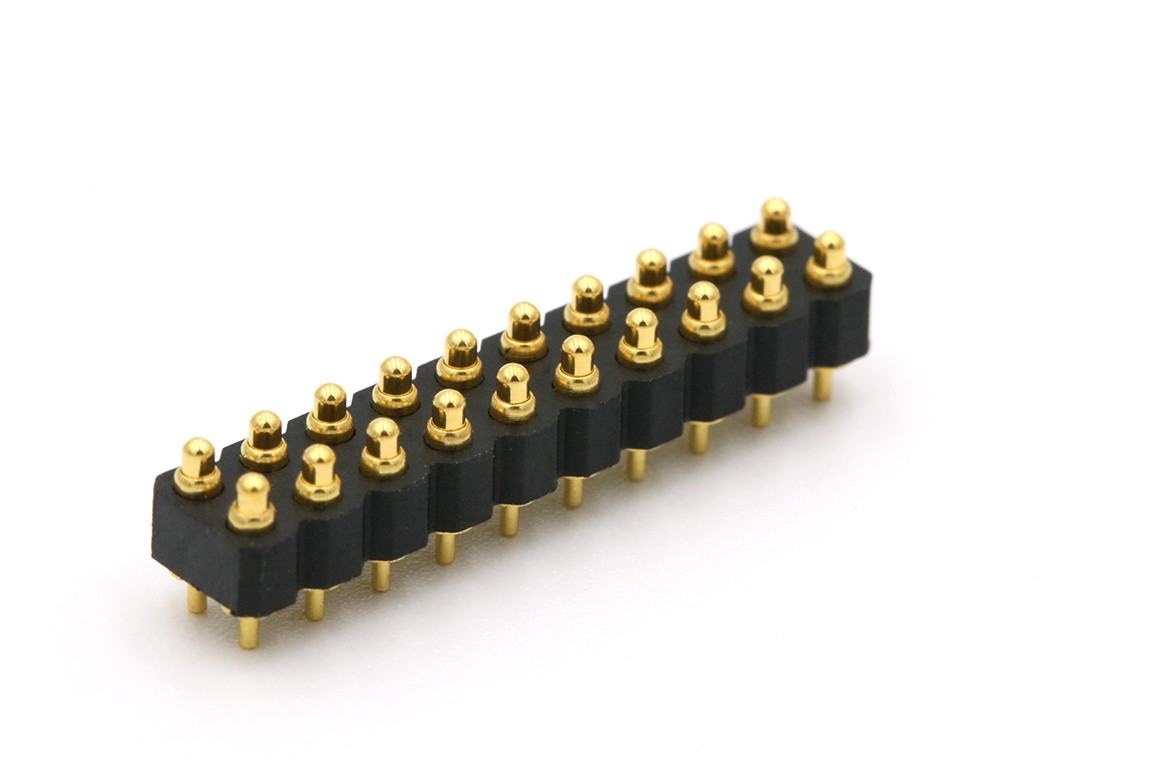

DIP Type Spring Loaded Connector 20 Pin Through Hole Connectors 2.0mm Pitch With 2.5mm Height Housing

Brand Name:	UPE
Model Number:	LBC0926(X)
MOQ:	5000
Price:	$0.8-$3
Packaging Details:	PE
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Document:

2.0mm Pitch Pogo Pin Connec...or.pdf

Name:

Spring Loaded Connector

Pitch:

2.0mm

Total Length:

4.1mm/4.5mm/5.0mm/5.5mm/6.0mm/6.5mm/7.0mm/7.5mm/8.0mm

Type:

DIP

Material:

C3604, SUS304,THN

Spring Force:

70g+/-20g

Current:

Volatge:

DC12V

Test Life:

100,000 Cycles

Contact Resistance:

50 Milliohm Max.

Salt Spray Test:

48H

Product Operating Temperature:

260℃±5℃ 20s±2s

Product Use Environment::

80℃~130℃(Lab Testing)

Supply Ability:

5KPCS/Day

Highlight:

DIP Type Spring Loaded Connector

20 Pin Through Hole Connectors

Through Hole Connectors 2.0mm Pitch

Product Description

2.0mm pitch 20pin through hole pogo pin connector with 2.5mm height housing.

Brass gold plating double row 2*10pin DIP spring loaded connector,UPE developed 2.0mm pitch standard male and female 2pin-40pin Pogo pin connector with SMT / DIP / Right Angle / Solder Cup.

Pogo Pin Connector consists of 6 parts:Plunger,Barrel,Spring,Ceramic beads,housing,Cap

DIP Type Spring Loaded Connector 20 Pin Through Hole Connectors 2.0mm Pitch With 2.5mm Height Housing 0

2.0mm pitch spring loaded connector parameter list:

Insulator	Black plastics(265℃) UL94 V-0
Plunger	Brass 5u” Au over 60~100u” Ni
Barrel	Brass 5u” Au over 60~100u” Ni
Spring	SUS surface treatment
Spring force:	70g+/-20g at 1.0mm working stroke
Life test	100,000 cycles
Rated current	3A Max.
Voltage	DC 12V
Contact resistance	50 milliohm Max
Salt spray test	48H
Certification	ROHS or REACH compliant product
Test	100% open and short test

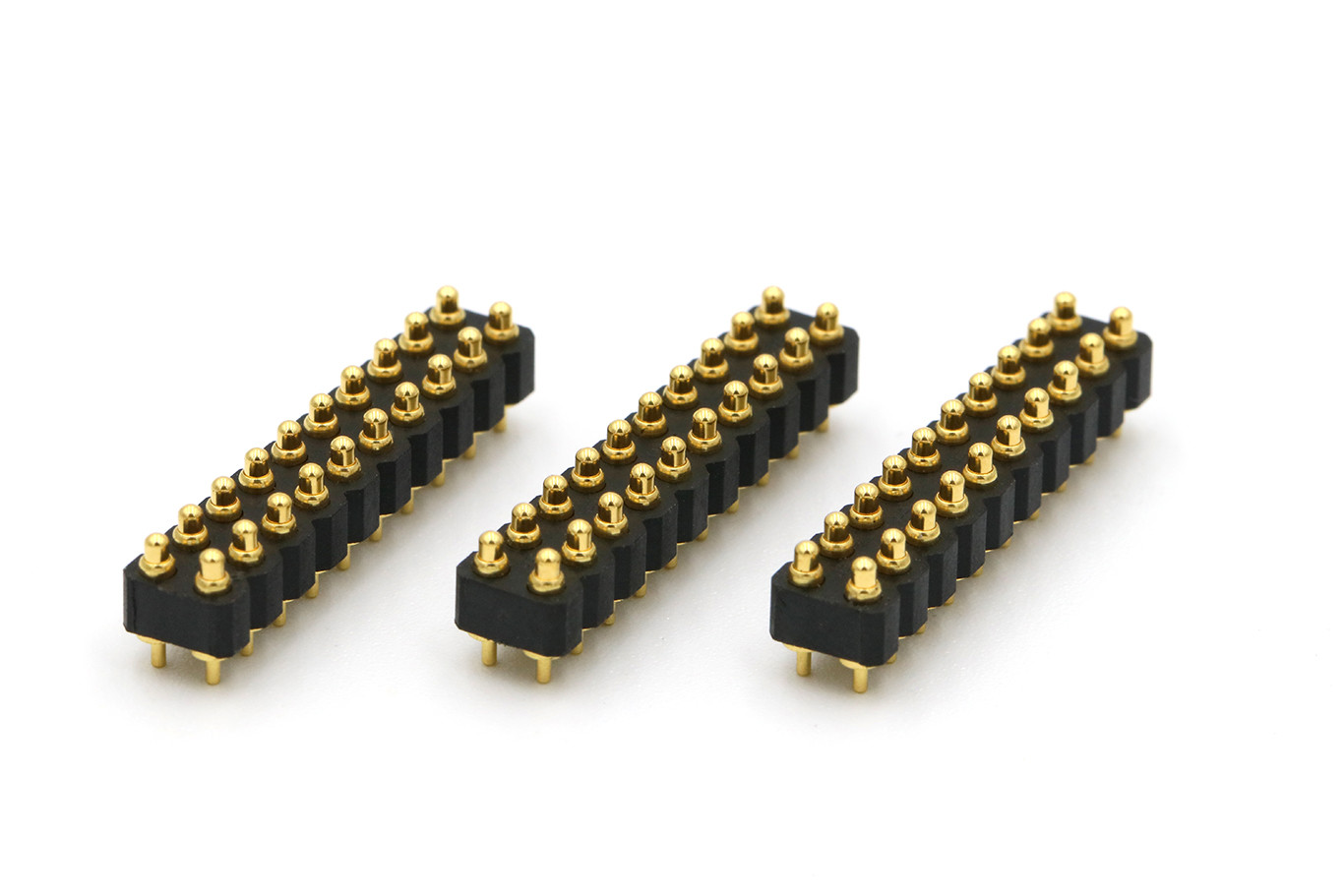

2.0mm pitch standard 2pin-40pin Pogo pin connector with DIP

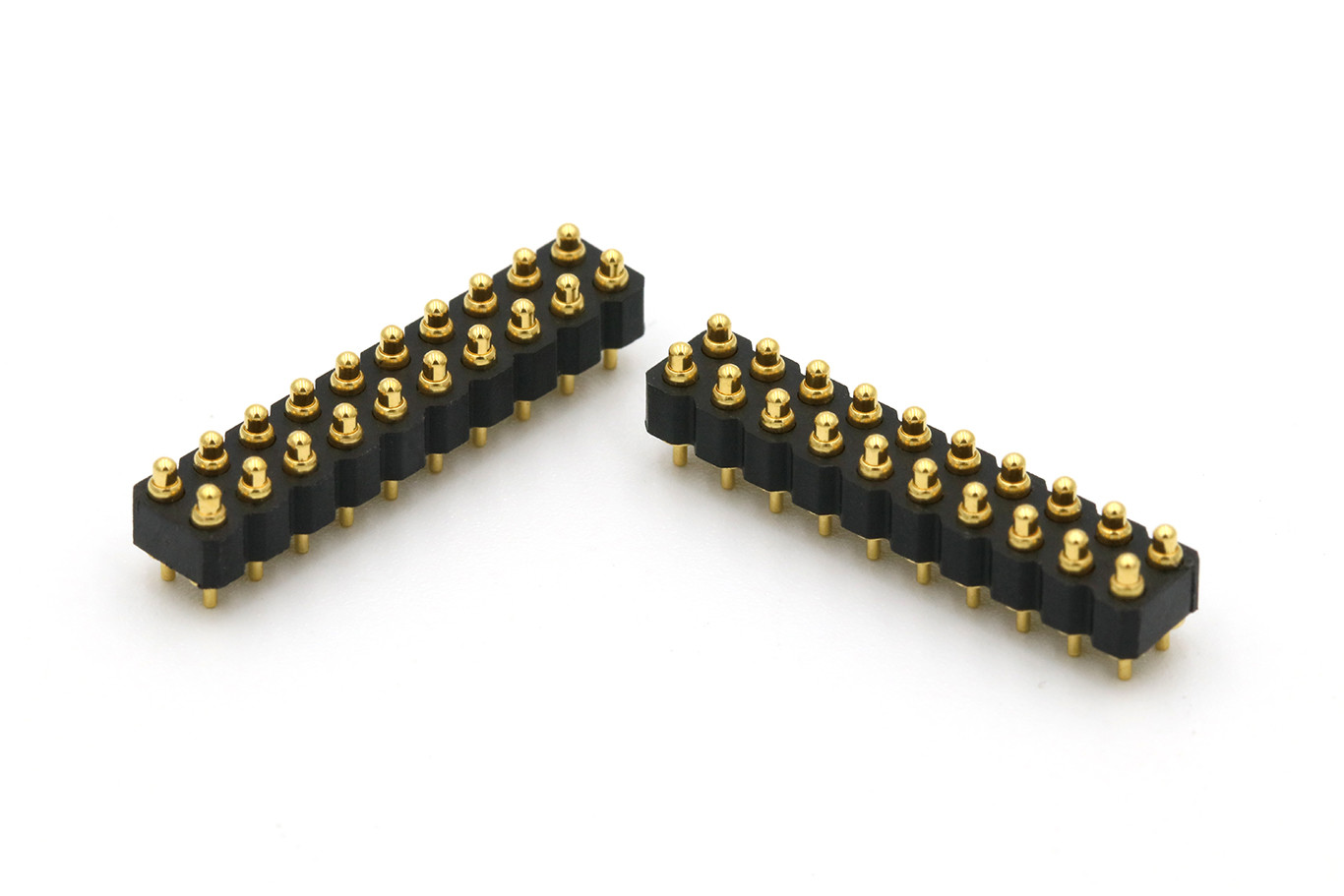

DIP Type Spring Loaded Connector 20 Pin Through Hole Connectors 2.0mm Pitch With 2.5mm Height Housing 1

DIP Type Spring Loaded Connector 20 Pin Through Hole Connectors 2.0mm Pitch With 2.5mm Height Housing 2

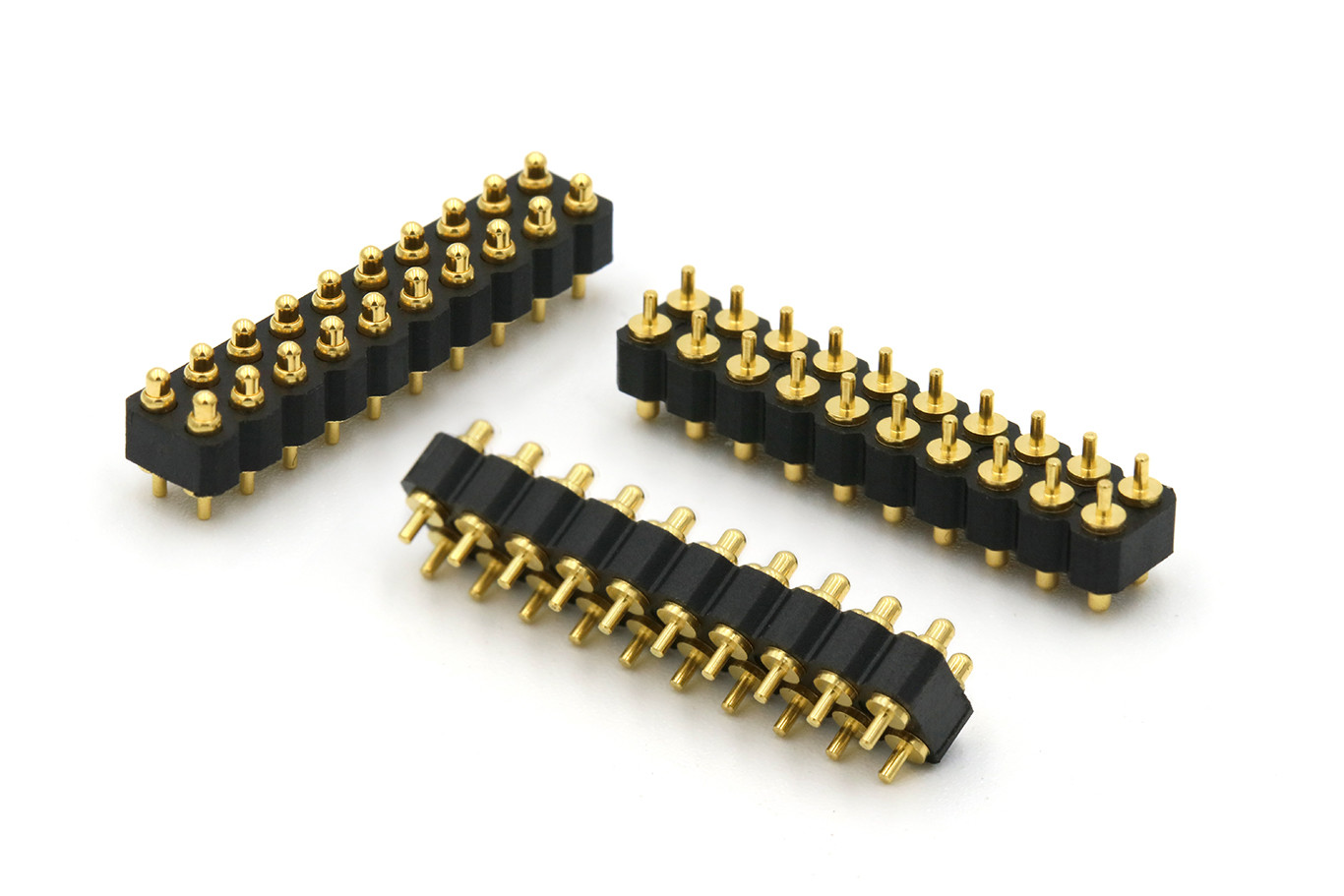

Standard 2.0mm Pitch Pogo Pin Connector for customers reference:

DIP Type Spring Loaded Connector 20 Pin Through Hole Connectors 2.0mm Pitch With 2.5mm Height Housing 3

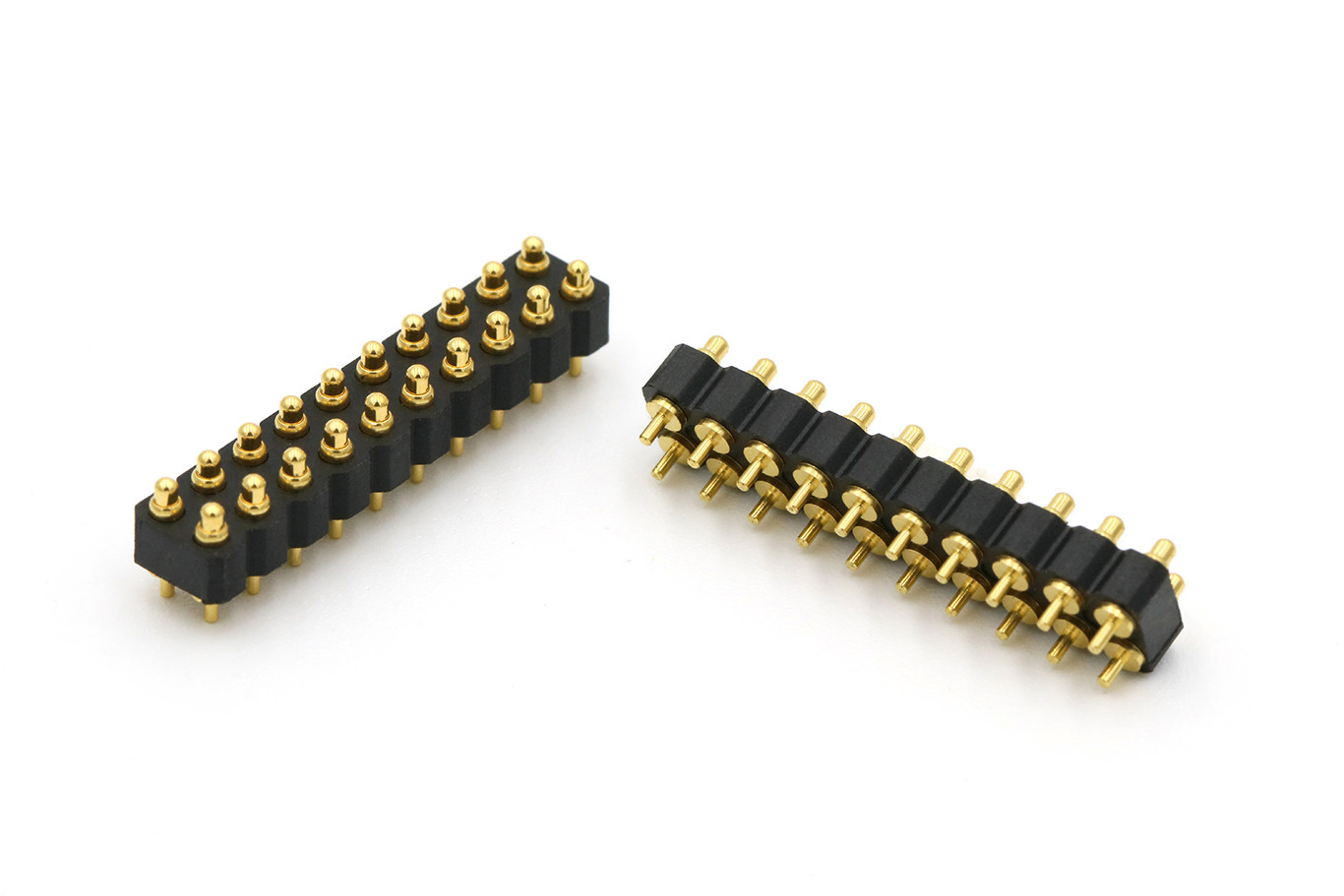

2.0mm pitch 20pin through hole pogo pin connector application field:

DIP Type Spring Loaded Connector 20 Pin Through Hole Connectors 2.0mm Pitch With 2.5mm Height Housing 4

Our Advantage and your choice:

.UPE professional customized high current Pogo Pin with 15A-30A series, it has been mass produced.

.UPE developed 2.0mm and 2.54mm pitch standard male and female 2pin-40pin Pogo pin connector with SMT / DIP / Right Angle / Solder Cup.

.Pogo Pin Life test up to 1000,000 cycles.

.All products can pass HF, RoHS REACH standard.

.100% electrical test provided report before delivery the goods.

.Custom of various shapes is available, small structure and high current.

Why do customers choose UPE?

1. Professional customization service

2. Fast sample production capability

3. Strict quality control system

4. Processing with imported components

5. High-precision test equipment

6. Reasonable cost control procedures
